Actuadores Neumáticos

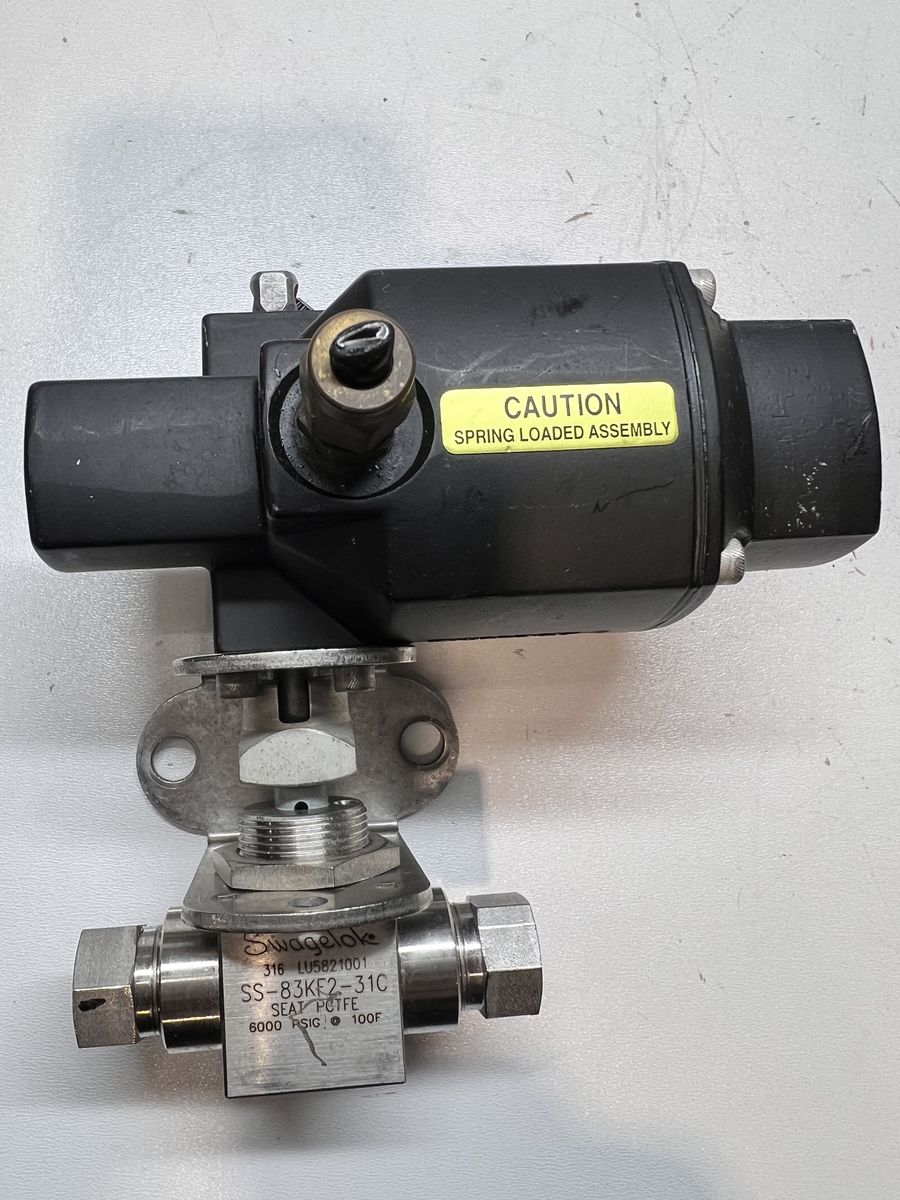

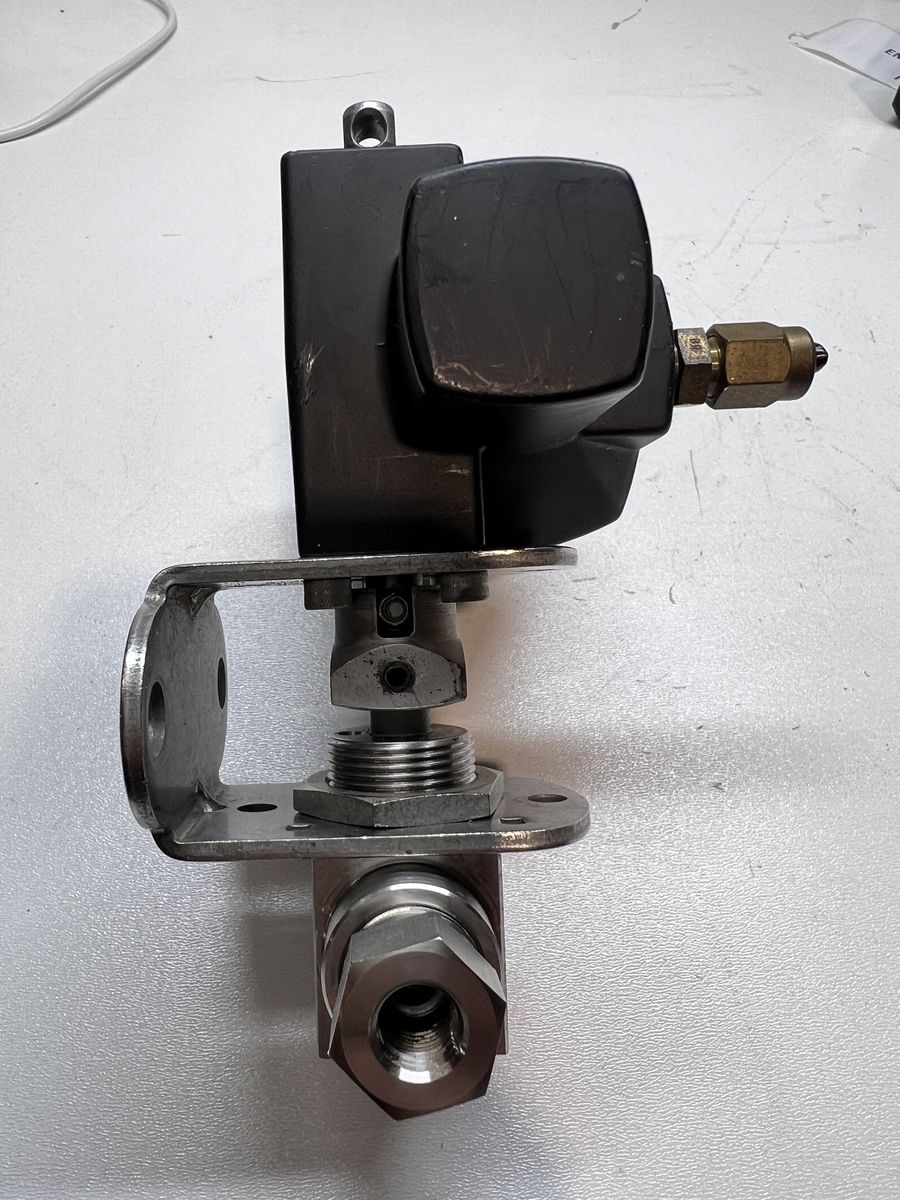

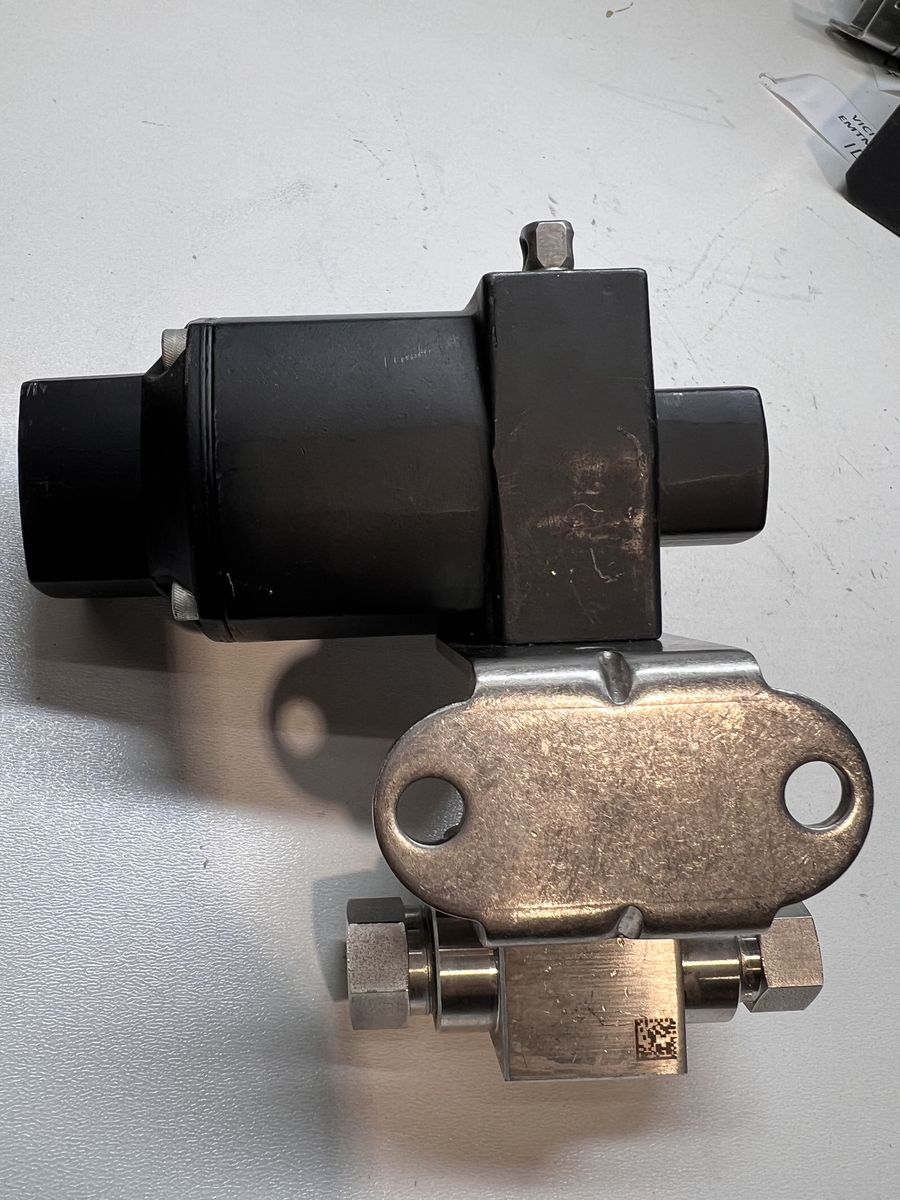

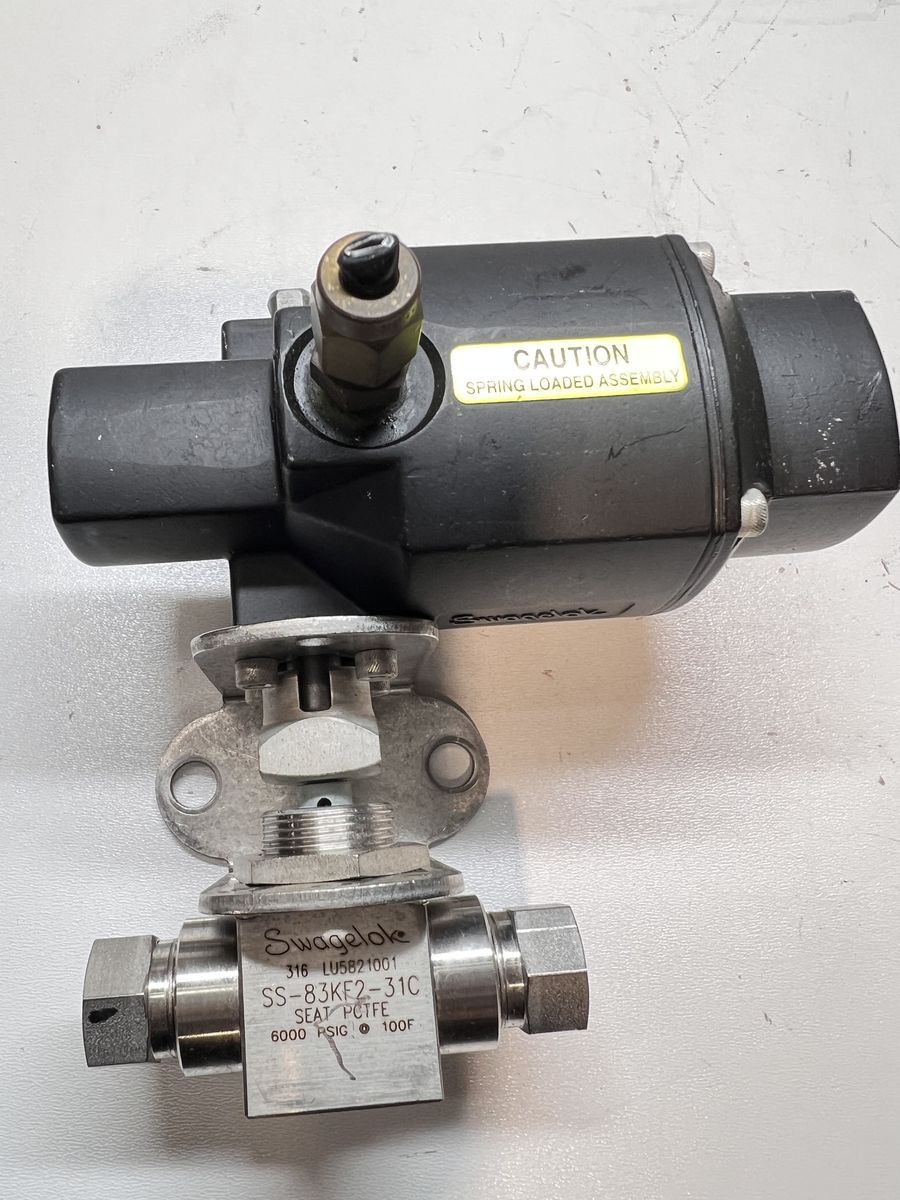

Swagelok 131SR / SS-83KF2-31C
SKU: 4010
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

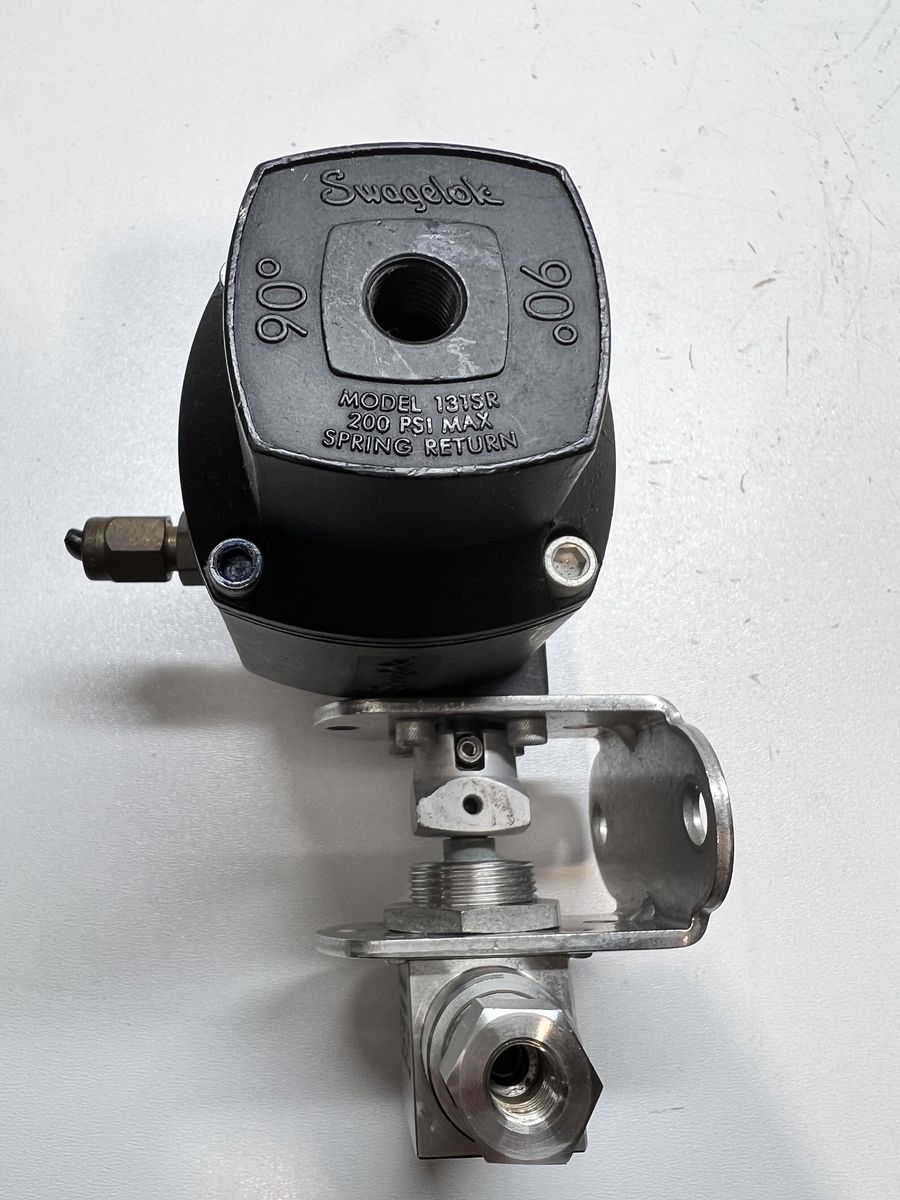

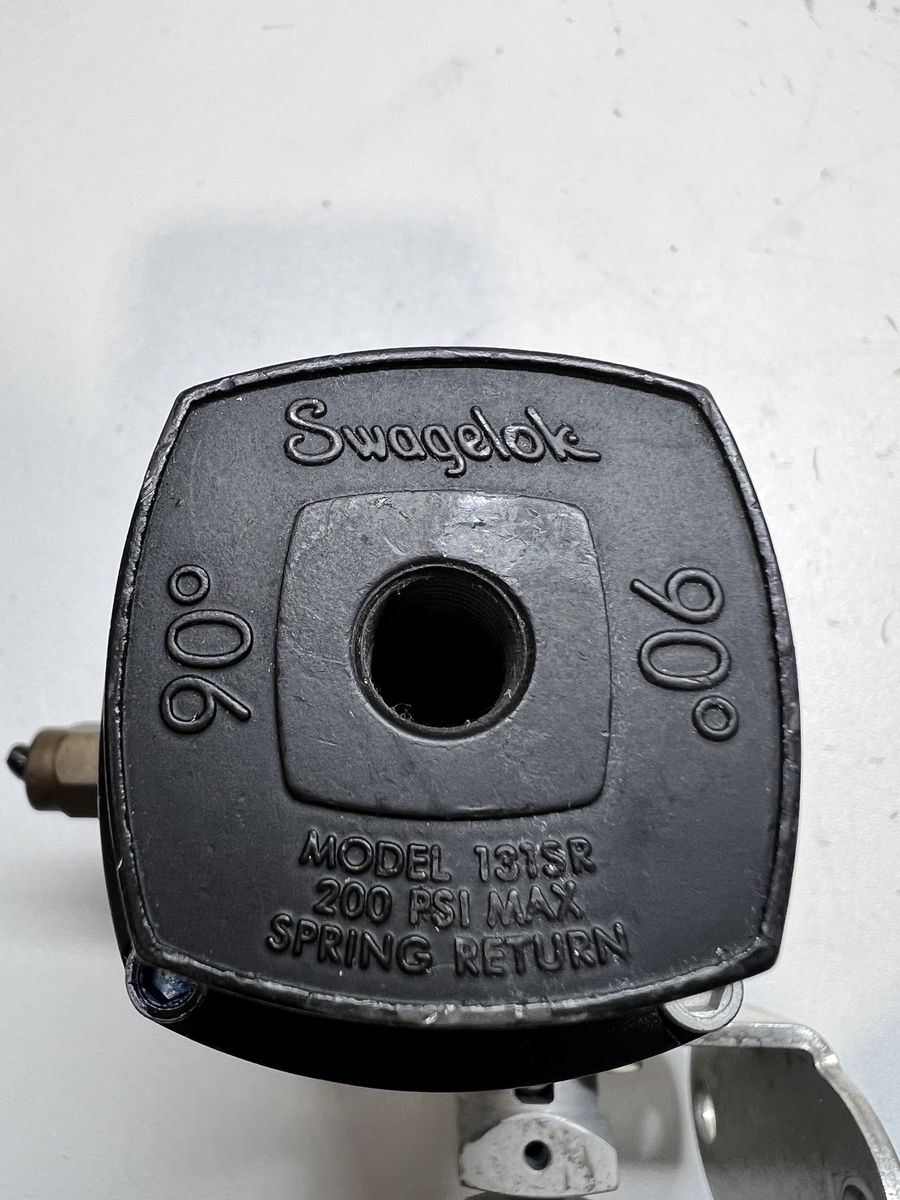

MS-131-SR — 131 Series Pneumatic Spring Return Actuator
| Attribute | Value |
|---|---|
| Actuation Range | 90° Actuation |
| Actuator Air Displacement Volume in.3 (cm3) | 1.5 (24.6) |
| Actuator Operation Mode | Spring Return |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| For Series | 131 Series |
| eClass (4.1) | 27220202 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 27229102 |
| eClass (6.1) | 27229102 |
| eClass (10.1) | 27229102 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141616 |
| UNSPSC (11.0501) | 40141616 |
| UNSPSC (13.0601) | 40141616 |
| UNSPSC (15.1) | 40141616 |
| UNSPSC (17.1001) | 40183109 |

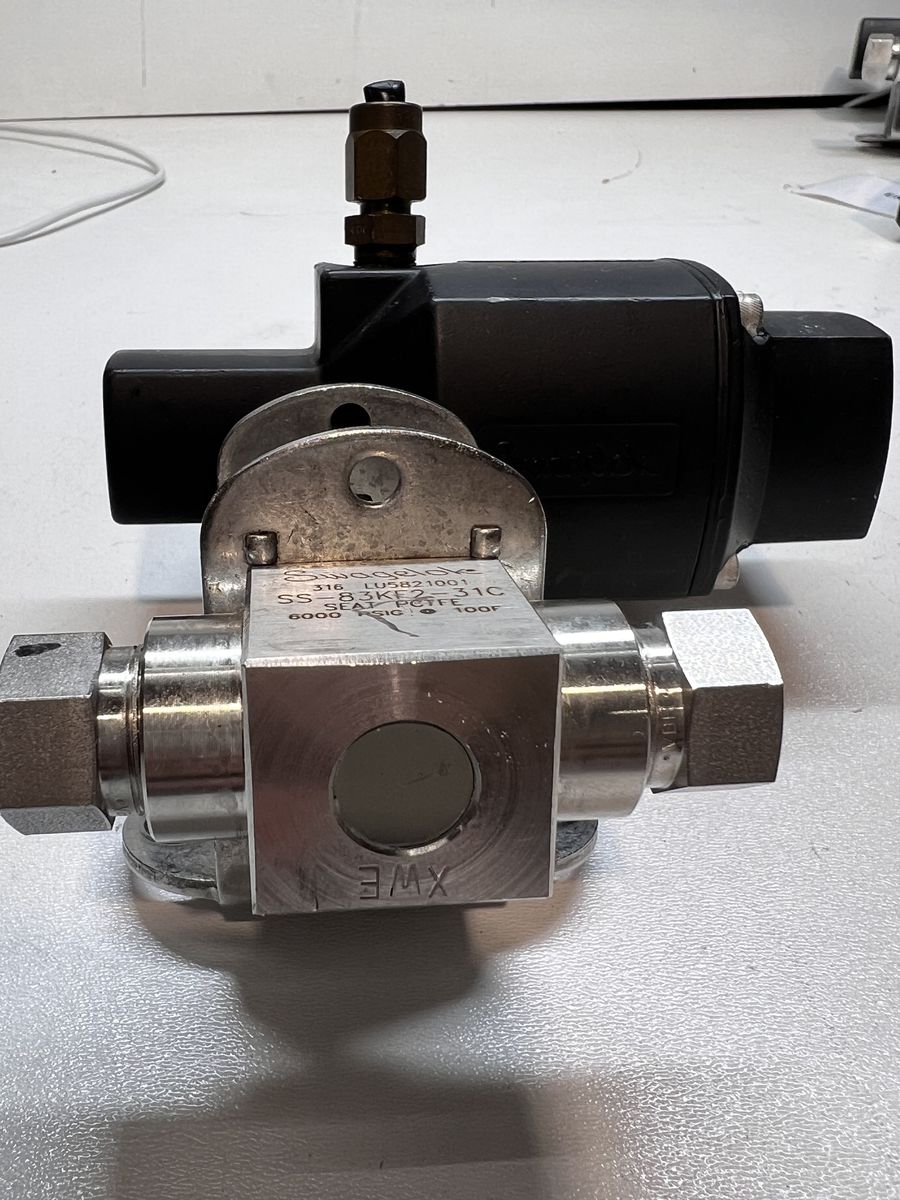

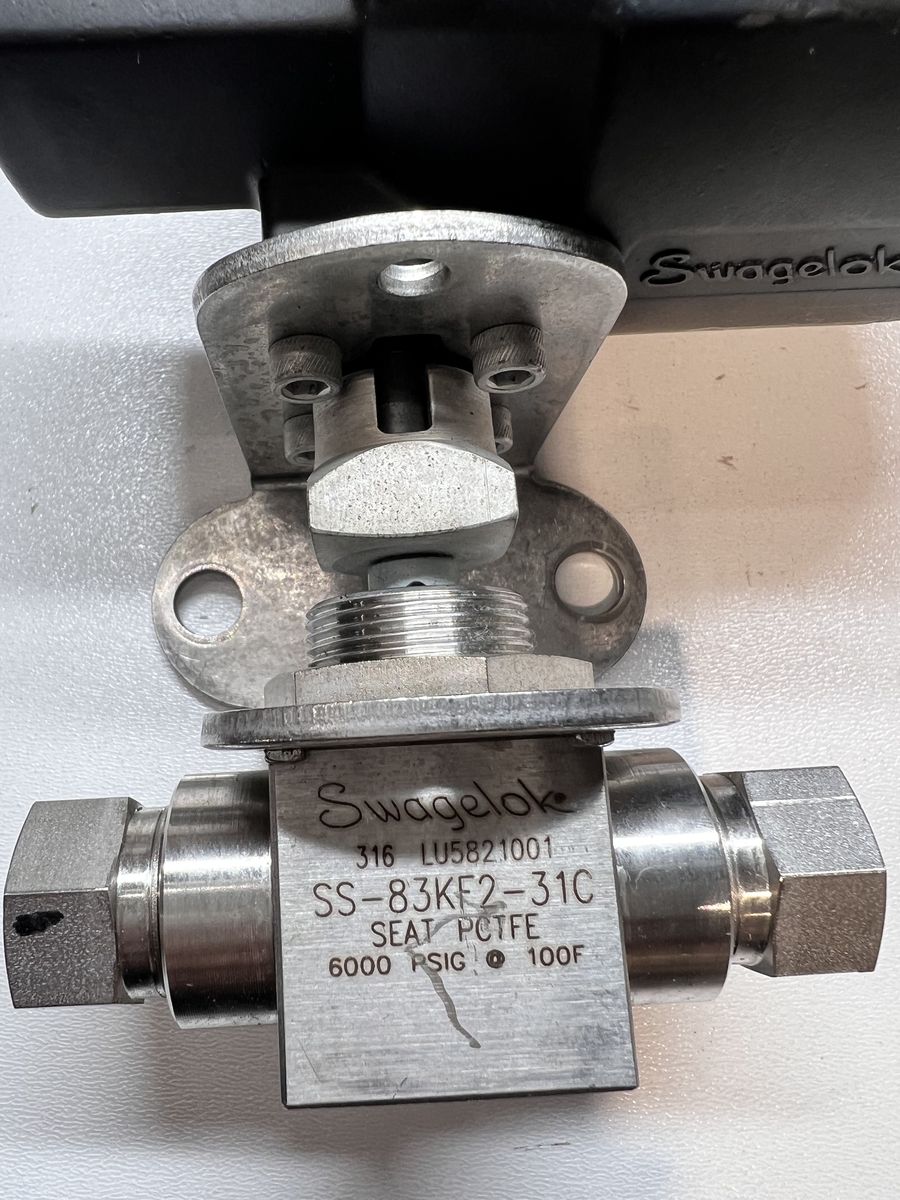

SS-83KF2 — Stainless Steel 3-Piece High Pressure Ball Valve, PCTFE Seats, 1/8 in. FNPT
| Attribute | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/8 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/8 in. |
| Connection 2 Type | Female NPT |
| CV Maximum | 1.2 |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Phenolic Handle |
| Low Emissions Certified | Yes |
| Orifice | 0.187 in /4.7 mm |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seat Material | PCTFE |
| Service Class | General |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37010401 |
| eClass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40183106 |
×
![]()
