Interruptores Automáticos
ABB S201M-NA B10
SKU: 7033
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

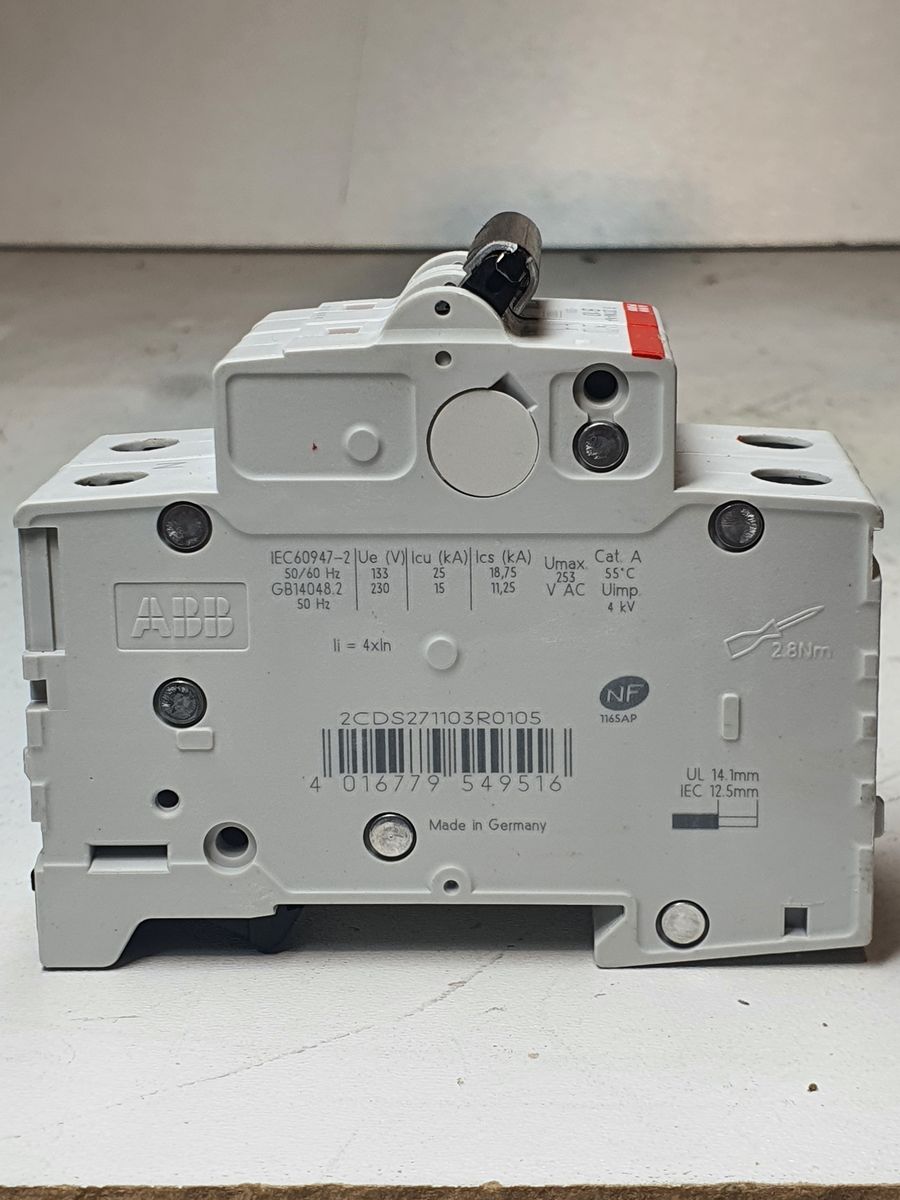

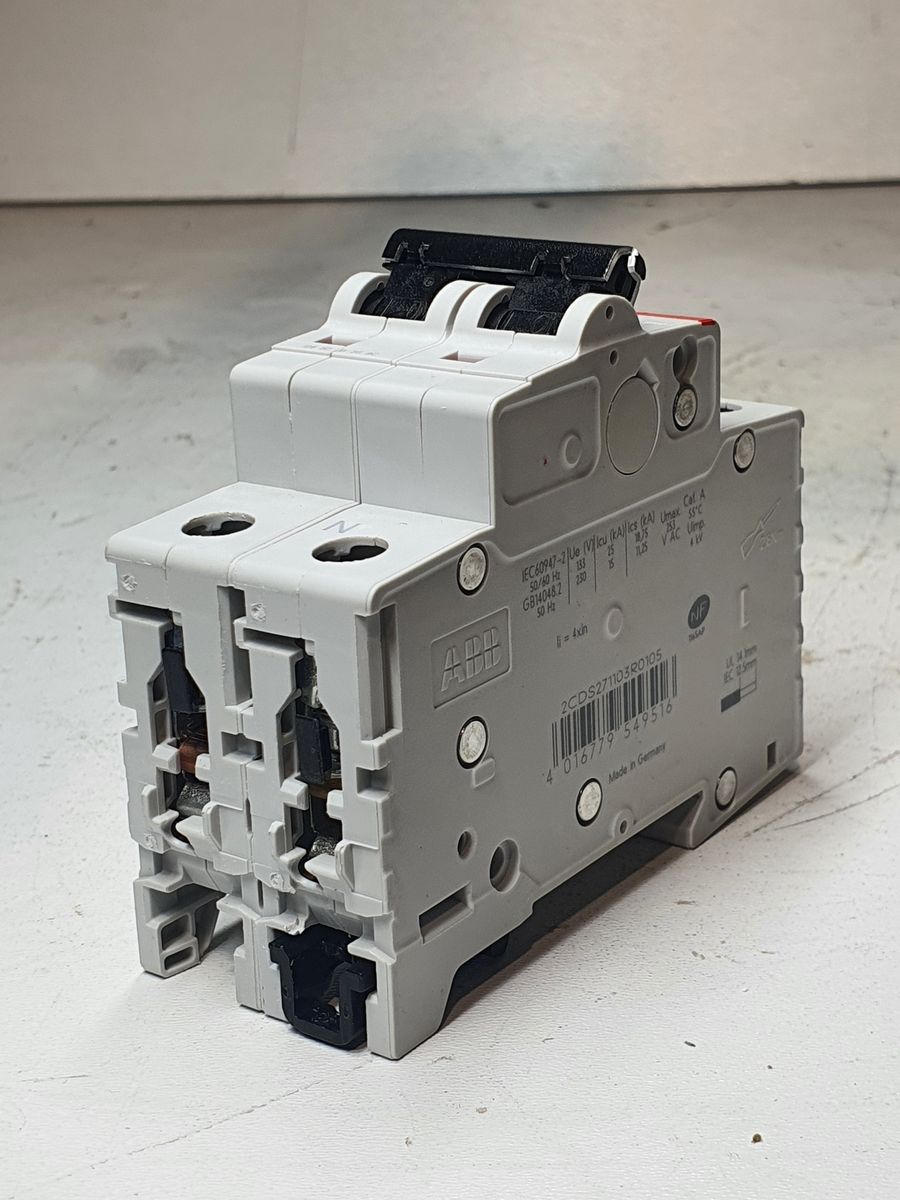

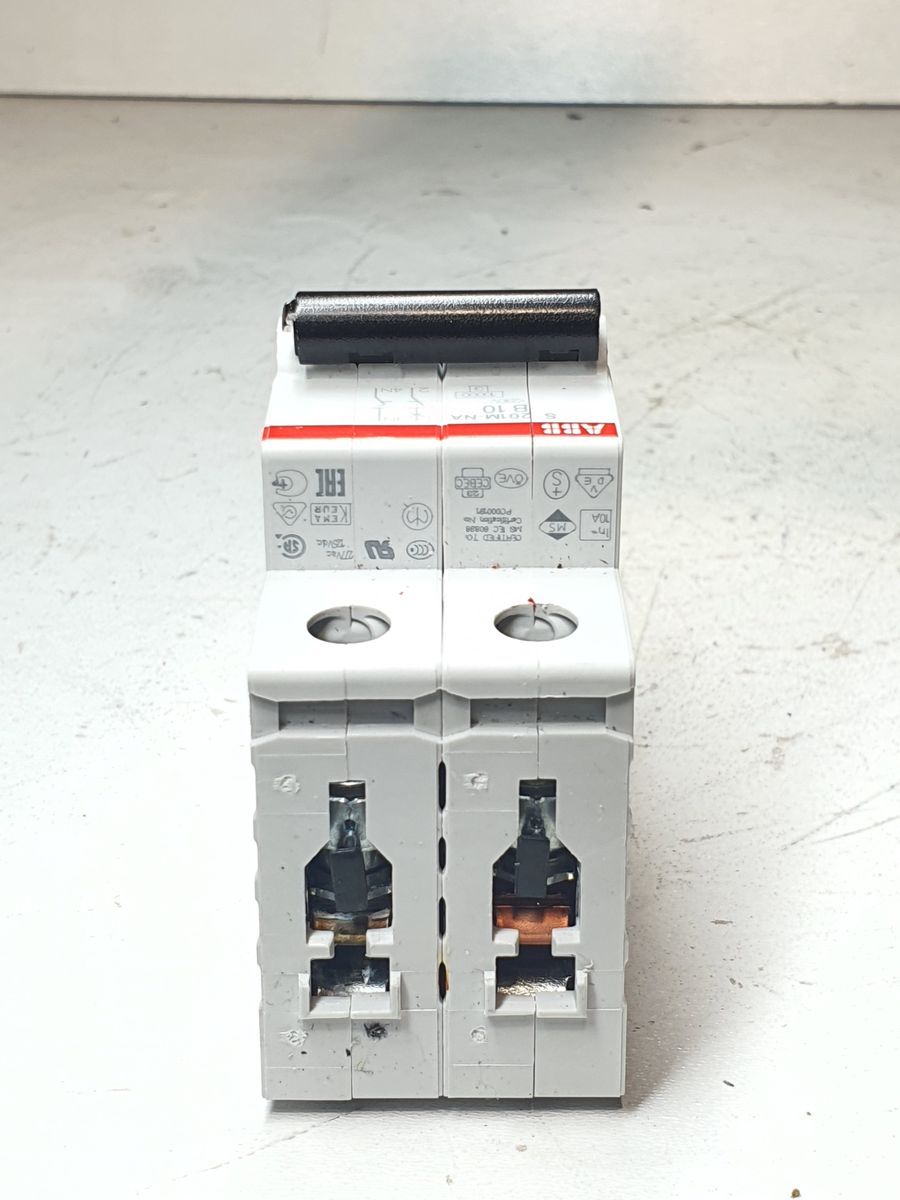

Miniature Circuit Breaker - S200M - 1P+N - 10 A - B - (AC) 10 kA
Model S201M-NA B10
Brand ABB
Specification:
| Parameter | Specification |
|---|---|
| Rated Current (In) | 10 A |
| Input Voltage Type | AC |
| Operational Voltage (Max.) | 253 V AC (incl. tolerance) |
| Operational Voltage (Min.) | 12 V AC / 12 V DC |
| Maximum Operating Voltage (UL/CSA) | 60 V DC / 480Y/277 V AC |
| Frequency | 50 Hz |
| Rated Frequency | 50 / 60 Hz |
| Dielectric Test Voltage | 2 kV (50 / 60 Hz, 1 min) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Uimp at 2000 m | 5 kV |
| Uimp at Sea Level | 6.2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 25 kA @ 133 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 18.8 kA @ 133 V AC |
| 7.5 kA @ 230 V AC | |
| Rated Short-Circuit Capacity | 10 kA (AC) |
| 6 kA @ 230 V AC | |
| Rated Conditional Short-Circuit Current (Inc) | 15 kA @ 230 V |
| Energy Limiting Class | Class 3 |
| Electrical Endurance | 20,000 AC cycles / 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Number of Poles | 1P + N |
| Number of Protected Poles | 1 |
| Neutral Terminal Position | Right |
| Contact Position Indicator | Red ON / Green OFF |
| Power Supply Connection | Arbitrary |
| Terminal Type | Screw terminals |
| Screw Terminal Type | Failsafe bi-directional cylinder-lift |
| Tightening Torque | 2.8 N·m |
| Actuator Type | Toggle |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, black, sealable |
| Recommended Screwdriver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity – Busbar | 10 / 10 mm² |
| Connecting Capacity – Flexible (with ferrule) | 0.75 … 25 mm² |
| Connecting Capacity – Flexible | 0.75 … 25 mm² |
| Connecting Capacity – Rigid | 0.75 … 35 mm² |
| Connecting Capacity – Stranded | 0.75 … 35 mm² |
| Installation Size | According to DIN 43880-1 |
| Power Loss | 4.2 W |
| Power Loss per Pole | 2.1 W |
| Ambient Temperature (Operation) | −25 … +55 °C |
| Ambient Temperature (Storage) | −40 … +70 °C |
| Reference Ambient Temperature | 30 °C |
| Environmental Conditions | 28 cycles |
| 55 °C / 90–96 % RH | |
| 25 °C / 95–100 % RH | |
| Width (Modular Spacings) | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Built-In Depth (t2) | 69 mm |
| Product Net Weight | 0.217 kg |
| Pole Net Weight | 0.125 kg |
×
![]()
