Válvulas

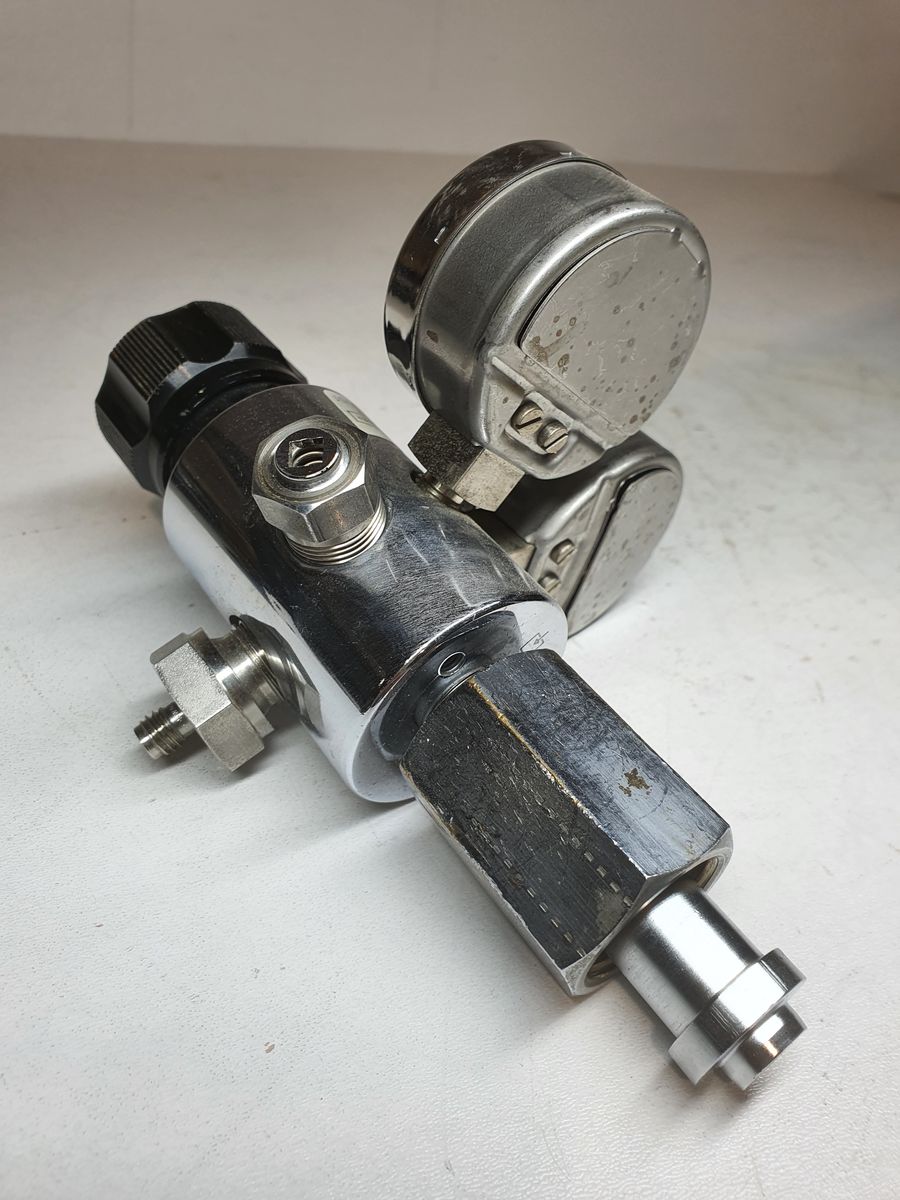

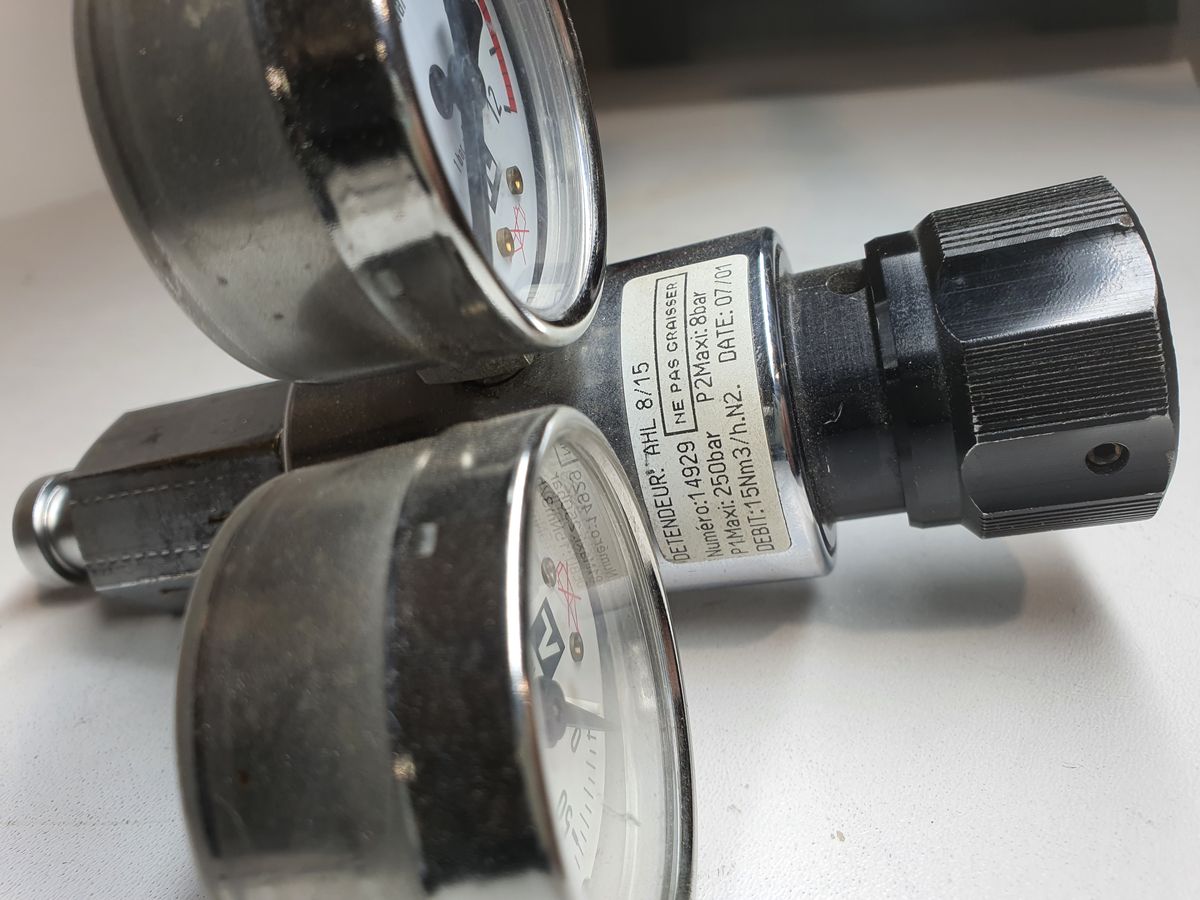

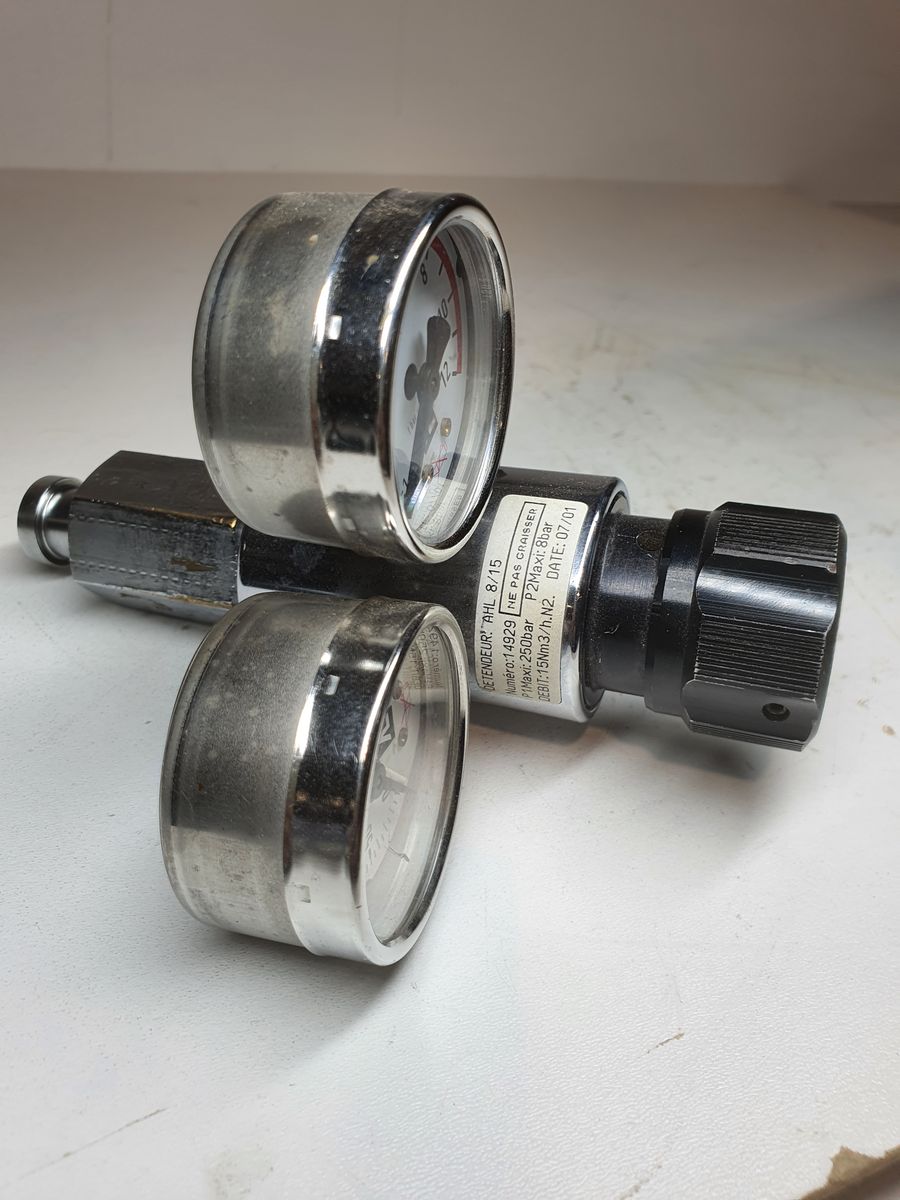

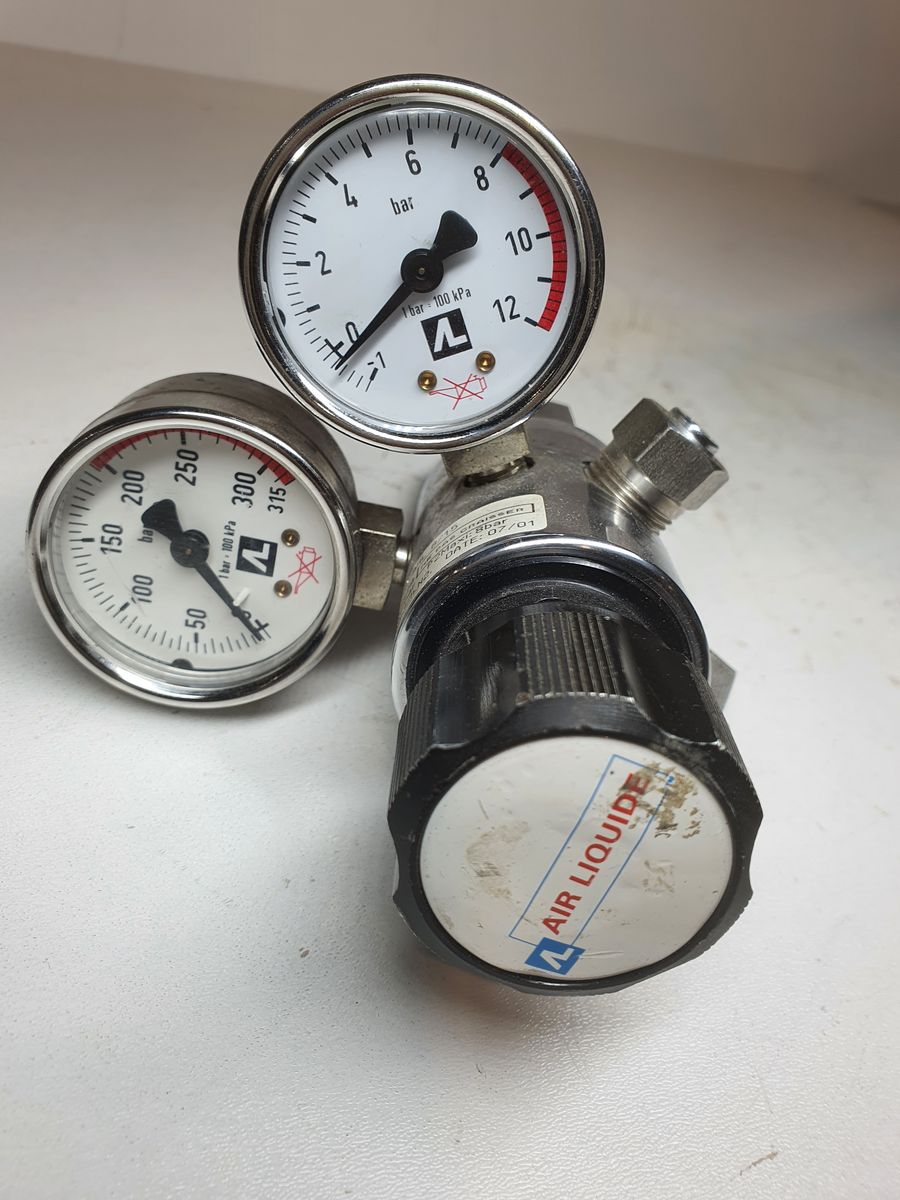

Air Liquide AHL 8/15

SKU: 2017

En Stock

Seleccionar Condición

Usado

Precio a consultar

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado 3 meses

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descripción

AHL 200-8-15

Industrial processes / Laboratory & Analysis

•High pressure reducing valve - Single stage
•Mounting on 200 bar cylinder - connection at the rear
•Suitable for pure gases and gas mixtures, non-corrosive
•In chrome-plated brass

Developed for use by: To create a protective and process gas atmosphere

Reference

AHL_200-8-15

Outlet pressure

1 to 8 bar

Flow

15 Nm³/h,

Packaging type

Cylinders

Session

Brass

Main valve

Brass PTFCE coated

Diaphragm

Stainless steel

Filter

Monel 400®

Meter

Ø 50 mm, Light alloy mechanism, Seal in PA 6.6

Safety valve

Body in stainless steel 303, Valve in stainless steel, Seal in EPDM

Dimensions
L:107.0000 MILLIMETER
H:98.0000 MILLIMETER
D:185.0000 MILLIMETER
Diam1:50.0000 MILLIMETER
Diam2:45.0000 MILLIMETER
Net Weight1.3100 KILOGRAM
