Medidor de flujo

Brooks Instrument 1350/D2A4D1B5A020 (10-50 ln/h)

SKU: 3018

En Stock

Seleccionar Condición

Usado
Procedente de un entorno de trabajo

Precio a consultar

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado 3 meses

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descripción

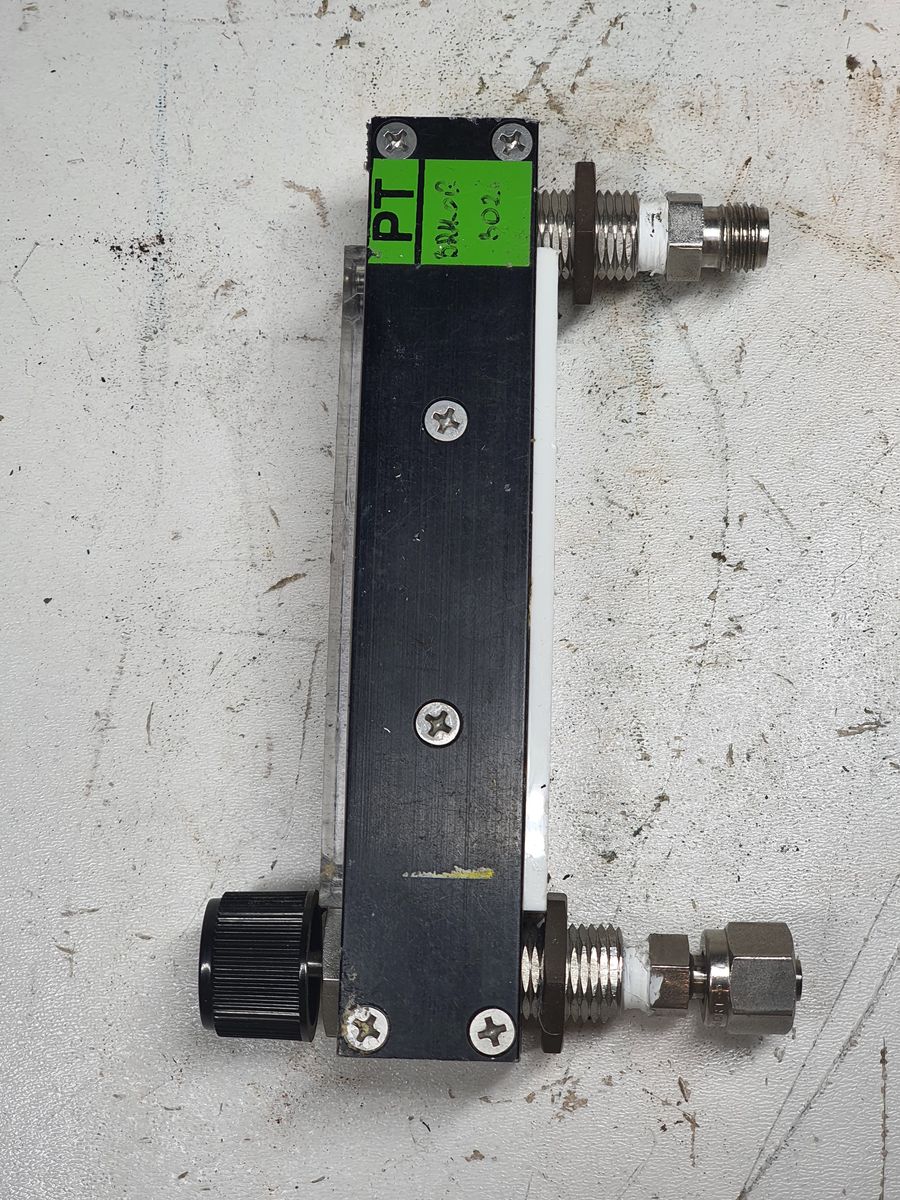

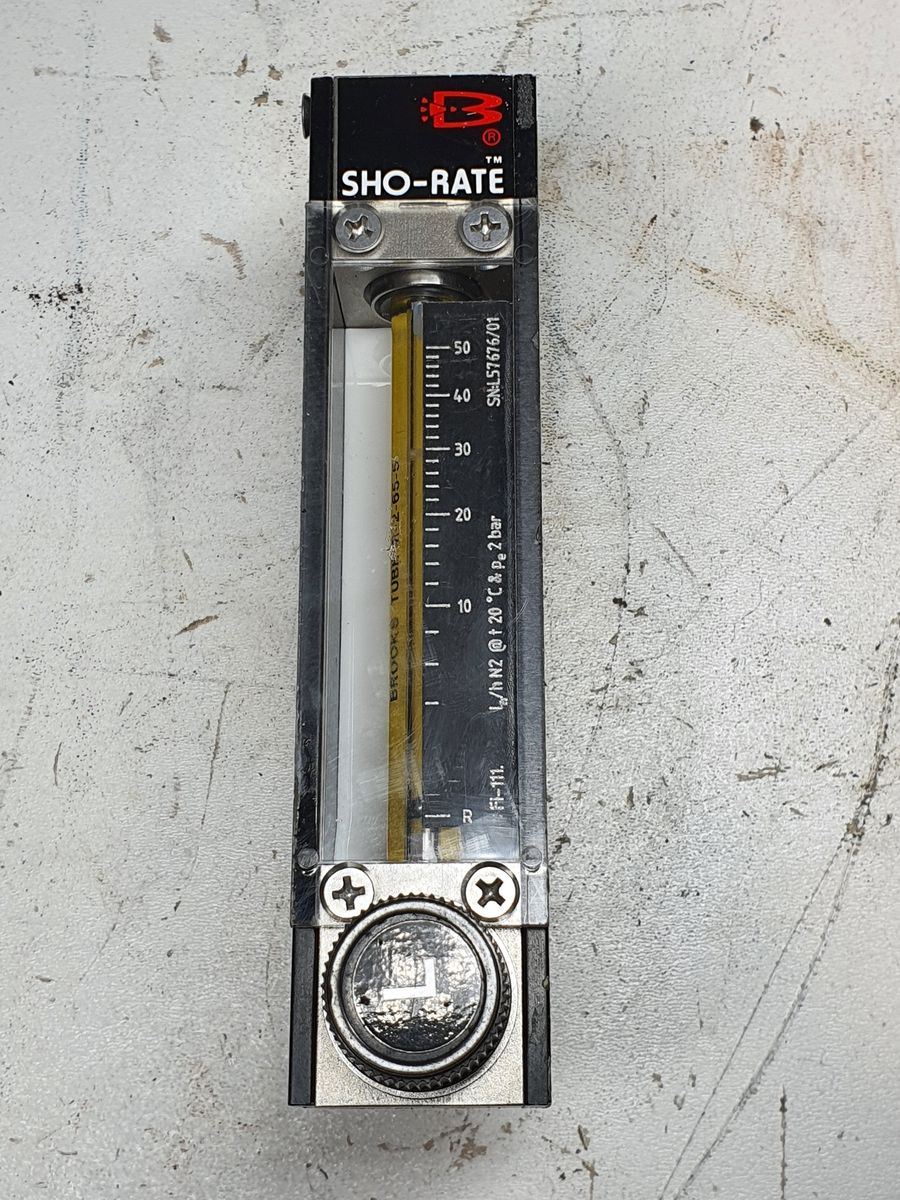

Brooks Sho-Rate™ 1350 Flowmeter

Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

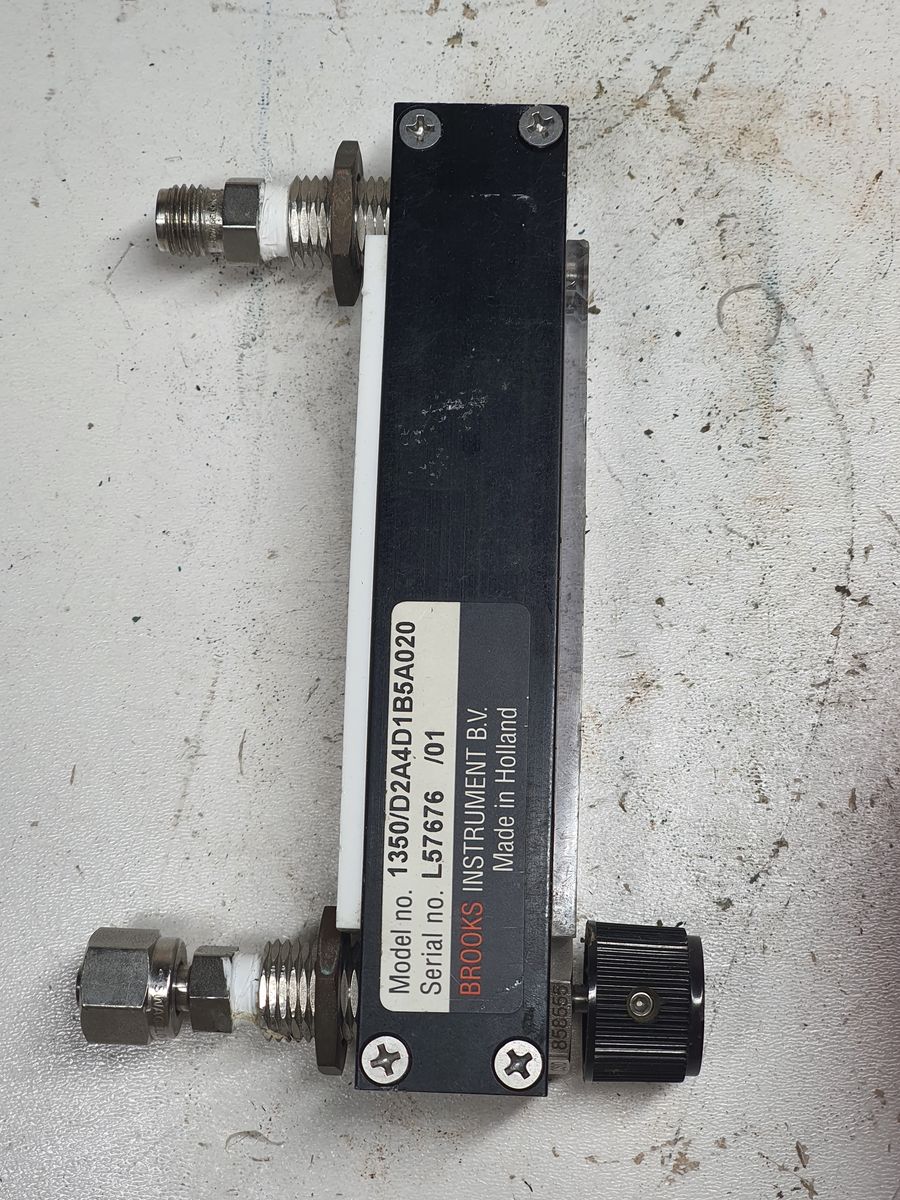

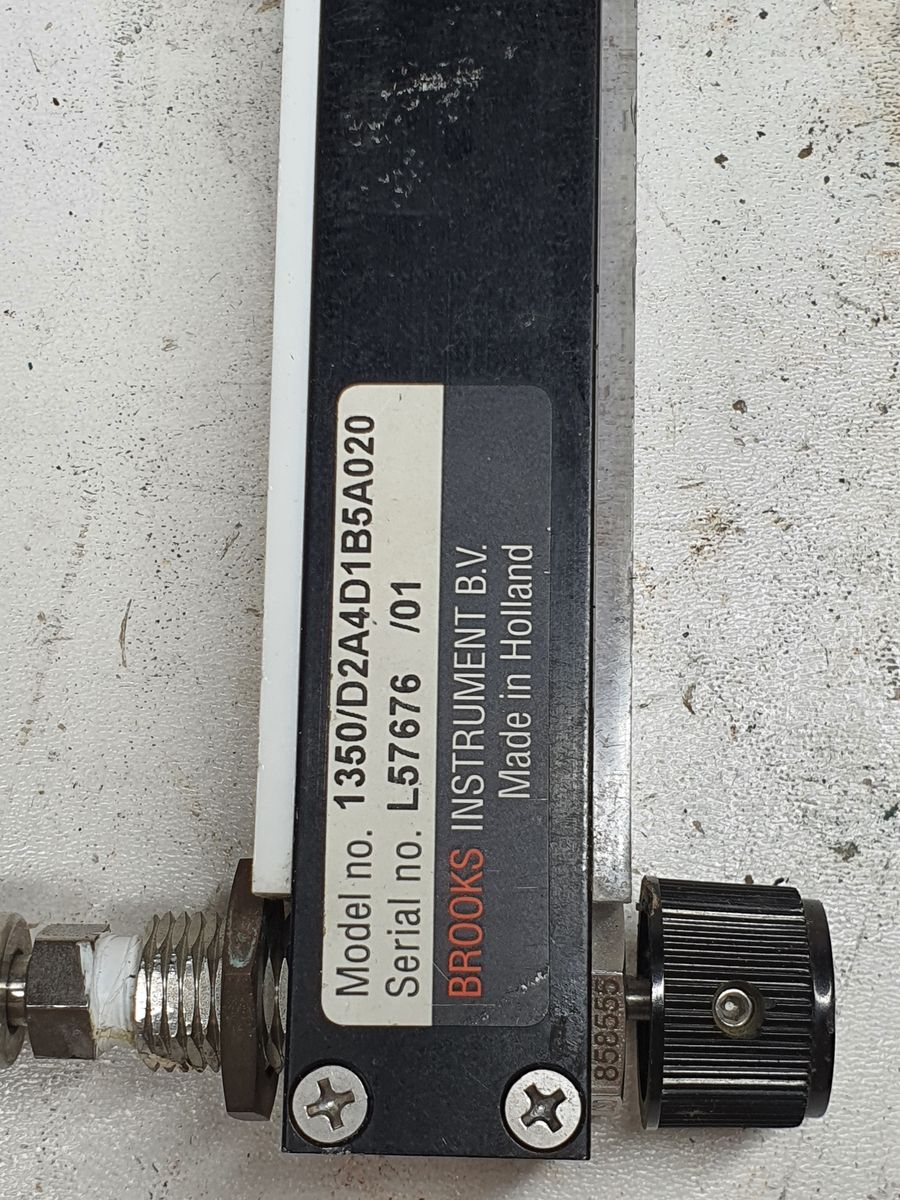

Model: 1350/D2A4D1B5A020
Serial No.: L57676/01
Product Type: Variable Area Flowmeter (Rotameter)

Feature	Value / Meaning
Flow Type	Variable-area (rotameter), direct reading
Measured Medium	Nitrogen (N₂)
Flow Range	10-50 ln/h N₂ at 20 °C
Accuracy	±5 % of full scale
Repeatability	Excellent, stable measurements
Operating Temperature (Calibration)	20 °C
Inlet Pressure (Pe)	2 bar (standard)

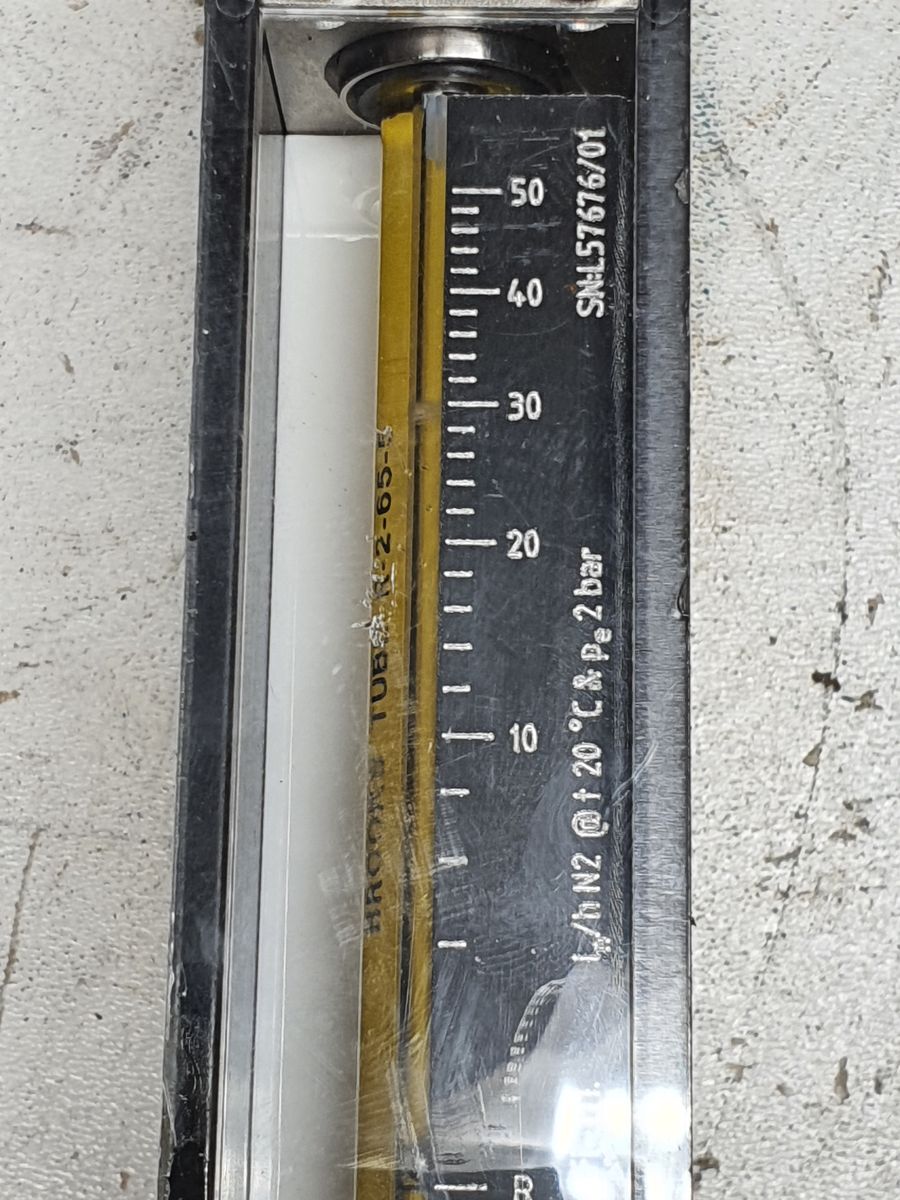

Indication	Float position in glass tube
Installation	Vertical mounting

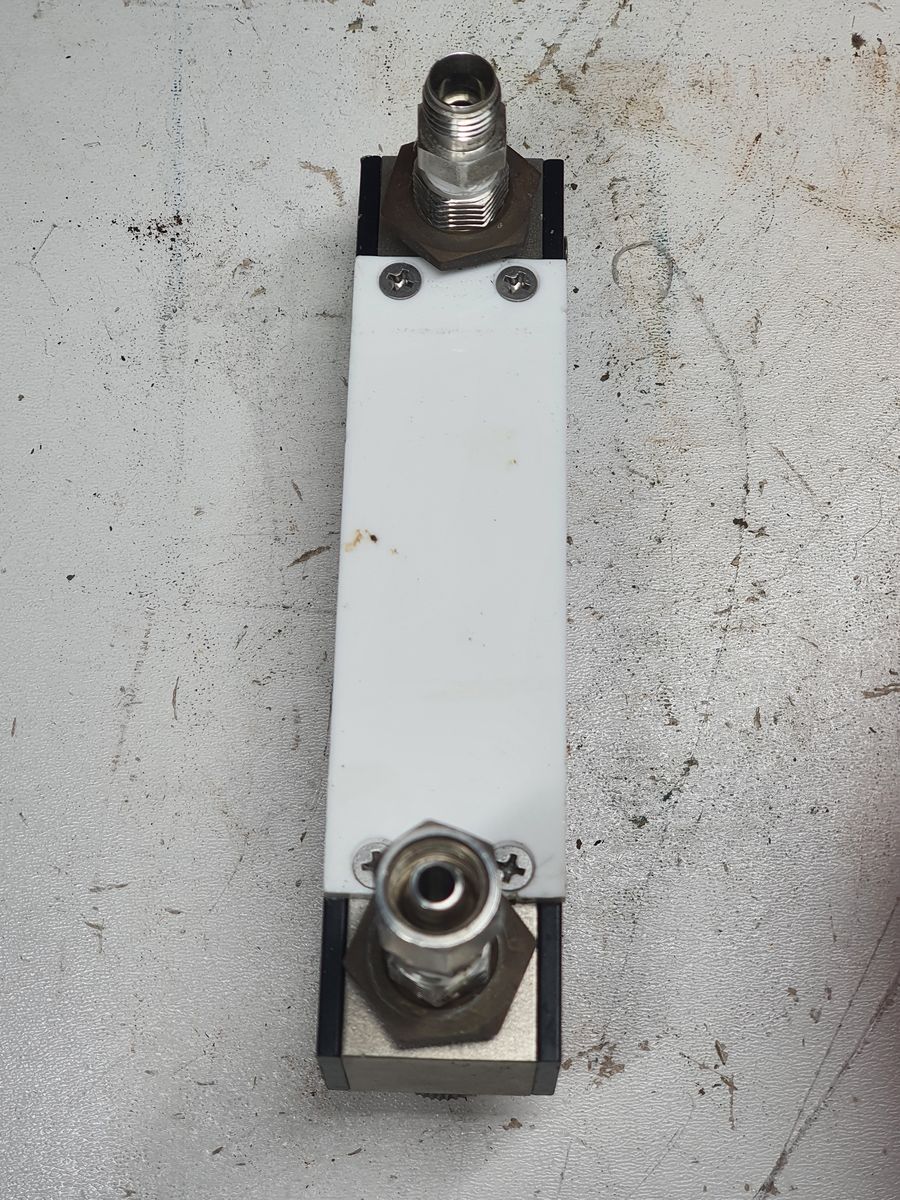

Connections	1/8″ or 1/4″ NPT (depends on model)
Mounting	Panel mount, optional rear or side connections
