Actuadores Neumáticos

Festo DNU-32-50-PPV-A

SKU: 4038

En Stock

Seleccionar Condición

Used

Excl. IVA: €30,00 (1 disponible)

IVA incluido: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descripción

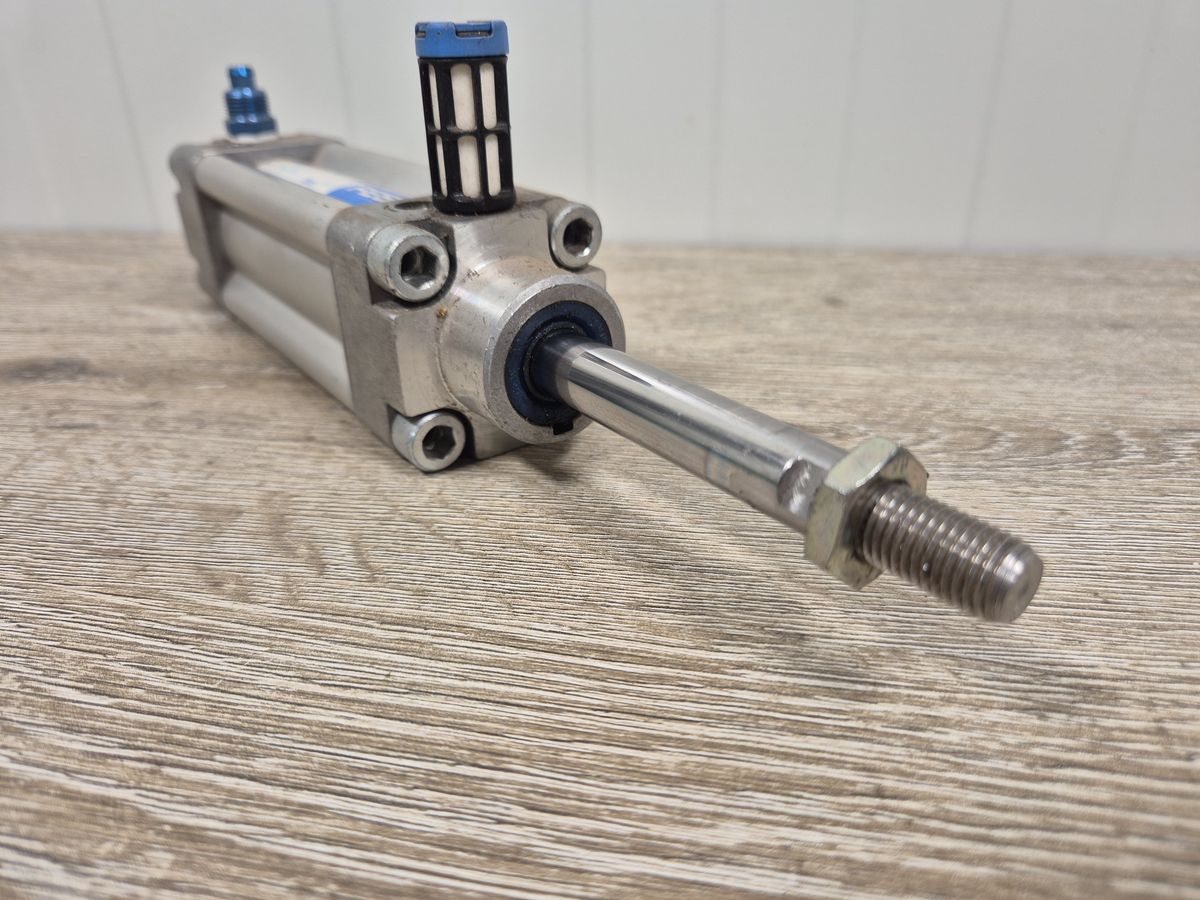

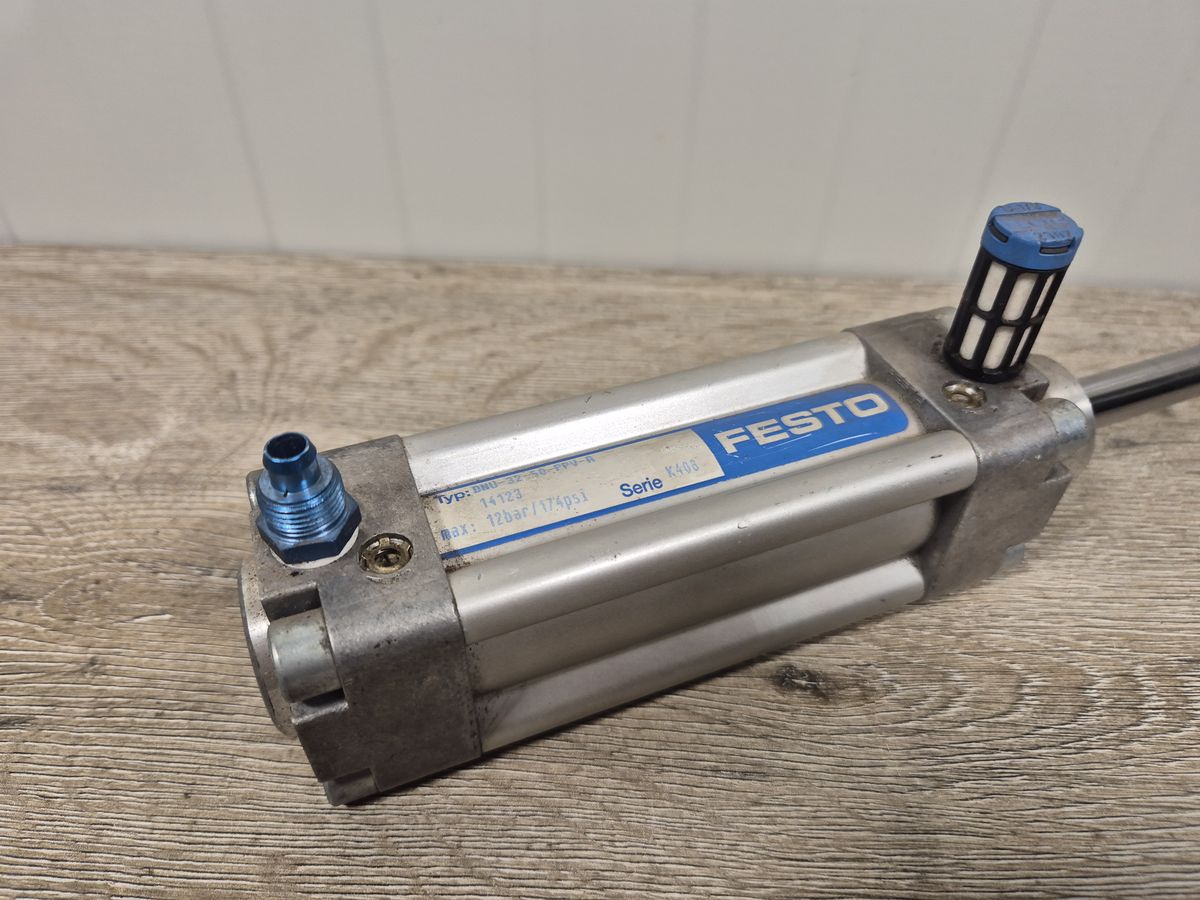

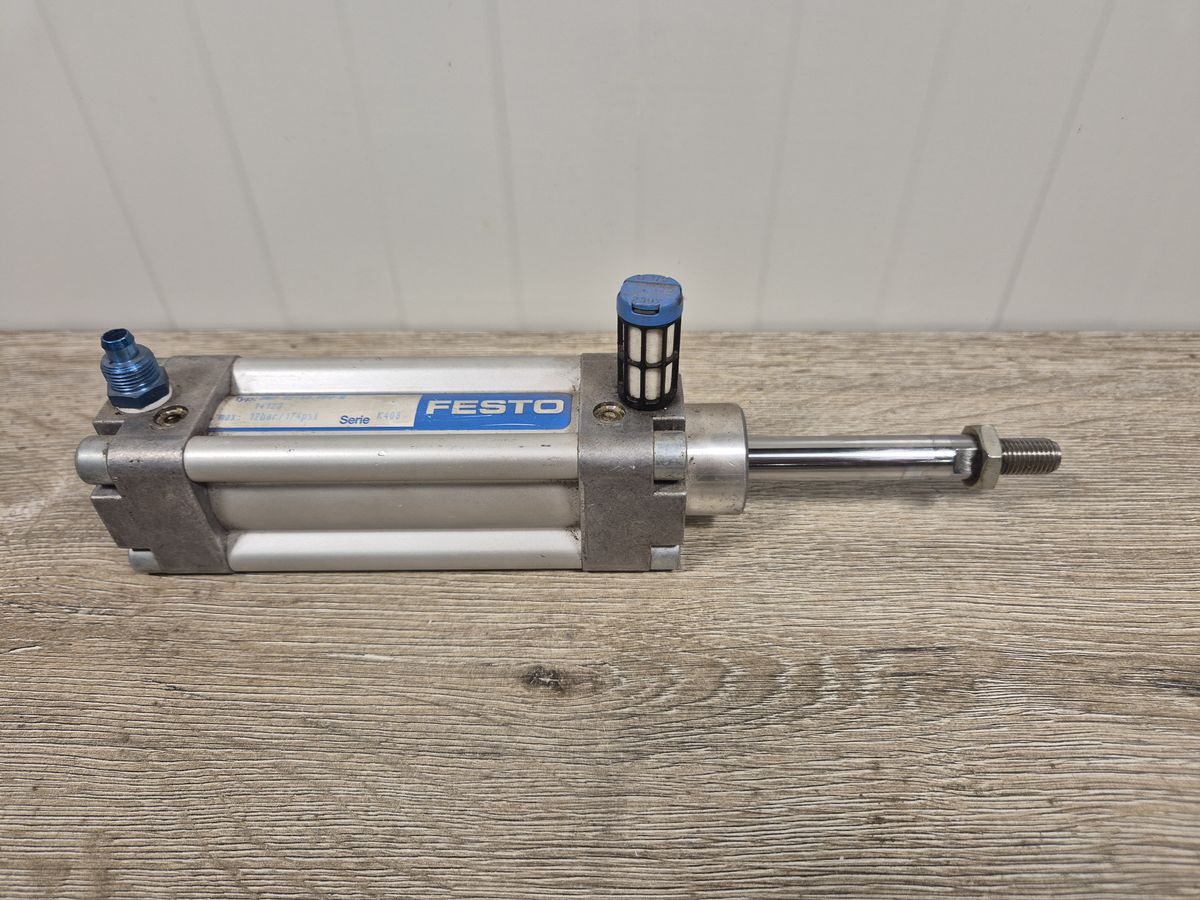

The Festo DNU-32-50-PPV-A is a double-acting standard pneumatic cylinder with a 32 mm bore and a 50 mm stroke. It features adjustable pneumatic cushioning at both ends (PPV) and contactless position sensing capability via integrated magnets (A). It is rated for industrial automation applications with operating pressures up to 12 bar (174 psi).

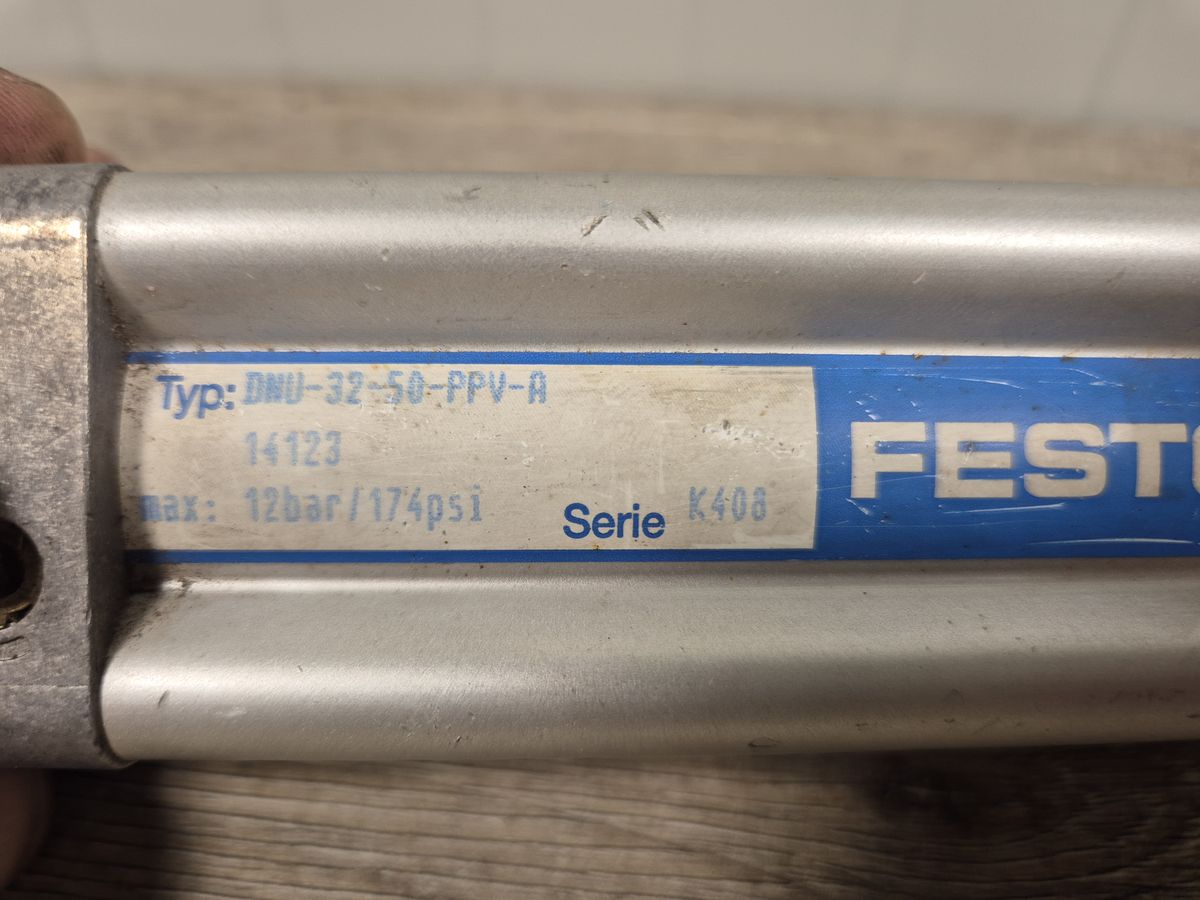

Specifications – DNU-32-50-PPV-A

Parameter	Specification
Part number	14123
Piston diameter	32 mm
Stroke length	50 mm
Max. pressure	12 bar / 174 psi
Series code	K408
