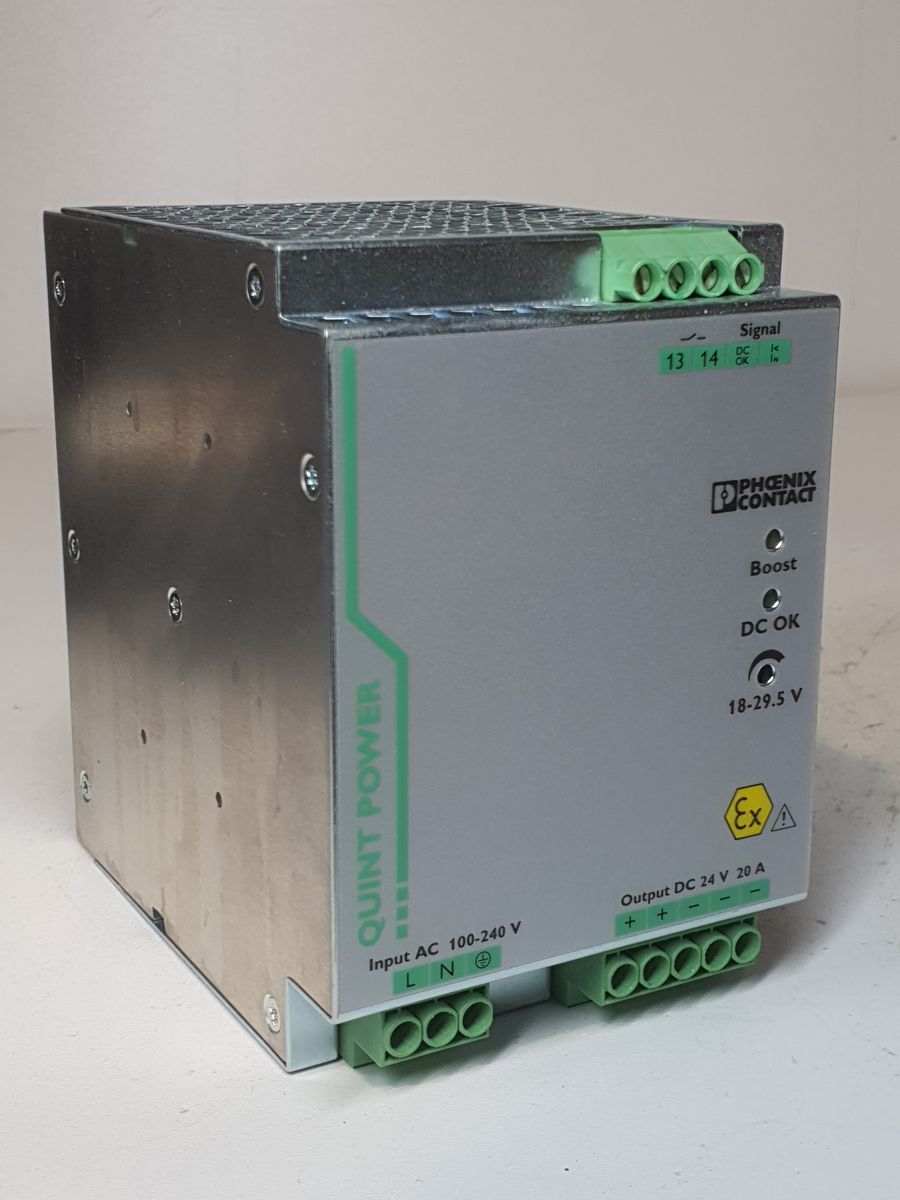

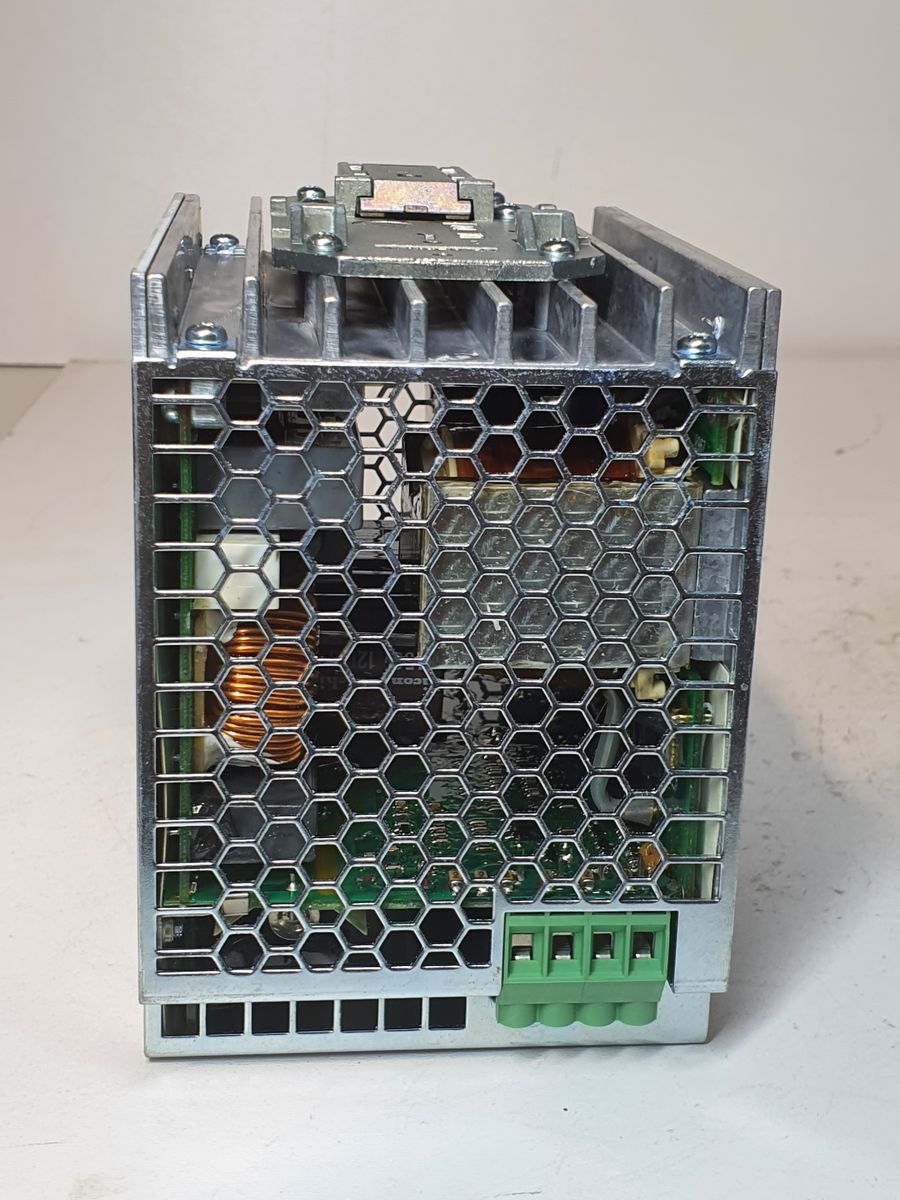

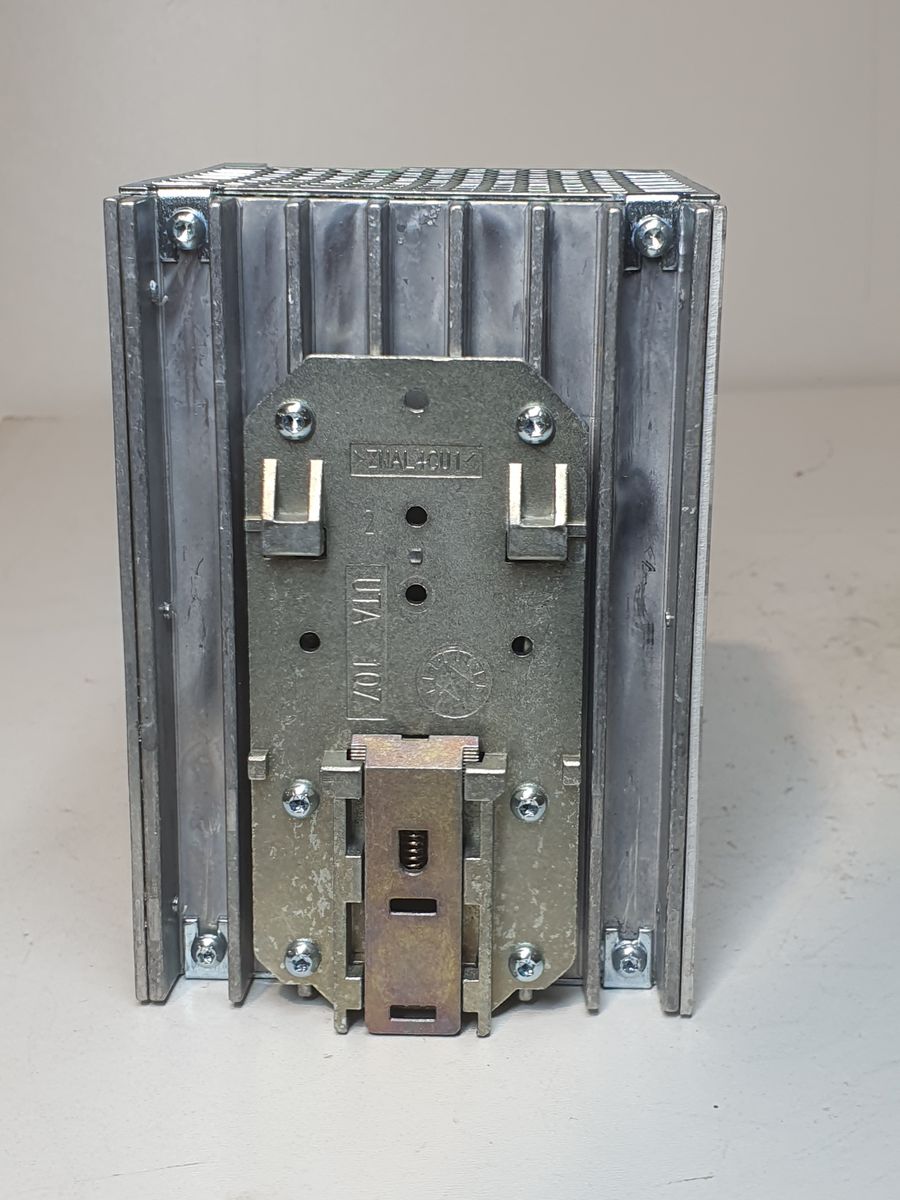

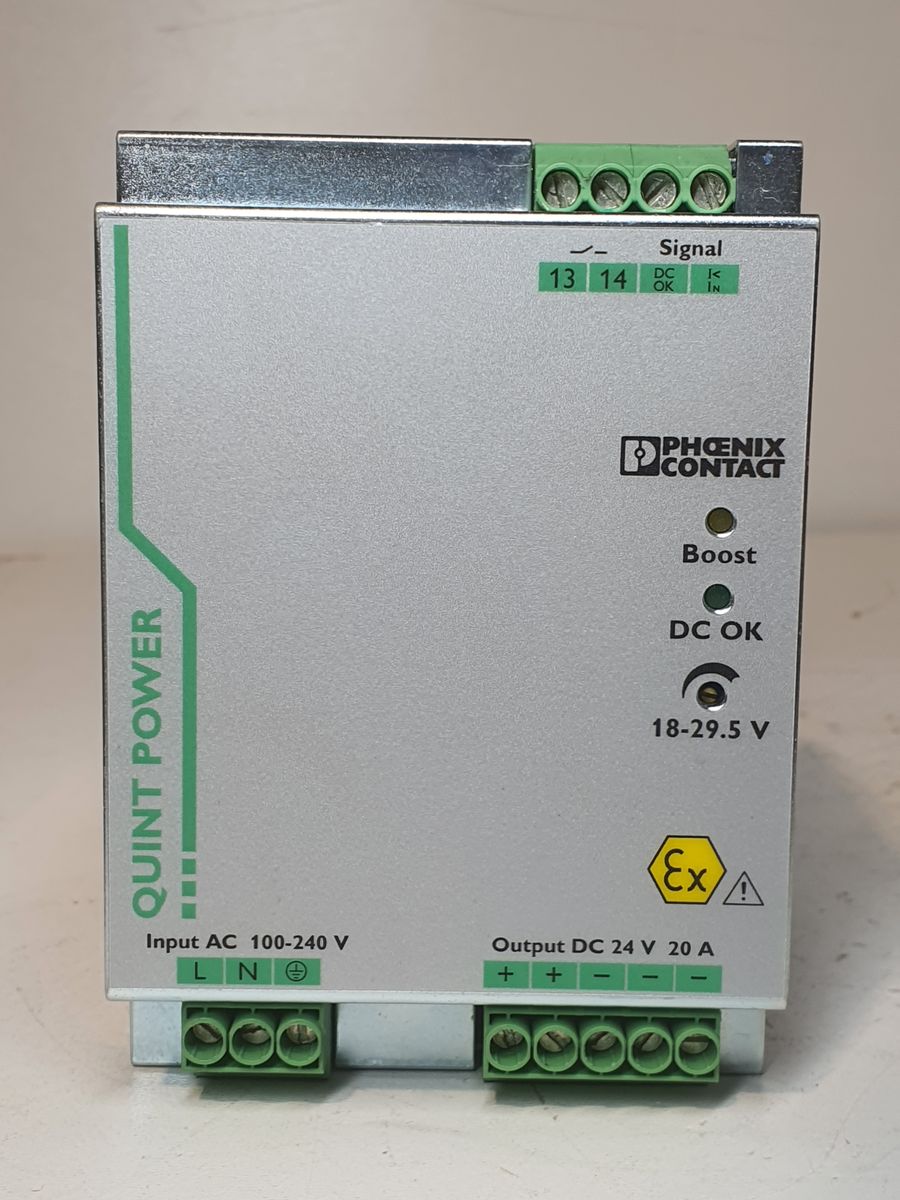

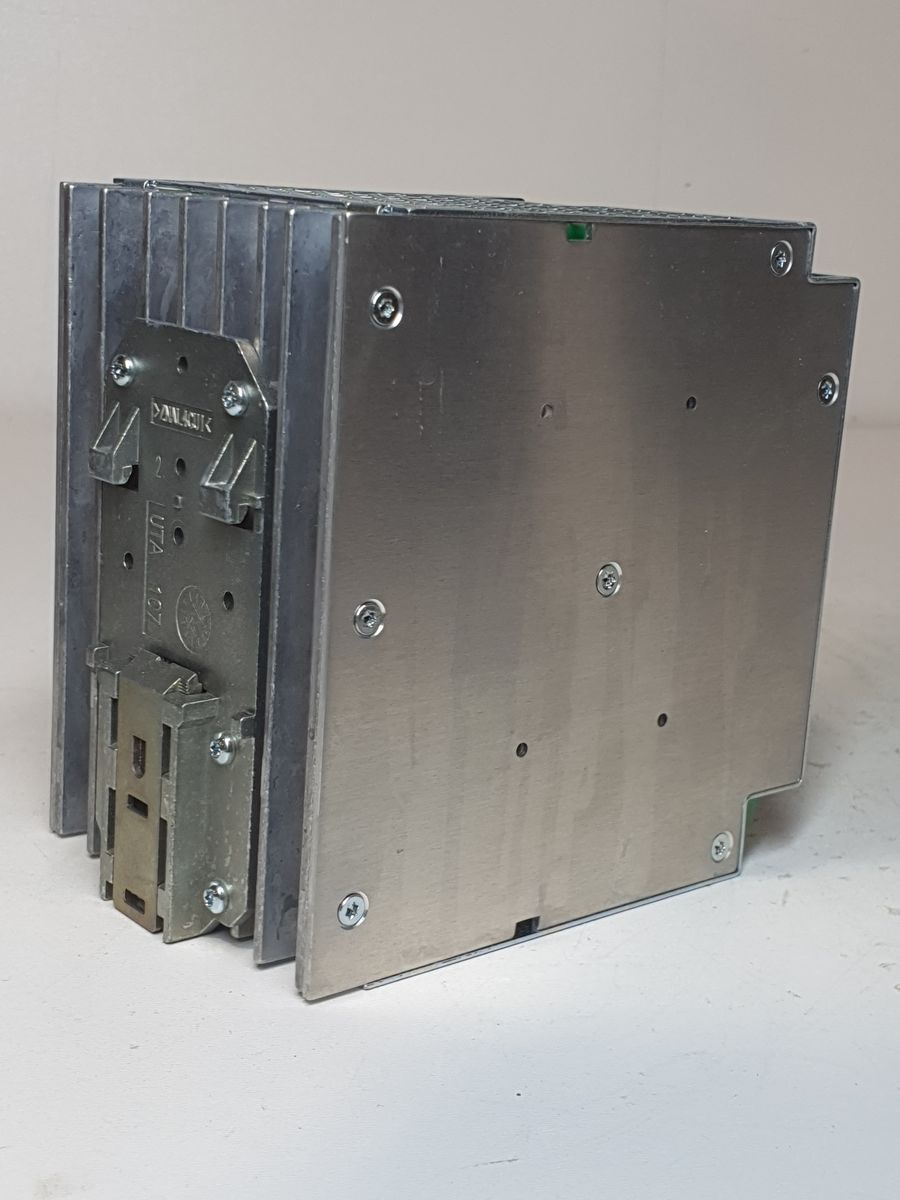

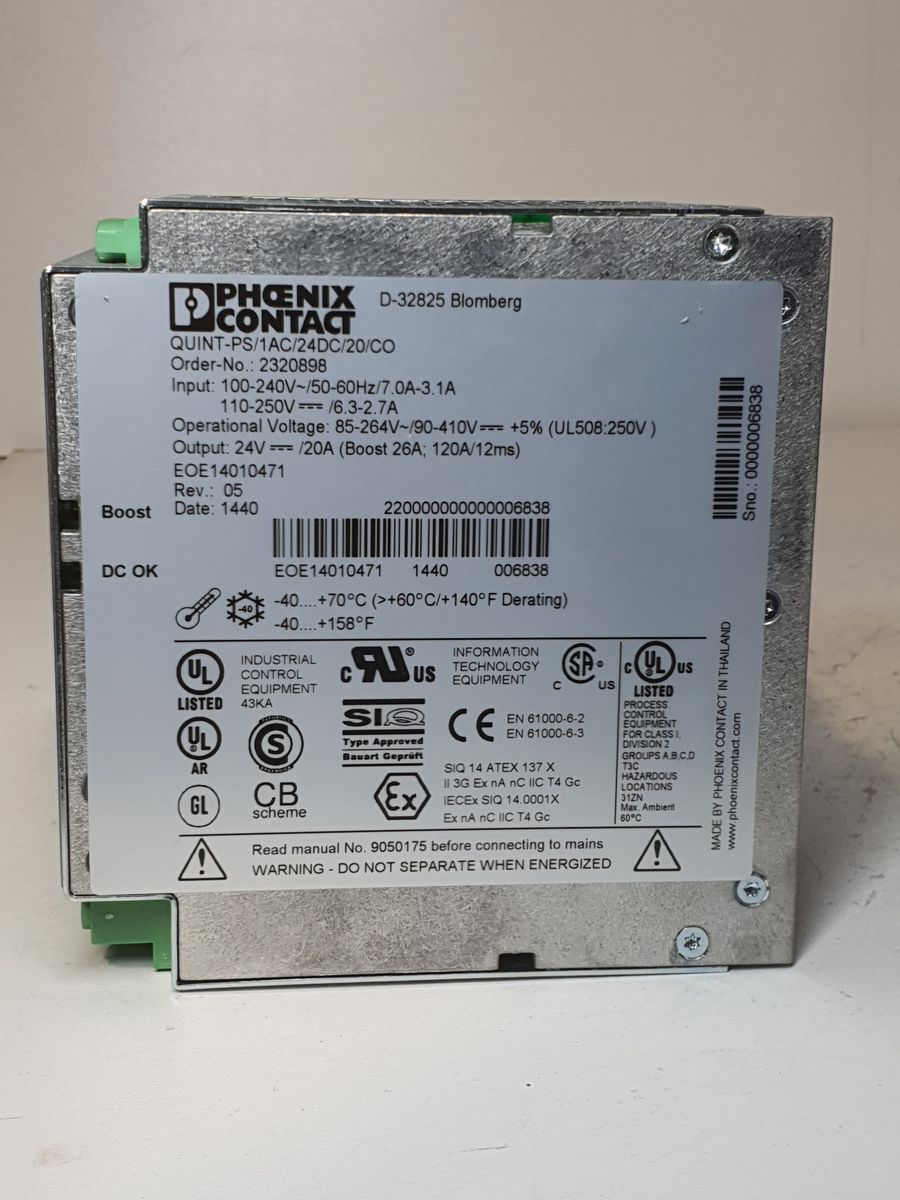

Phoenix Contact QUINT-PS/1AC/24DC/20/CO
SKU: 7039
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Phoenix Contact QUINT-PS/1AC/24DC/20/CO - 0000006838
QUINT POWER power supplies with maximum functionality.
For selective and therefore economical shutdown, QUINT POWER trips circuit breakers magnetically and therefore very quickly with six times the nominal current. High system availability is also guaranteed by preventive function monitoring, which reports critical operating states before a fault occurs.
Reliable starting of difficult loads is achieved using the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges from 18 V DC to 29.5 V DC are covered.
Specifications:
| Input voltage range | 3x 320 V AC ... 575 V AC |
| 2x 360 V AC ... 575 V AC | |
| 450 V DC ... 800 V DC |
| return | > 93 % (at 400 V AC and nominal values) |
| nominal output voltage | 24 V DC ±1 % |
| output voltage setting range (U set ) | 18 V DC ... 29.5 V DC (> 24 V DC, constant power limited) |
| nominal output current ( IN ) | 20 A (-25 °C ... 60 °C, U OUT = 24 V DC) |
| POWER BOOST (I Boost ) | 26 A (-25 °C ... 40 °C continuous, U OUT = 24 V DC) |
| Width | 69 mm |
| Height | 130 mm |
| depth | 125 mm |
| Installation dimensions | |
| Installation distance right/left | 5 mm / 5 mm |
| Installation distance above/below | 50 mm / 50 mm |
×
![]()
