Actuadores Neumáticos

Swagelok 131SR / SS-43GS4-31C

SKU: 4016

En Stock

Usado
Procedente de un entorno de trabajo

Precio a consultar

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

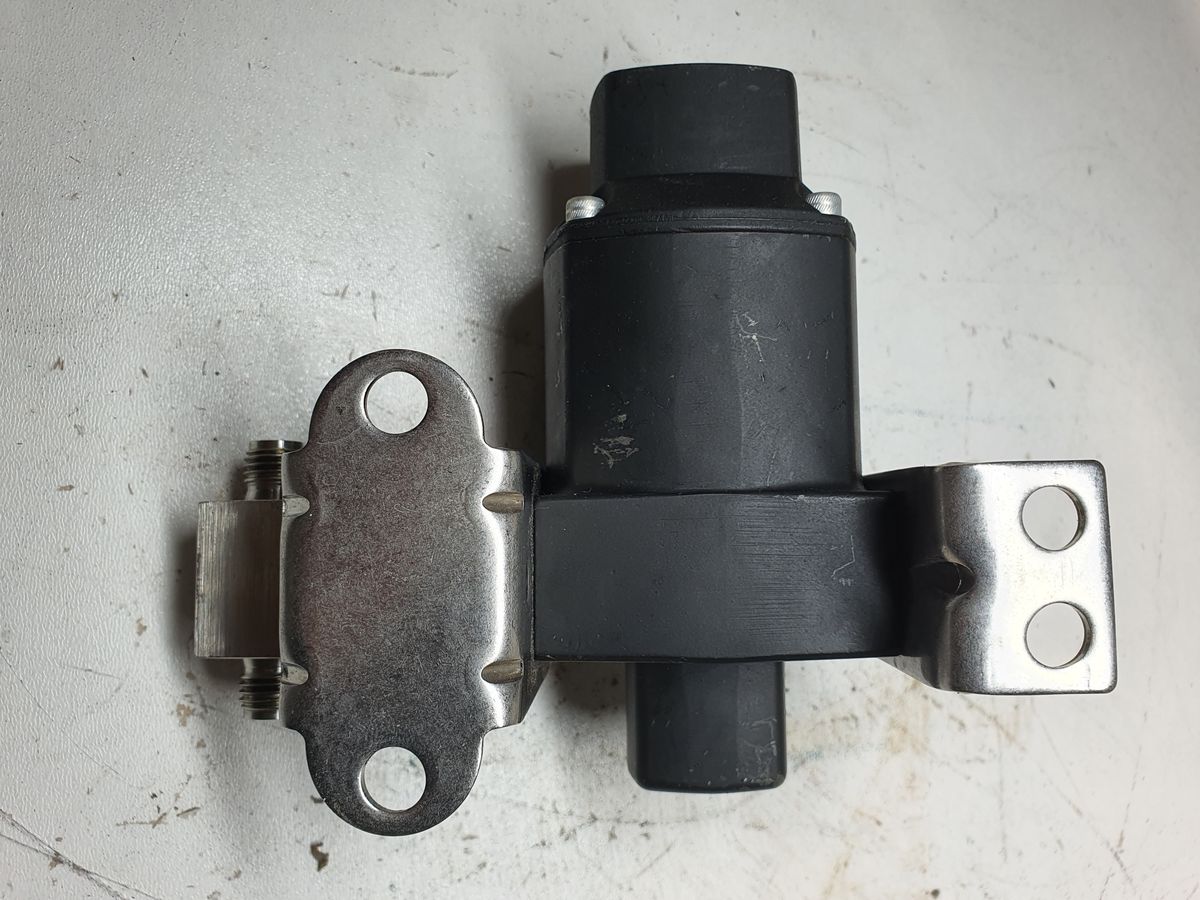

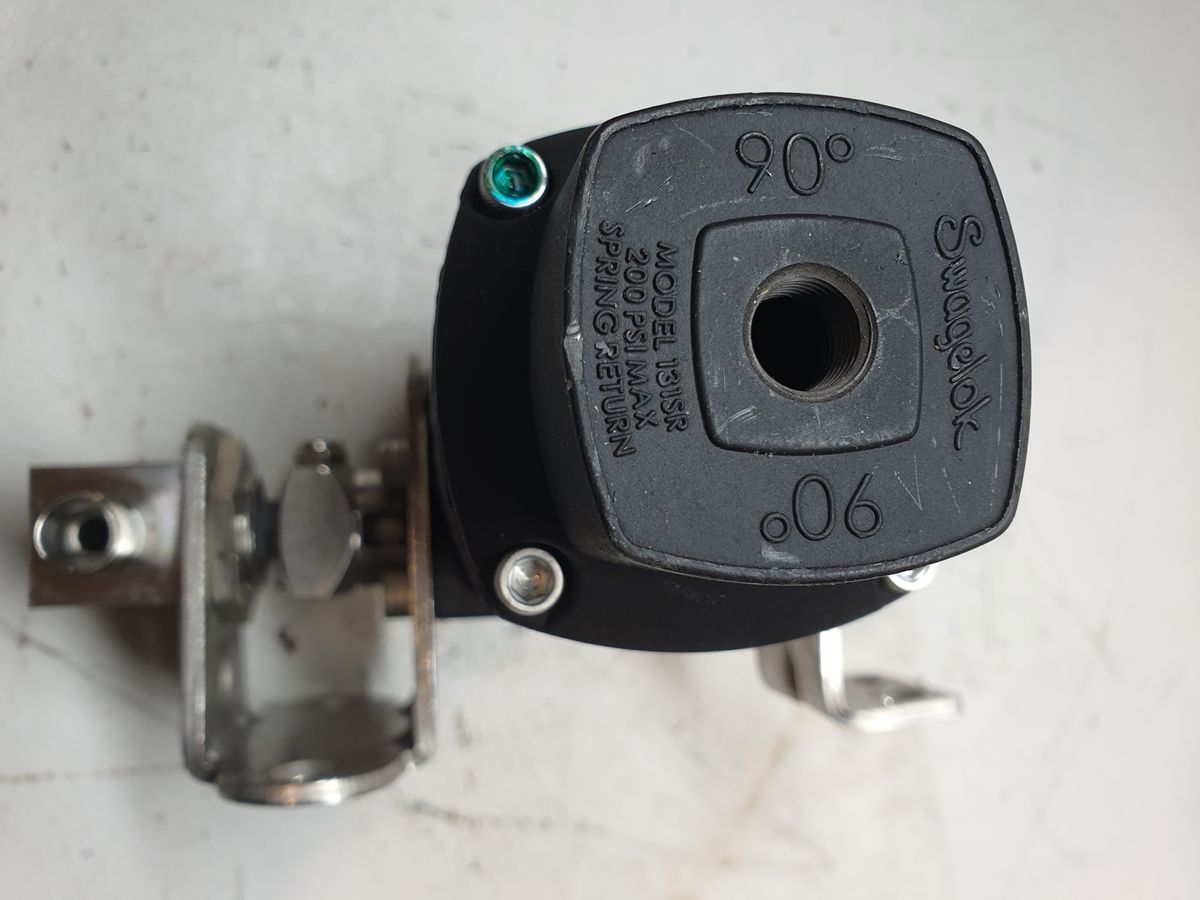

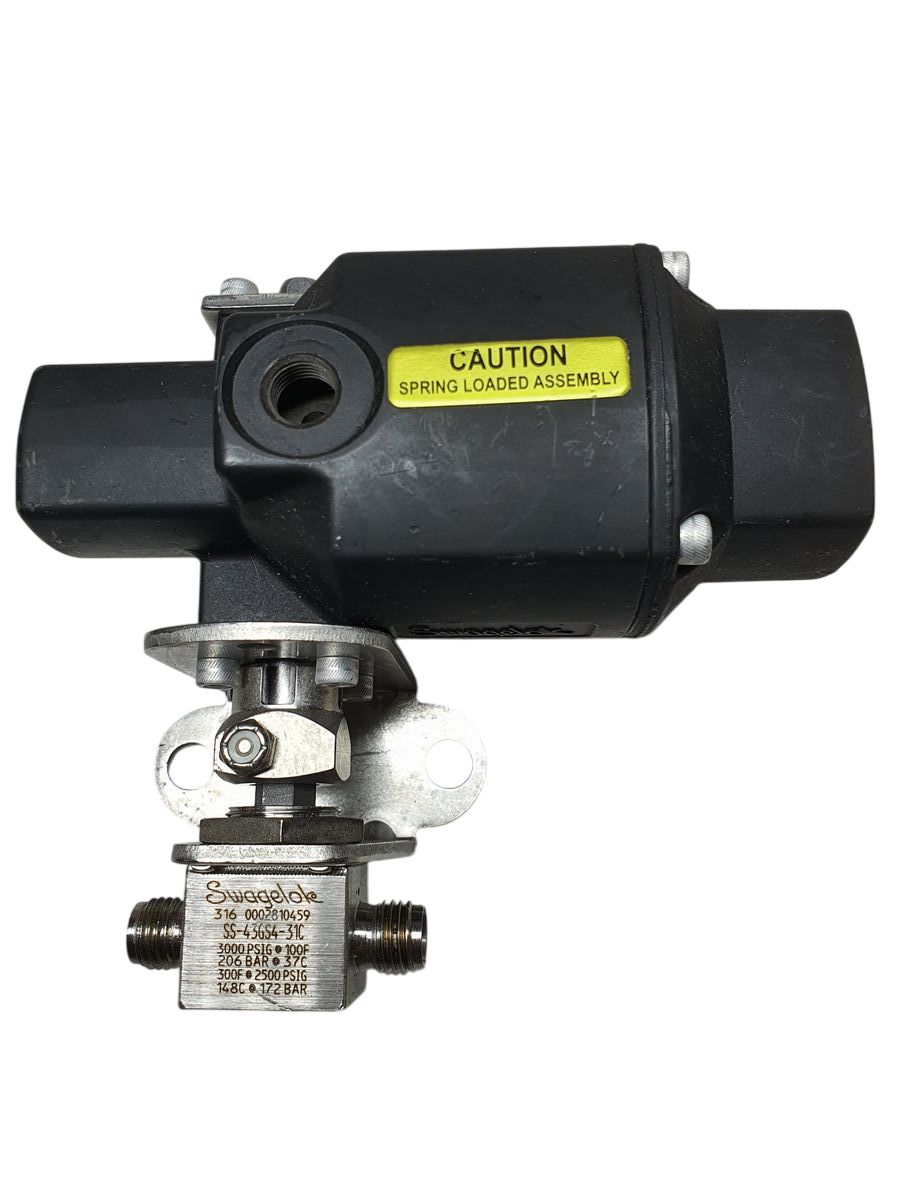

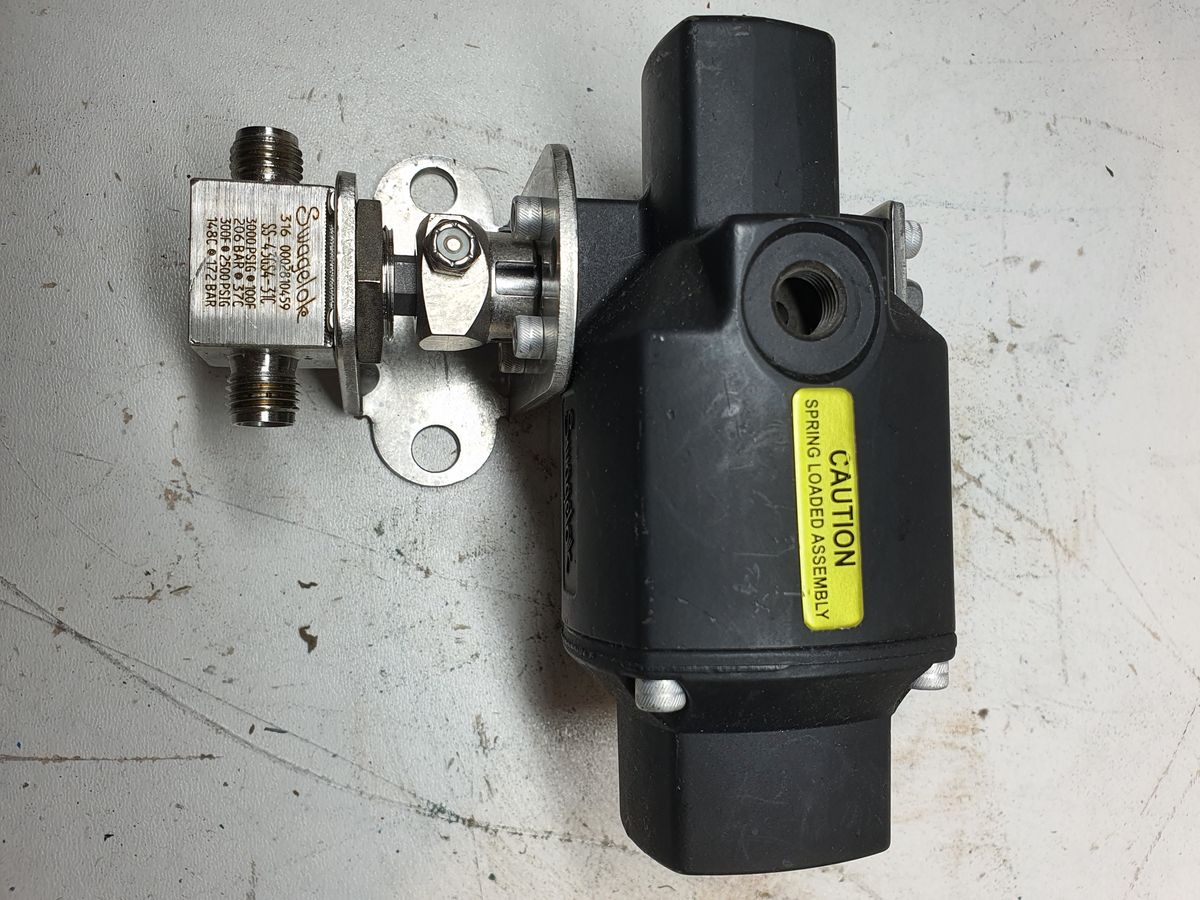

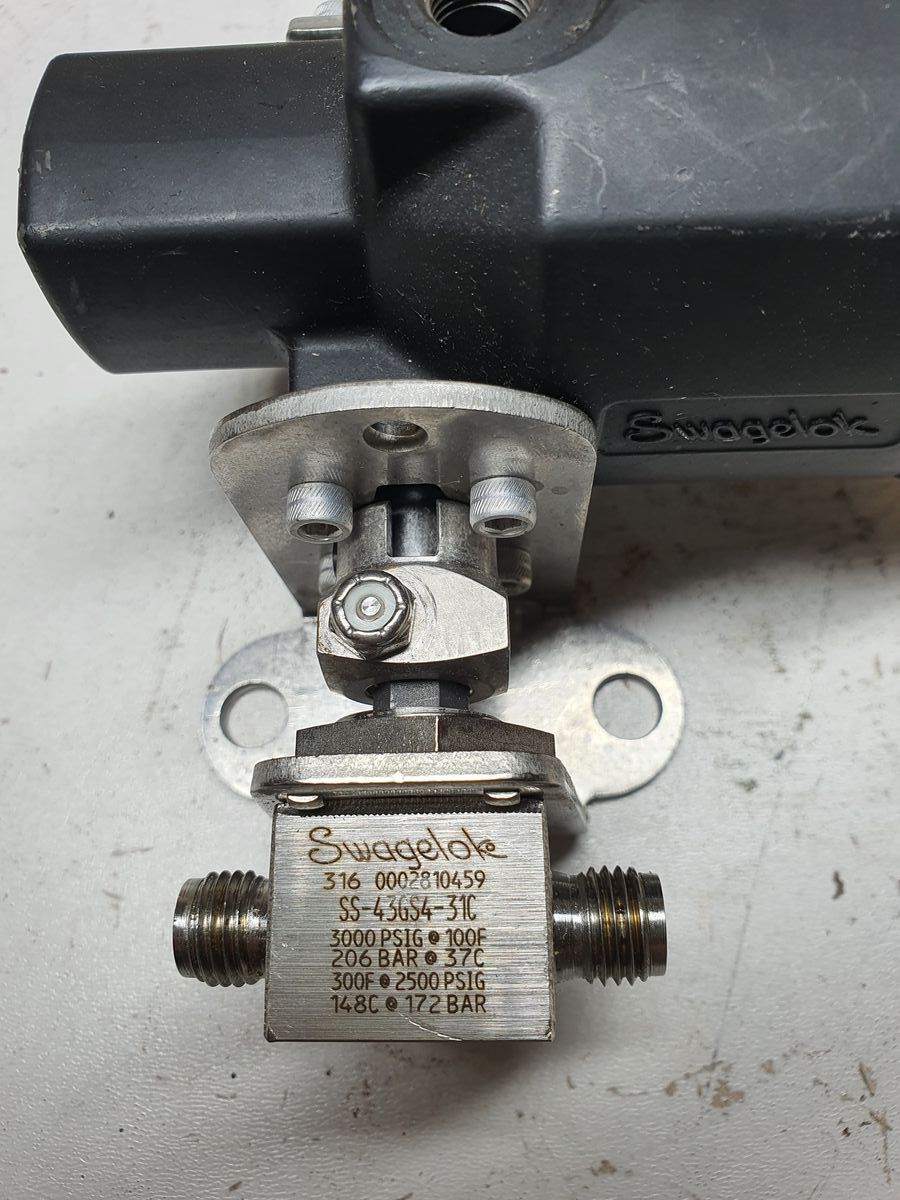

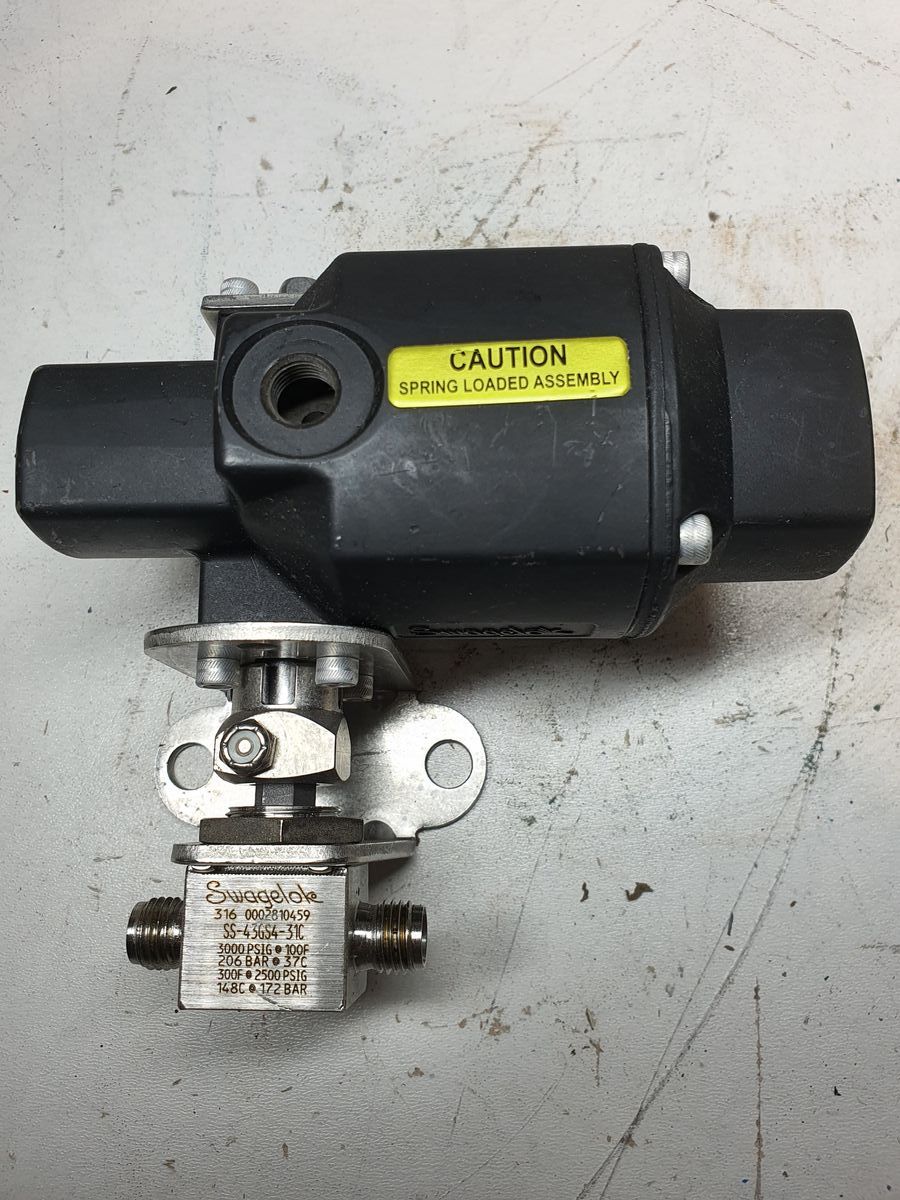

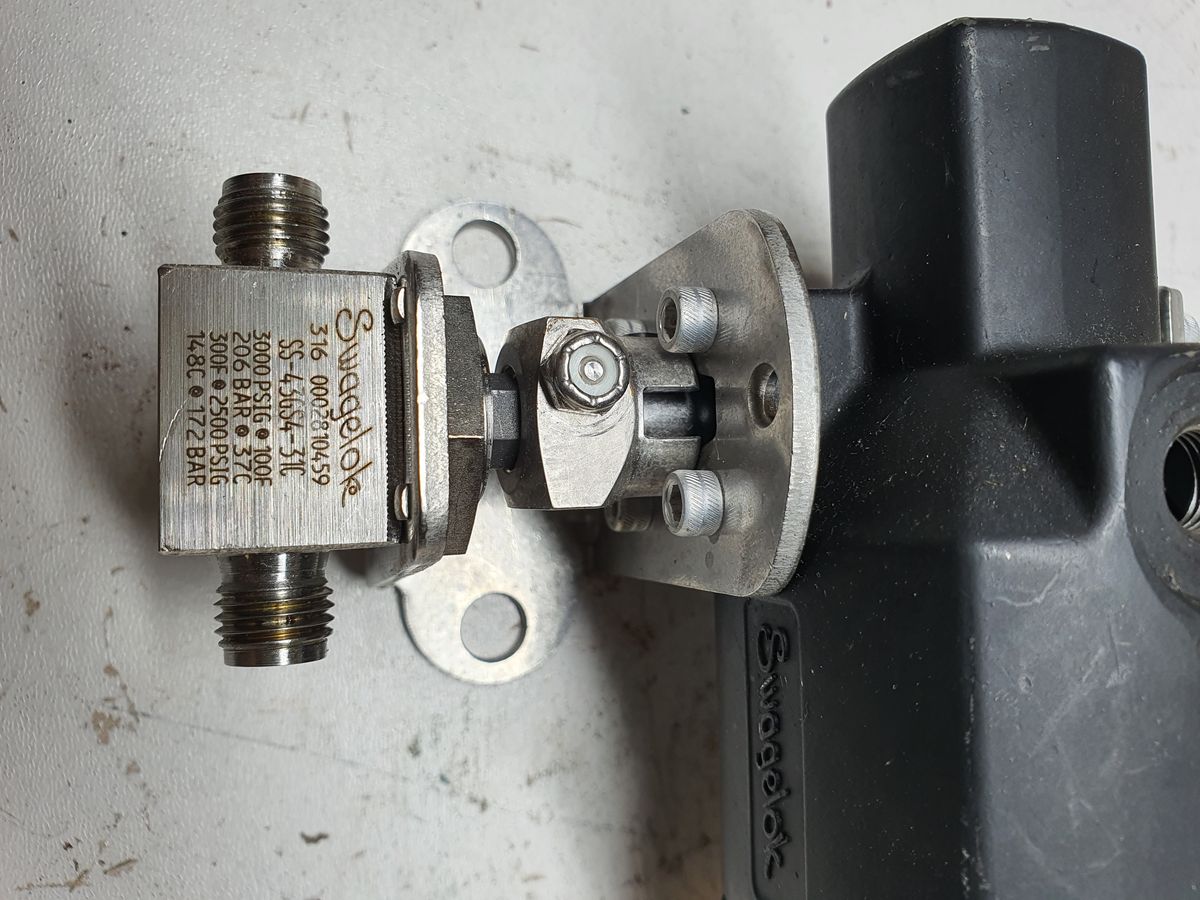

SS-43GS4-31C — Stainless Steel 1-Piece 40G Series Ball Valve, 1.4 Cv, 1/4 in. Swagelok Tube Fitting, NC Actuator

Attribute	Value
Actuator Model	131 Series
Actuator Operation Mode	Normally Closed Spring Return
Actuator Type	Pneumatic
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Swagelok® Tube Fitting
CV Maximum	1.4
Flow Path	Standard
Flow Pattern	2-Way, Shutoff, Straight
Handle Color	Black
Handle Style	Directional
Low Emissions Certified	Yes
Orifice	0.187 in /4.7 mm
Packing Material	Modified PTFE UHMWPE
Ring/Disc Material	Stainless Steel
Room Temperature Pressure Rating	3000 PSIG @ 100°F /206 BAR @ 37°C
Testing	Testing according to WS-22
