Actuadores Neumáticos

Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN

SKU: 4018

En Stock

Usado
Procedente de un entorno de trabajo

Precio a consultar

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

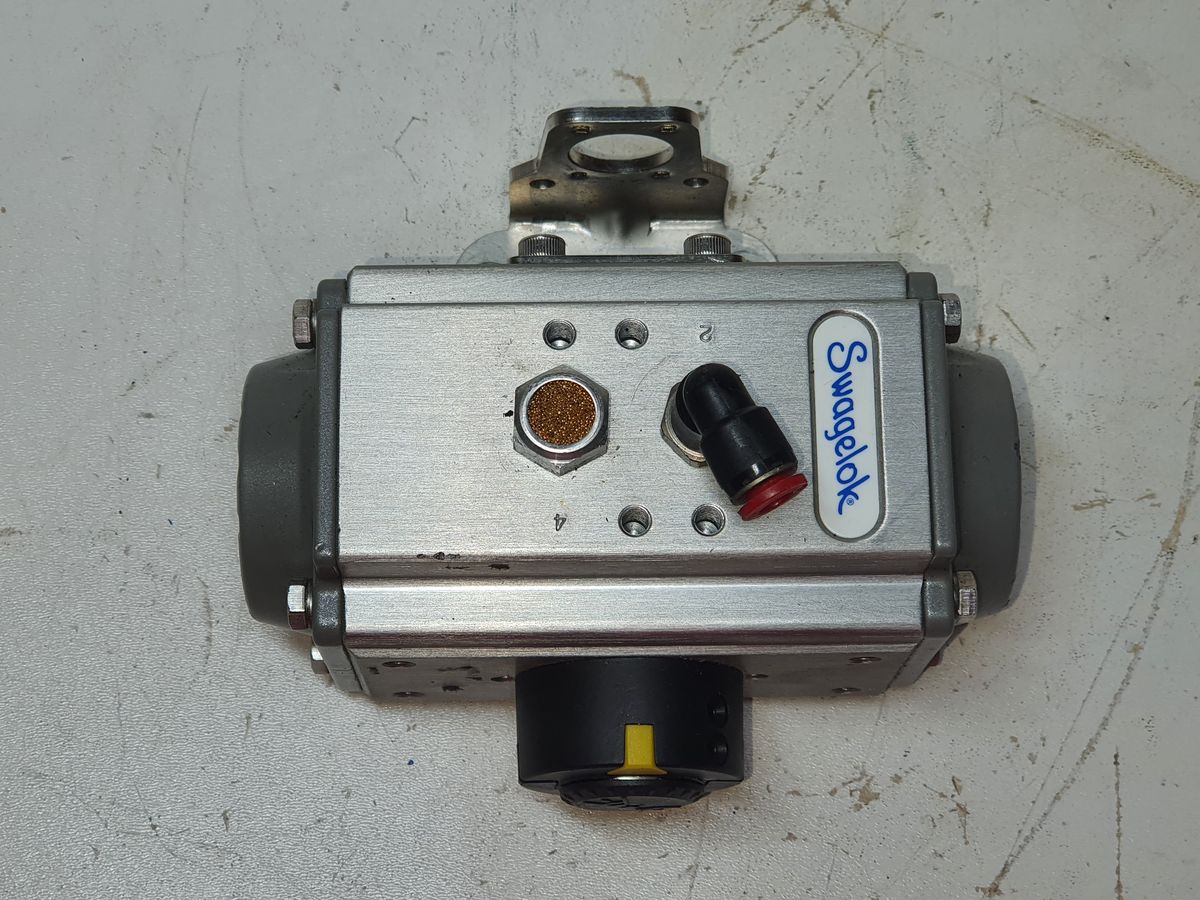

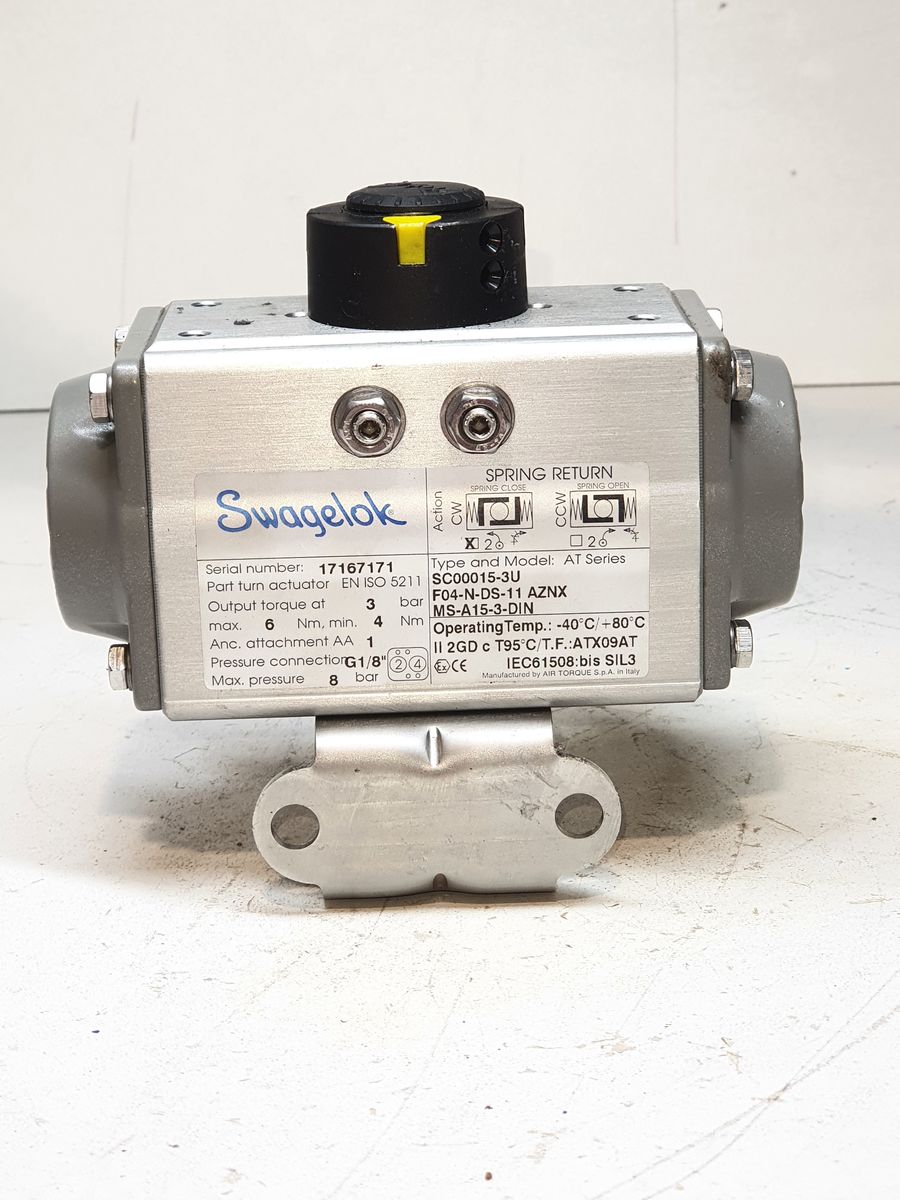

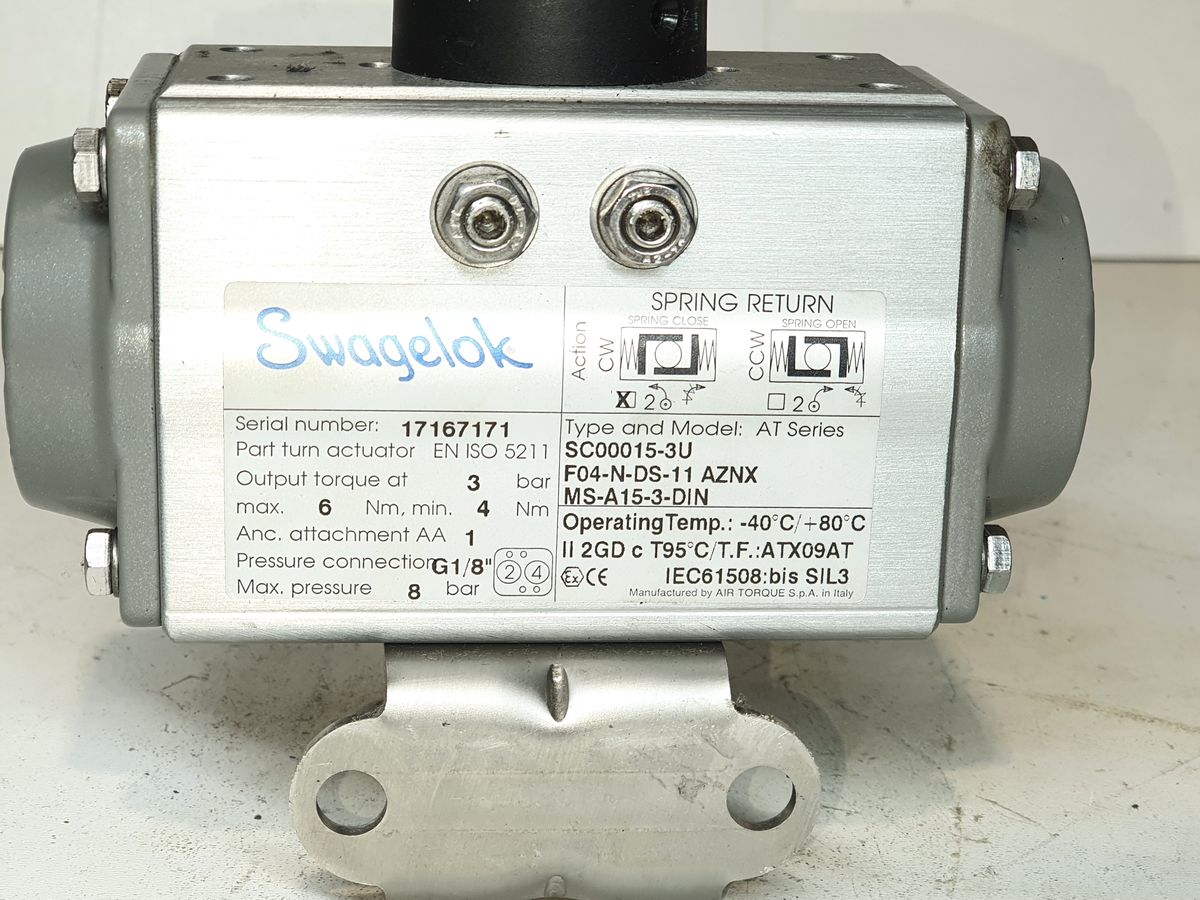

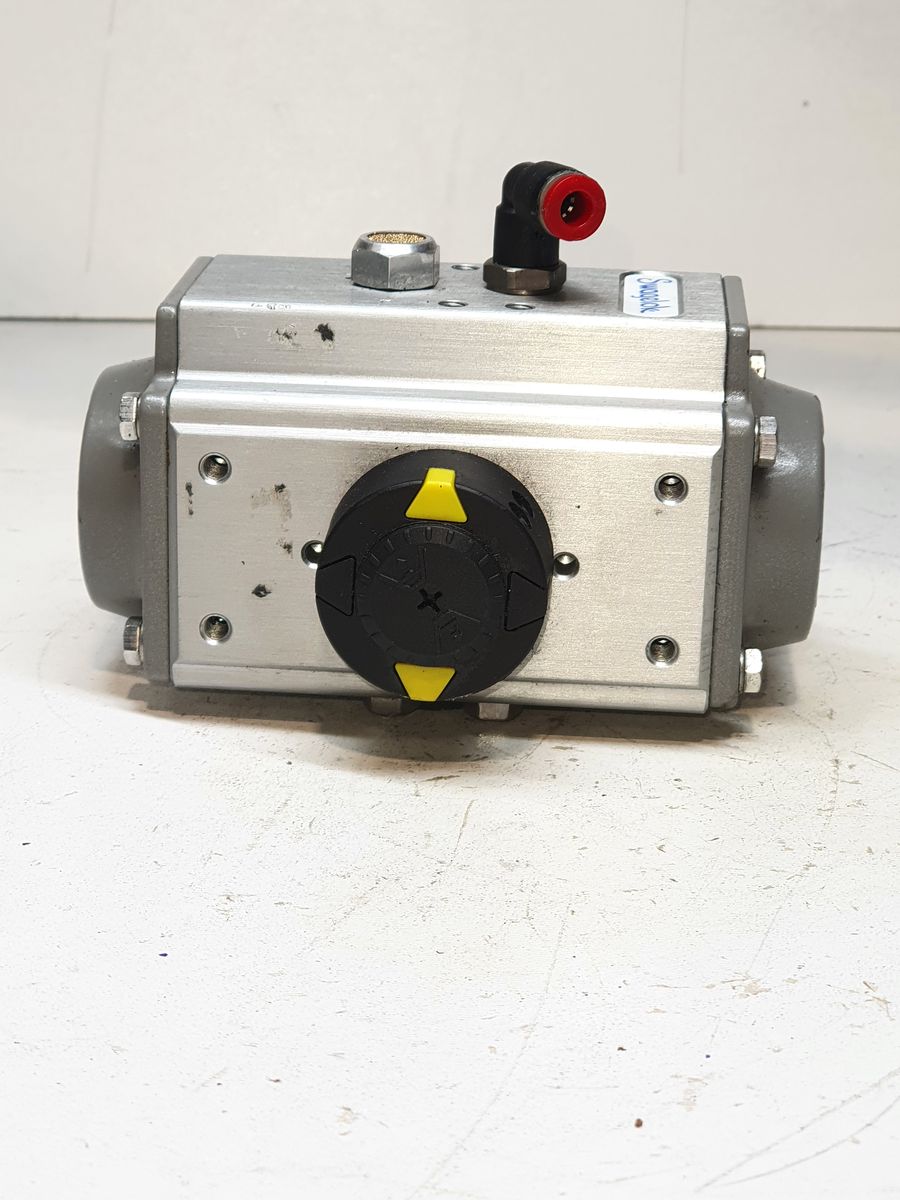

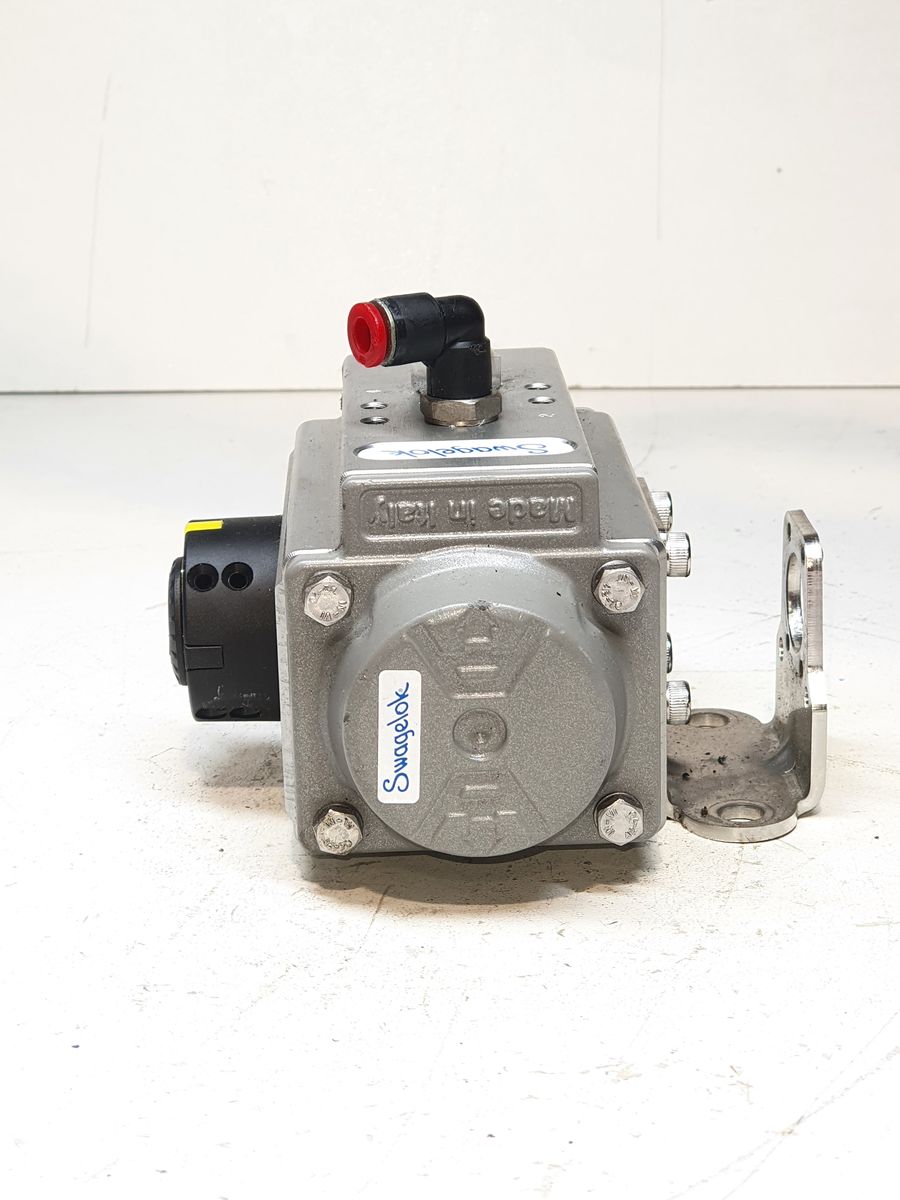

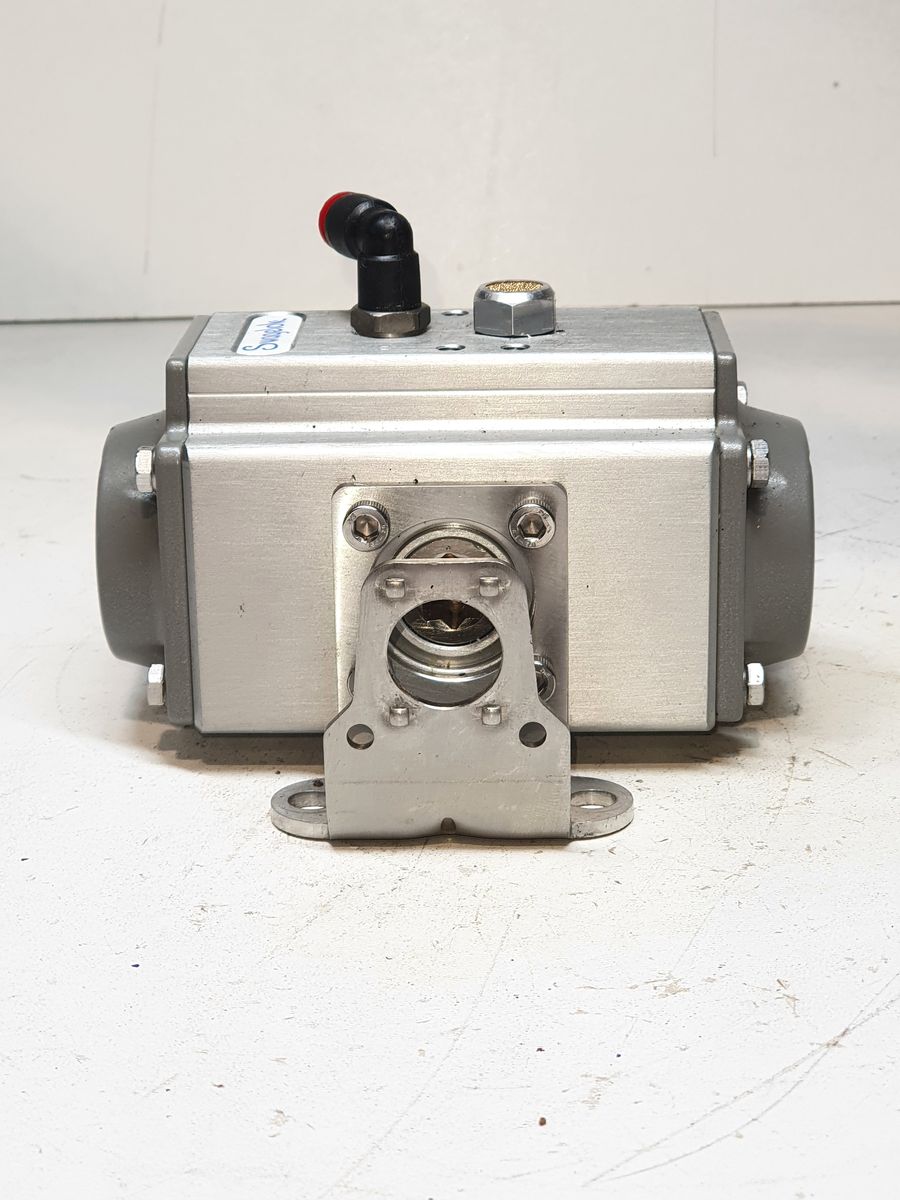

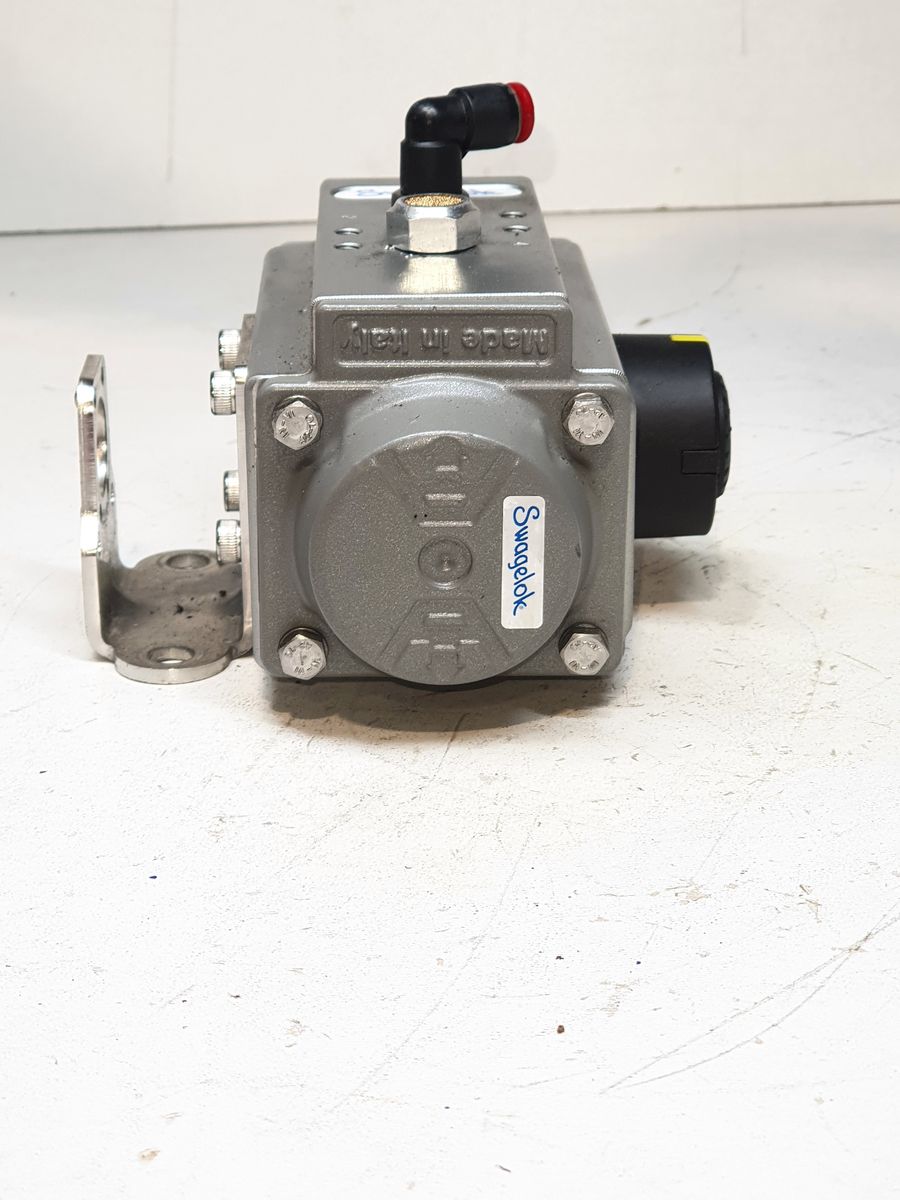

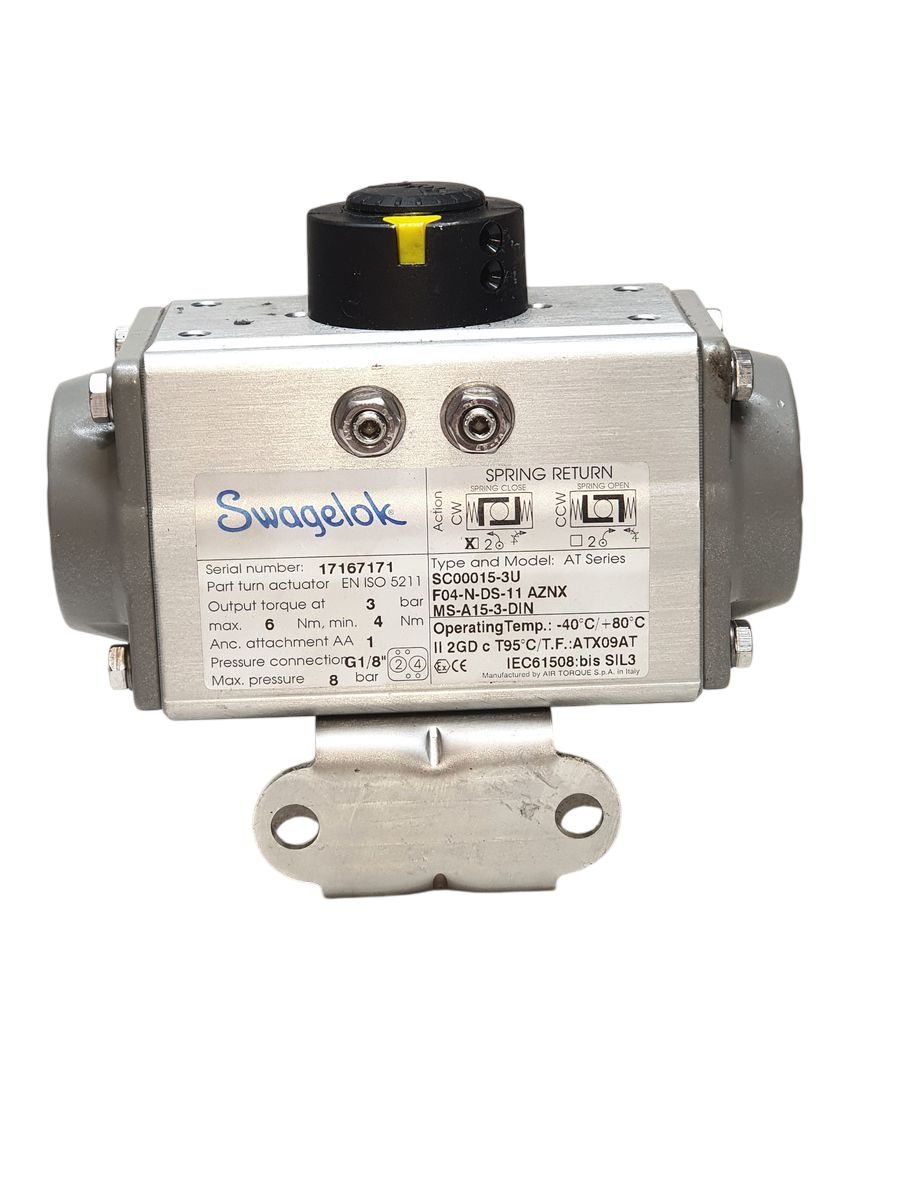

Swagelok SC00015-3U Pneumatic Actuator

Category	Parameter
Manufacturer	Air Torque S.p.A. (Italy)
Brand / Series	Swagelok AT Series
Type	Pneumatic part-turn actuator
Operation	Spring return (spring close / spring open)
Rotation Angle	90° (quarter turn)
Output Torque	Minimum: 4 NmMaximum: 6 Nm
Maximum Operating Pressure	8 bar
Air Connection	G 1/8"
Mounting Standard	EN ISO 5211
Ambient Temperature Range	−40 °C to +80 °C
ATEX Classification	II 2GD c T95°C / T.F. ATX09 AT
Safety Integrity Level	IEC 61508 – SIL 3
