Transformadores

Tecnotrafo 220842NRG02

SKU: 44001

En Stock

Seleccionar Condición

New

Excl. IVA: €100,00 (1 disponible)

IVA incluido: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado 6 meses

Usado 3 meses

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descripción

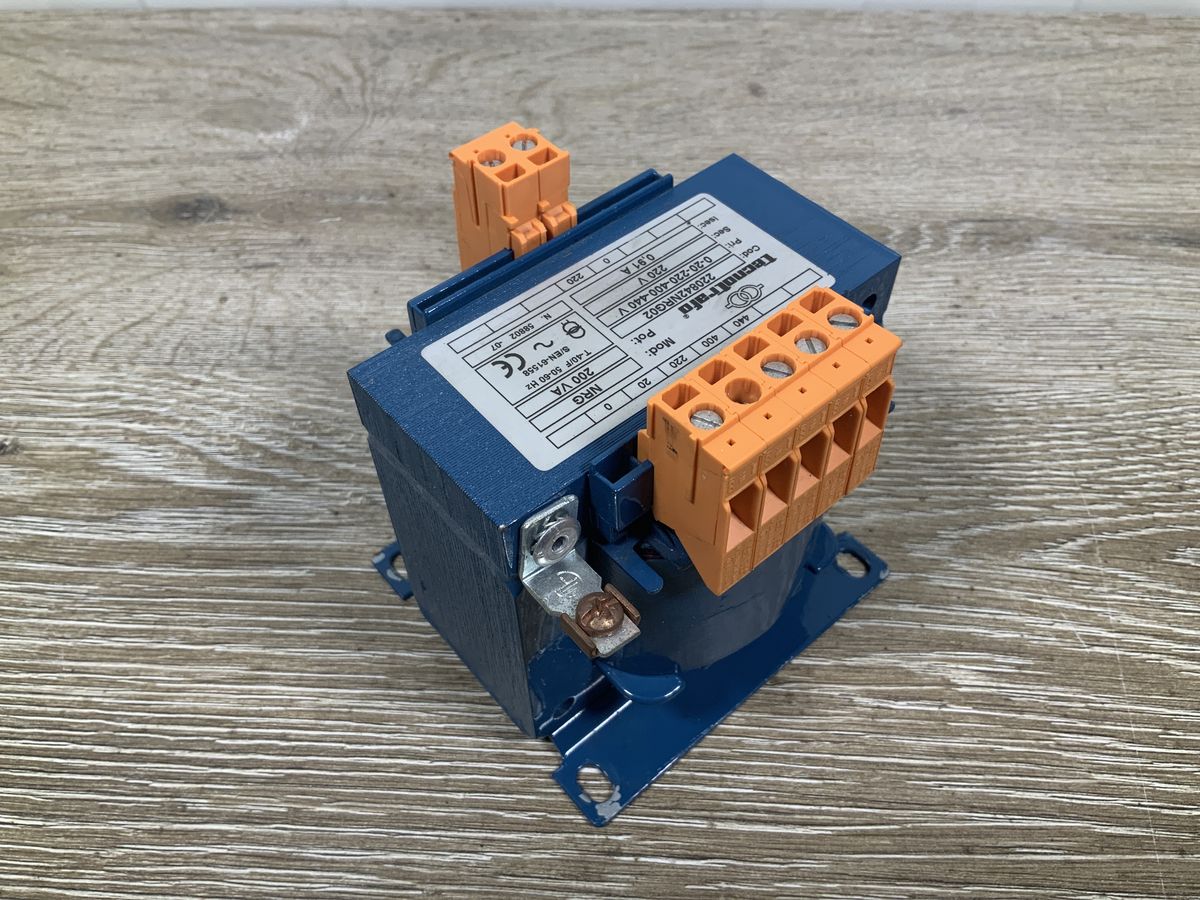

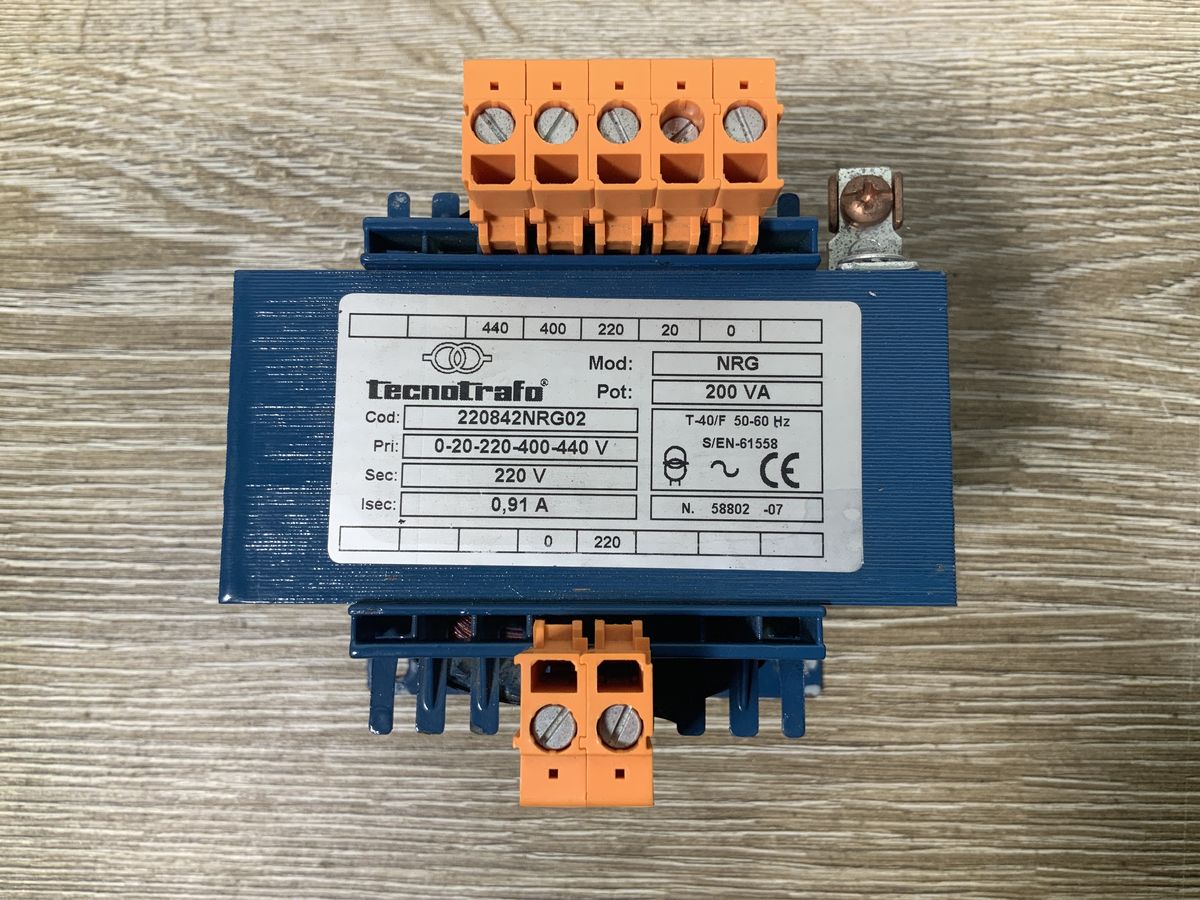

The Tecnotrafo 220842NRG02 is a 200 VA single-phase industrial control transformer. It features multi-tap primary voltage inputs for 0-20-220-400-440 V and a secondary output voltage of 220 V at 0.91 A. Designed for panel and control box installation, it includes top and bottom screw-terminal connection blocks.

Specifications – 220842NRG02

Parameter	Specification
Power Rating	200 VA
Primary Voltage	0-20-220-400-440 V
Secondary Voltage	220 V
Secondary Current	0.91 A
Frequency	50-60 Hz
Temperature / Insulation Class	T-40/F
Standard	EN-61558
