Tescom 44-1165-24-023
SKU: 8019
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

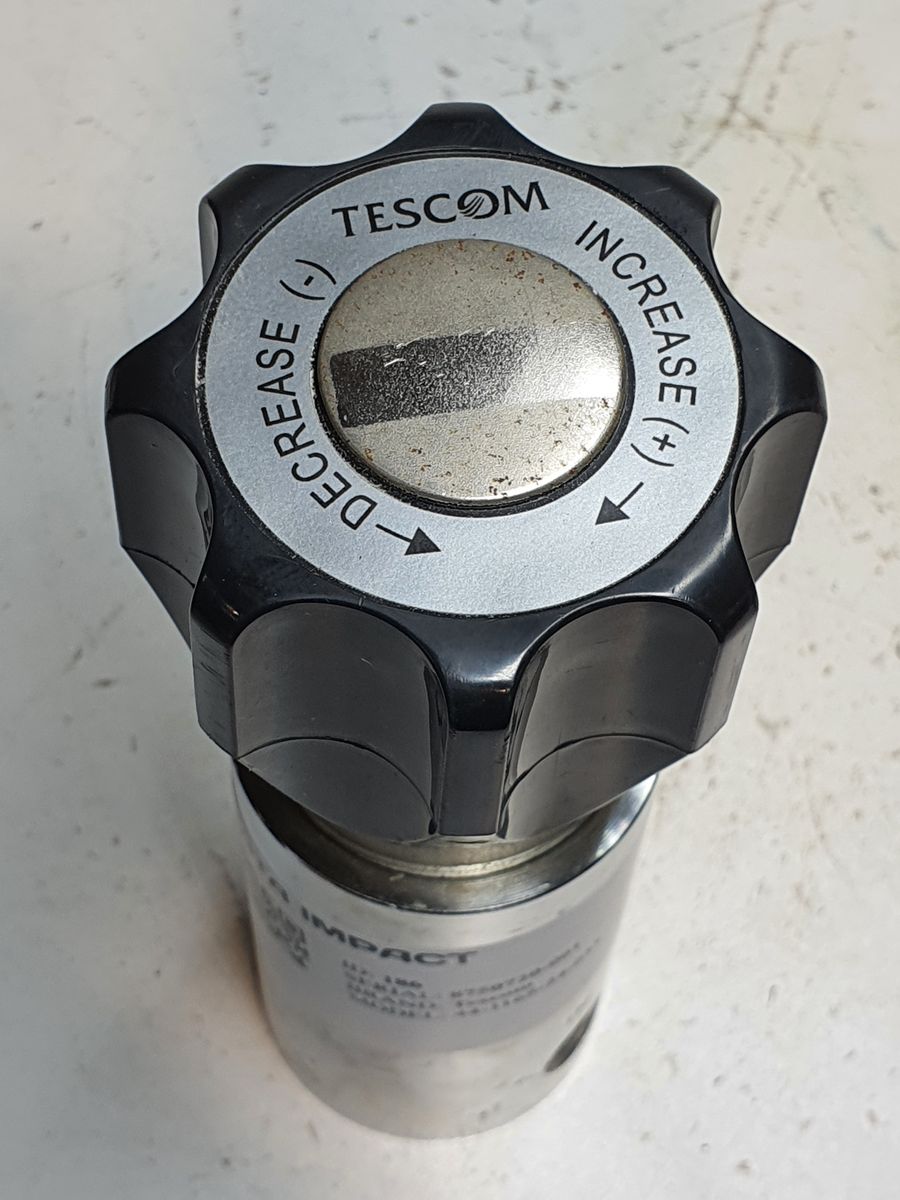

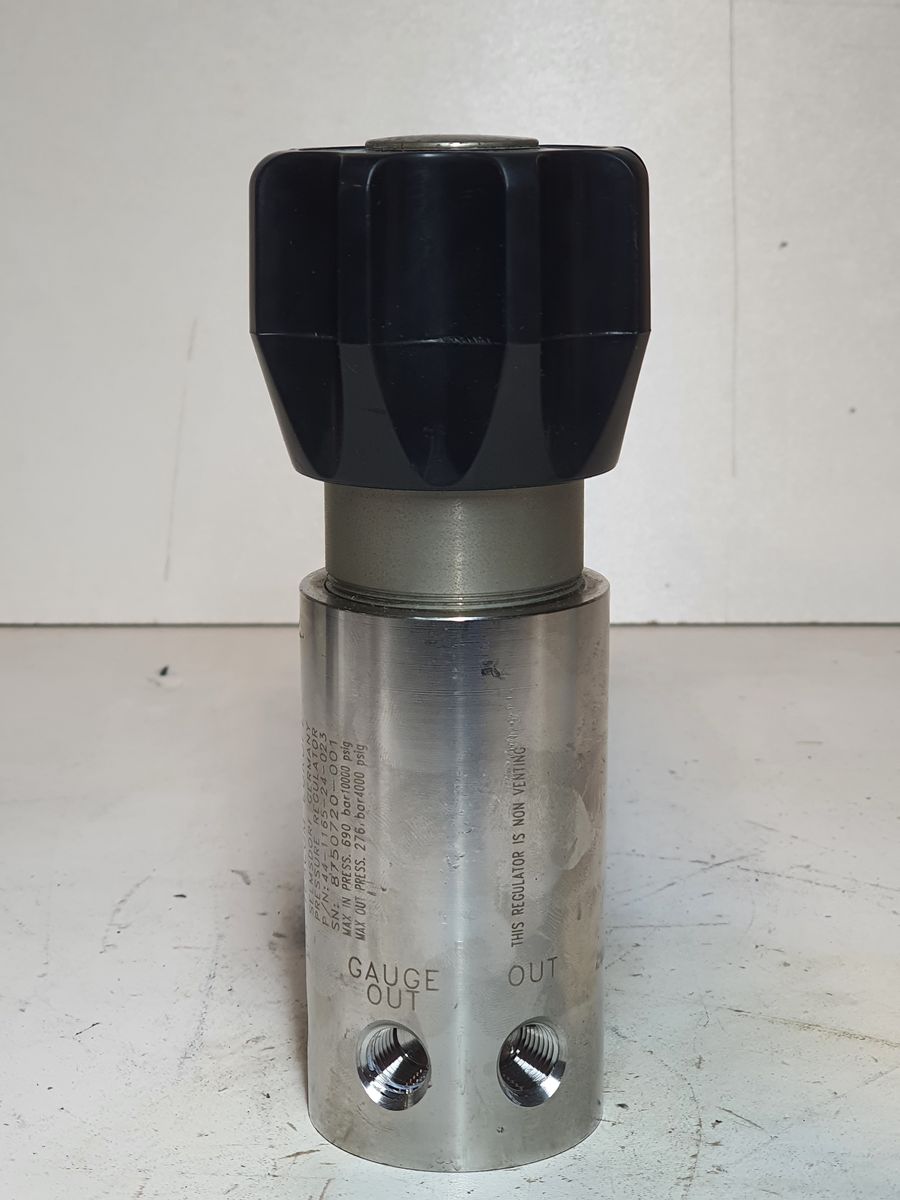

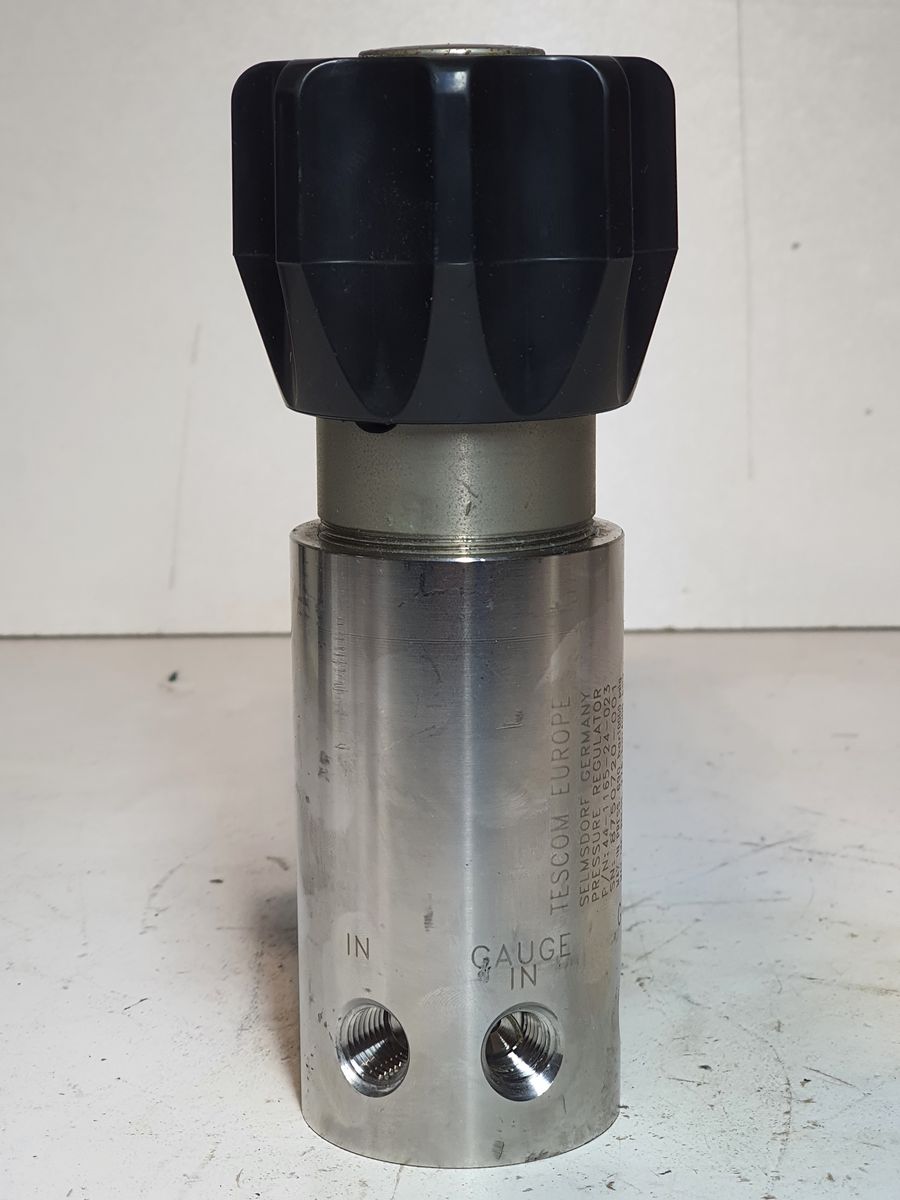

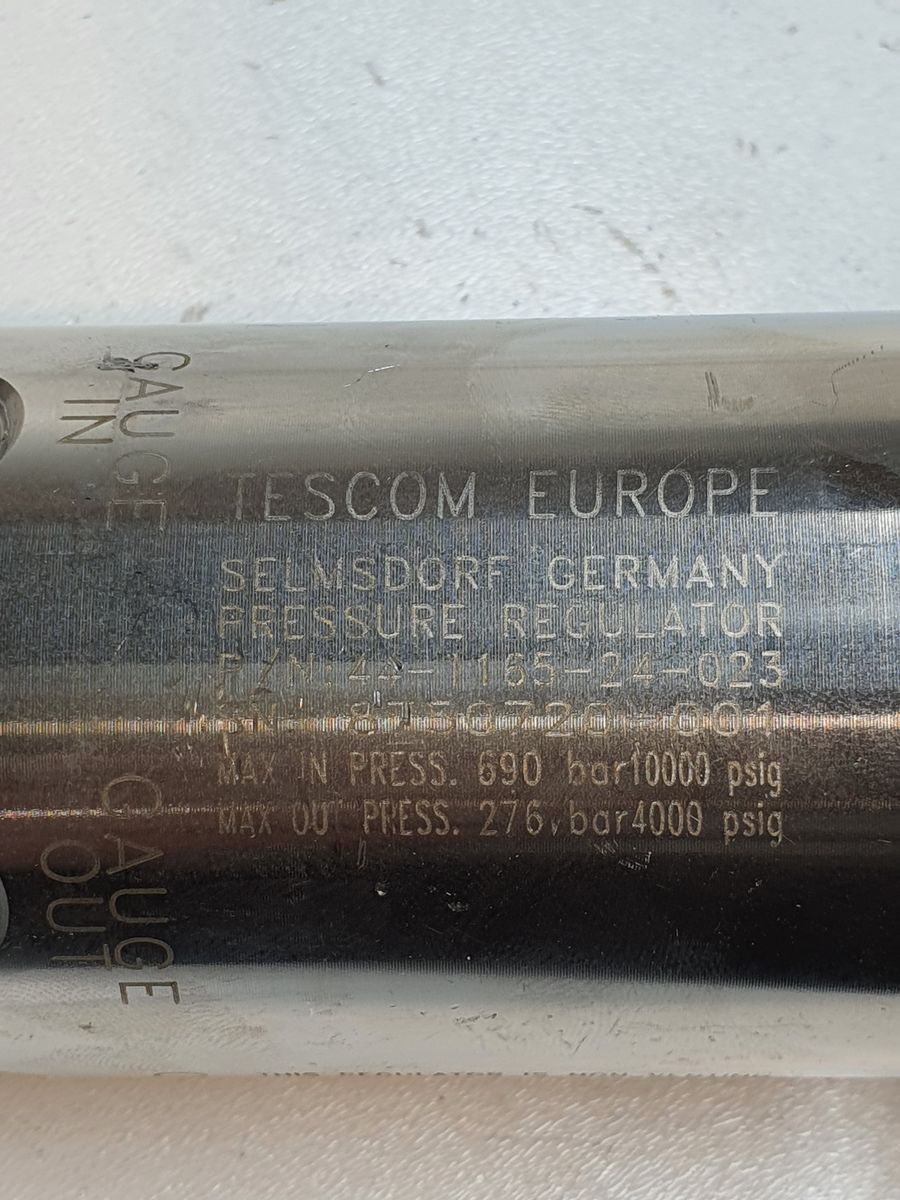

TESCOM 44-1165-24-023
Specification Table
| Parameter | Details |
|---|---|
| Series | TESCOM 44-1100 Series Pressure Regulator Control |
| Model / Part Number | 44-1165-24-023 |
| Function | Pressure Reducing Regulator (Venting Type) |
| Maximum Inlet Pressure (Stainless Steel Body) | 10,000 psig (690 bar) |
| Maximum Outlet Pressure | 4,000 psig (276 bar) |
| Design Proof Pressure | 150% of maximum rated pressure |
| Leakage | Bubble-tight |
| Operating Temperature | –40°F to 165°F (–40°C to 75°C) |
| Flow Capacity (Cv) | 0.06 |
| Maximum Operating Torque | Approx. 35 in-lb (3.95 N·m) |
| Body Material | 316 Stainless Steel |
| Main Valve Seat Material | Polyimide (Vespel®) |
| Vent Valve Seat Material | CTFE |
| O-Ring Material | Buna-N |
| Back-Up Ring Material | PTFE |
| Filter Material | 15 μm nominal (316 Stainless Steel) |
| Remaining Internal Parts | 300 Series Stainless Steel |
| Port Size & Type | 1/4″ NPTF (female) |
| Load Type | Spring-loaded |
| Weight (Approx.) | 4.8 lb (2.2 kg) |
| Standard Features | Piston-sensed design, vent-to-zero capability, inlet and outlet gauge ports |
×
![]()
