Reguladores

Tescom 26-1767-24-176

SKU: 8011

En Stock

Usado
Procedente de un entorno de trabajo

Excl. IVA: €320,00 (2 disponible)

IVA incluido: €387,20

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

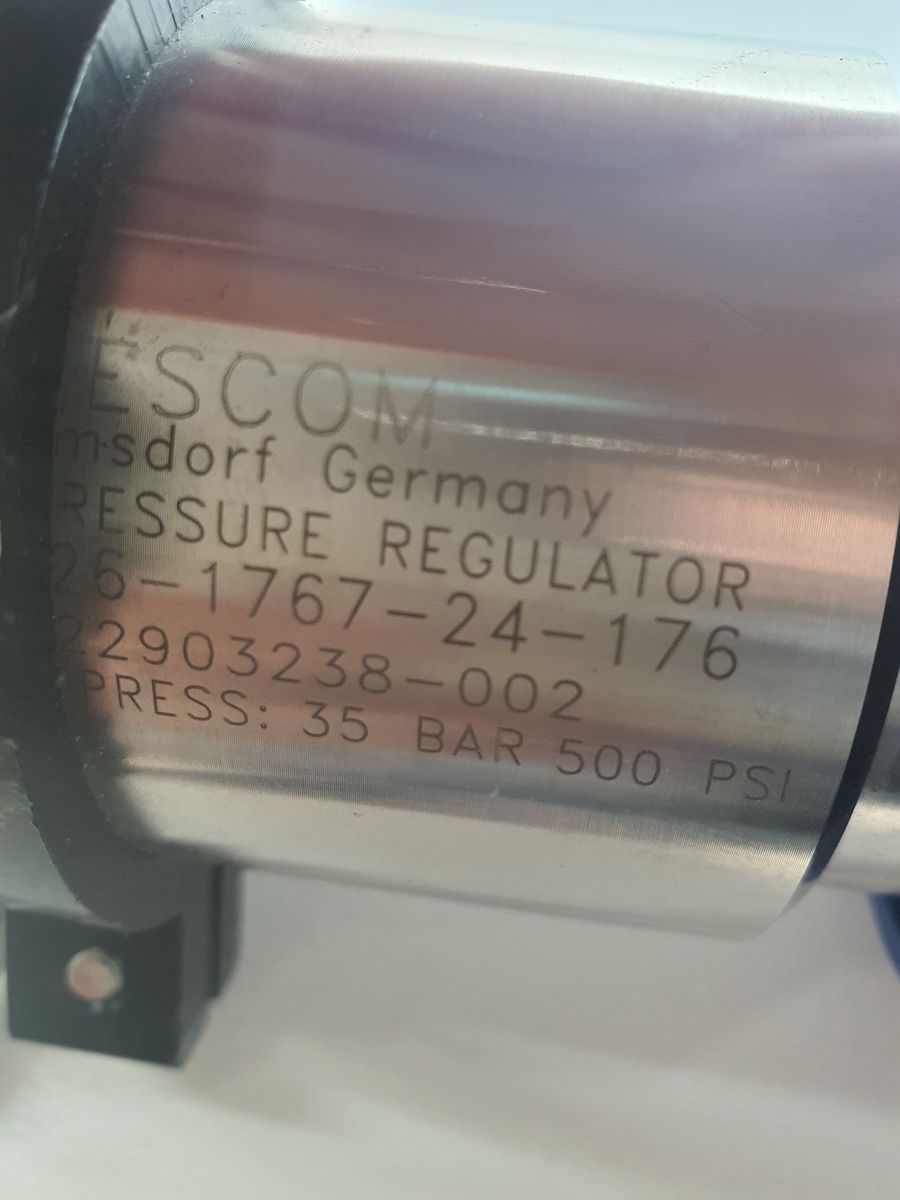

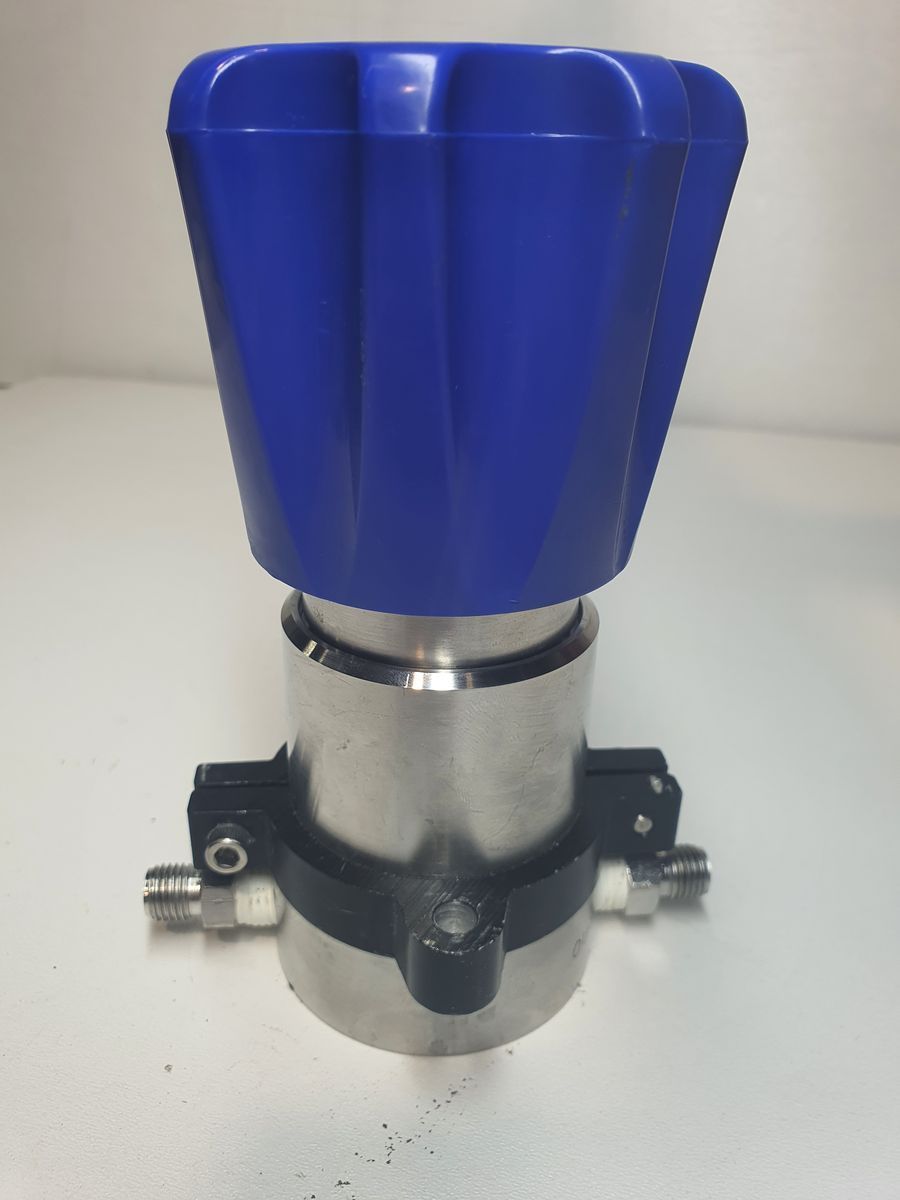

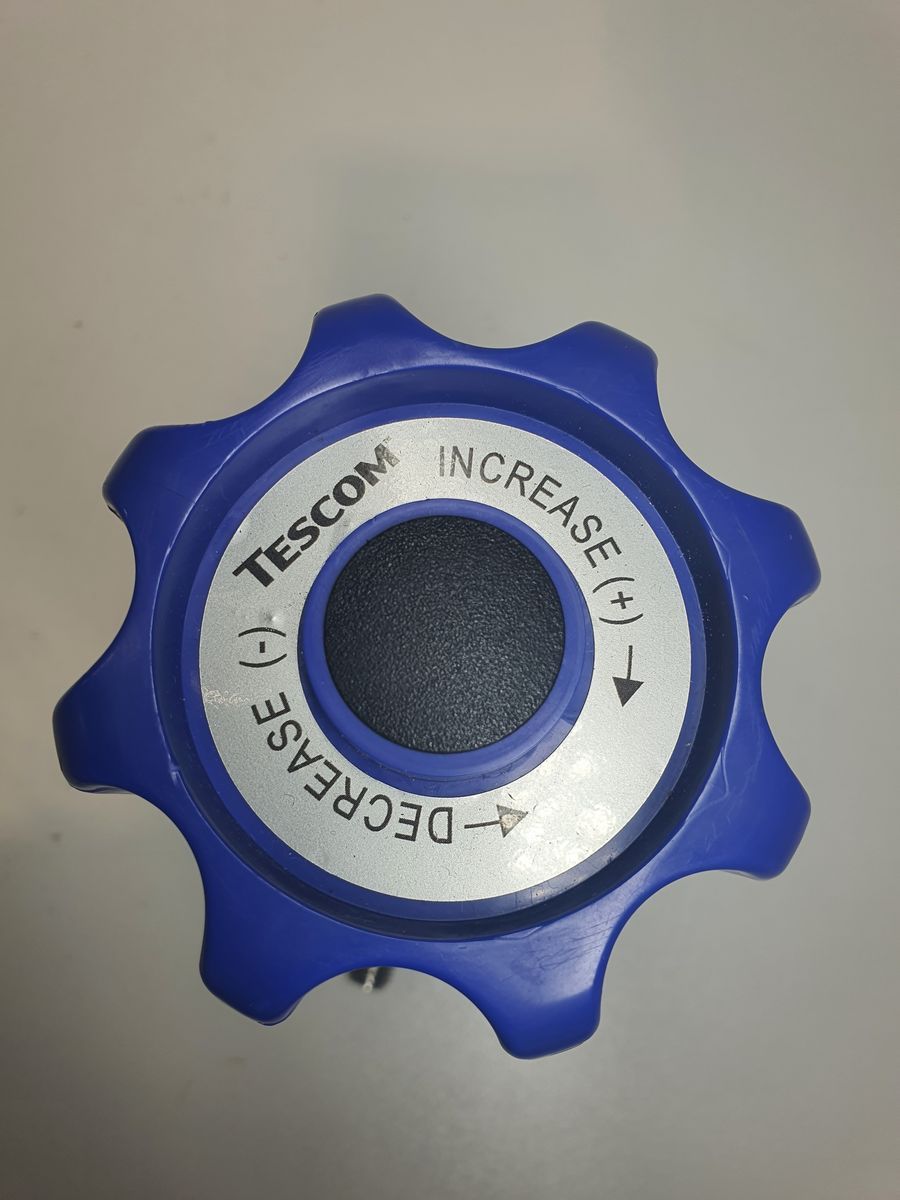

Tescom Selmsdorf Germany 26-1767-24-176 Pressure regulator

Category	Parameter
Regulator Type	Controlled pressure-reducing regulator
Series	TESCOM 26-1700
Model	26-1767-24-176
Maximum Inlet Pressure	10,000 psig (689 bar)
Adjustable Outlet Pressure Range	5–500 psig (0.35–34.5 bar)
Body Material	316 Stainless Steel
Internal Lining Material	300-series Stainless Steel
Seat Material	CTFE
Seal Material	CTFE
O-Rings	Buna-N (nitrile)
Backup Rings	PTFE
Port Size	1/4″
Port Type	NPTF
Operating Temperature Range	−40 °F to +165 °F (−40 °C to +74 °C)
Flow Coefficient	Cv ≈ 0.14
Leakage	Bubble-tight (zero leakage)
Proof / Test Pressure	150 % of maximum rated
Weight	~2.2 kg
