LGW 3 A2
Interruptores

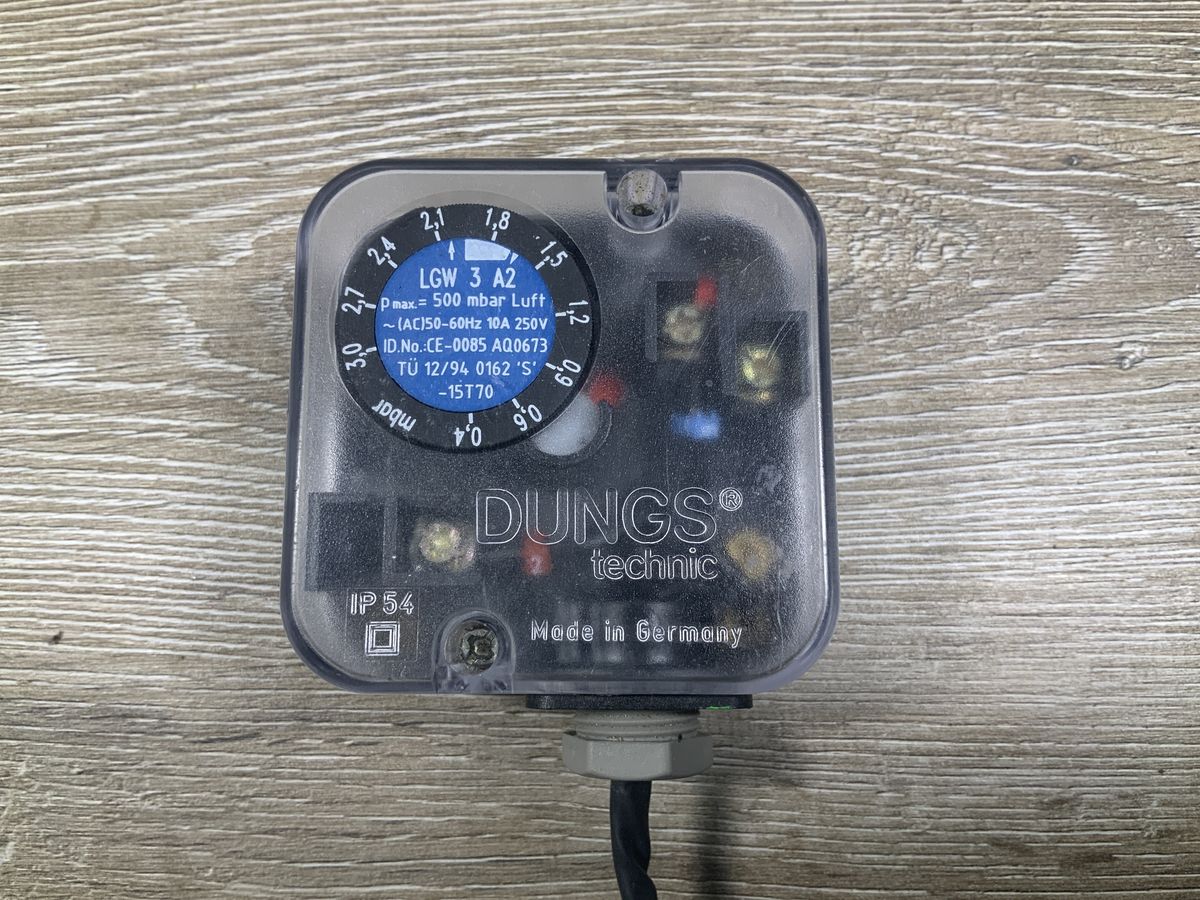

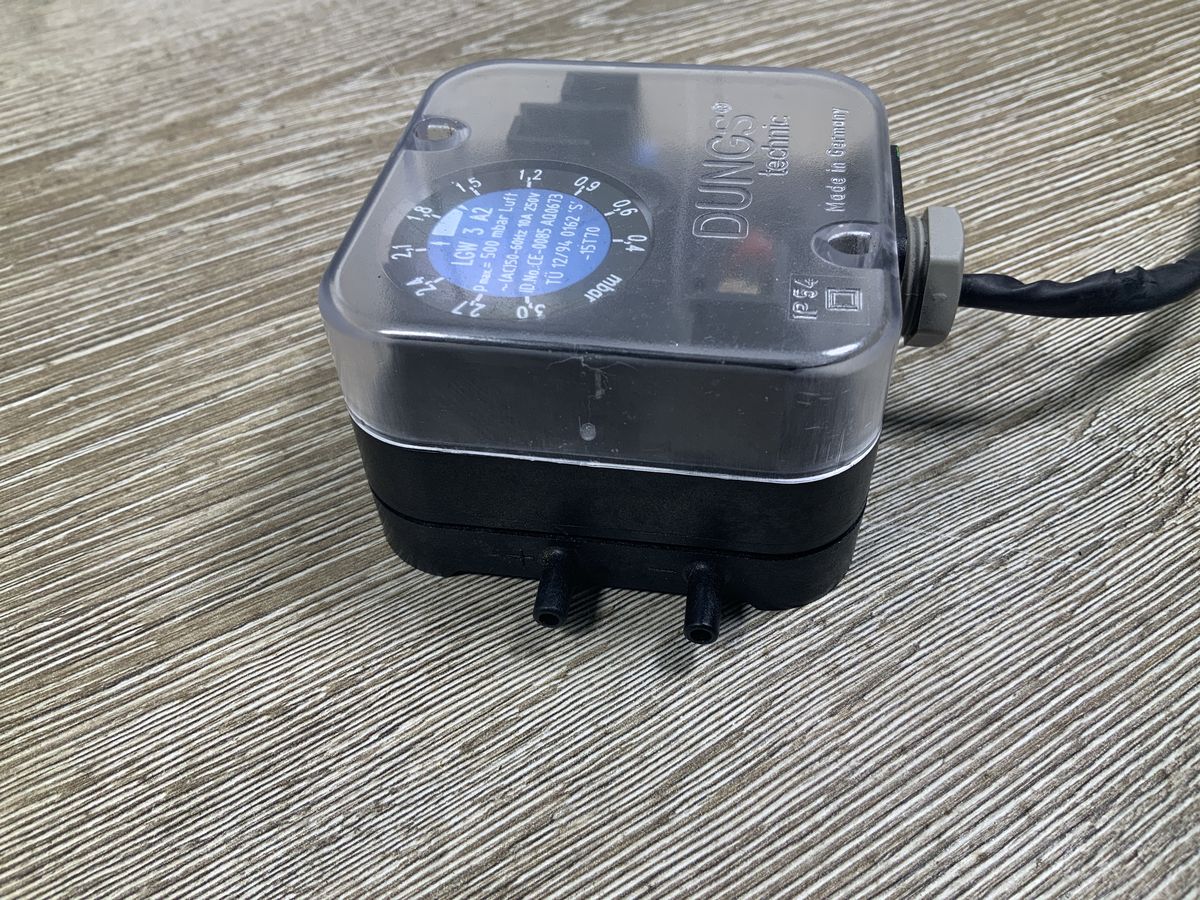

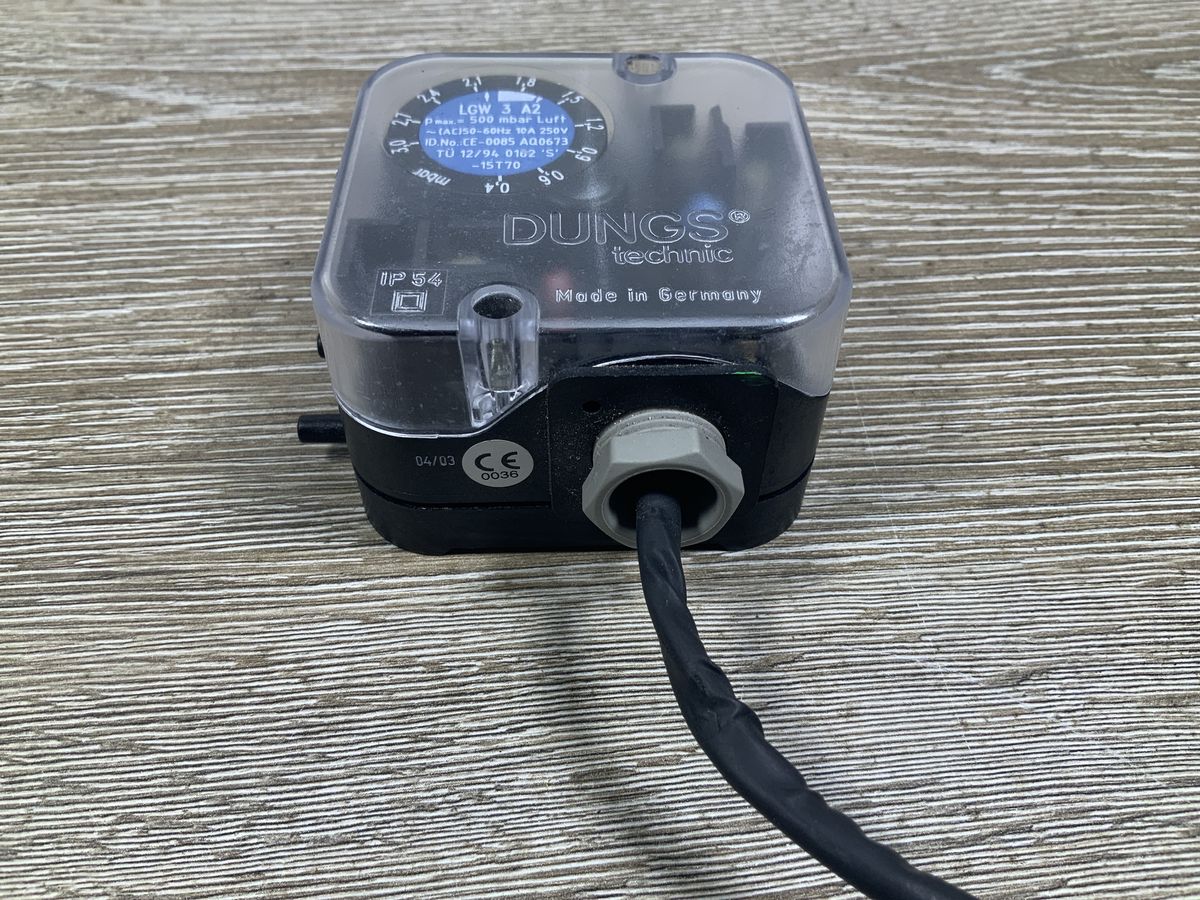

Dungs LGW 3 A2

SKU: 22002
En Stock

Seleccionar Condición

Condición
Precio
Cantidad
Acción
Used
Excl. IVA: €35,00 (2 disponible)
IVA incluido: €42,35
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Períodos de Garantía por Condición
Nueva 12 meses
Reacondicionado 6 meses
Usado 3 meses
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website
The Dungs LGW 3 A2 is an adjustable differential pressure switch designed for air and non-aggressive gas monitoring in combustion and HVAC systems. It features an adjustable dial scale from 0.4 to 3.0 mbar and a maximum operating pressure rating of 500 mbar. The unit is built into an IP54 rated housing with standard nozzle tube connections.

Specifications – LGW 3 A2

Parameter Specification
Pressure Range 0.4 - 3.0 mbar
Max. Pressure 500 mbar
Voltage / Current Rating 250 V AC, 10 A, 50-60 Hz
Protection Class IP 54
Temperature Range -15 °C to +70 °C (-15T70)
×
