Válvulas Solenoides

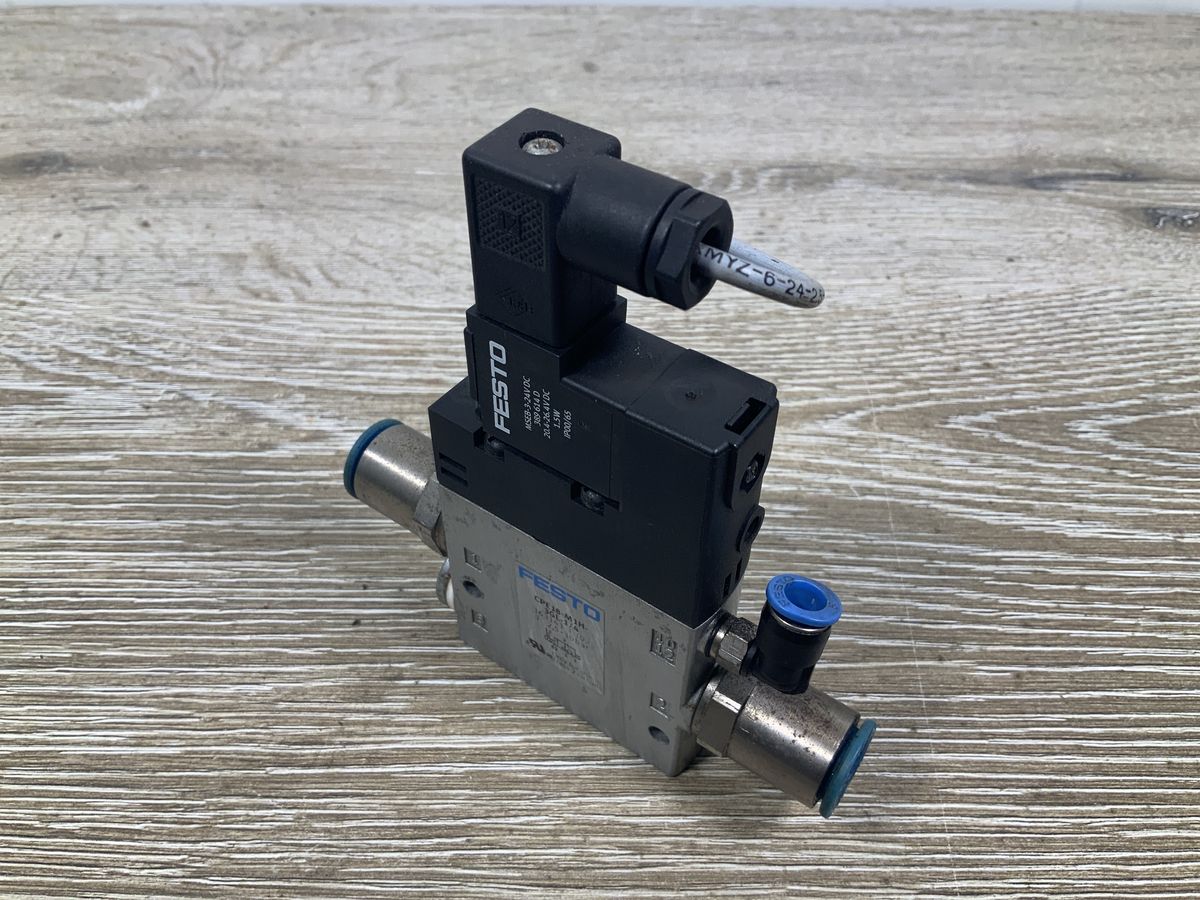

Festo CPE18-M1H-3GL-1/4
SKU: 55002
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.
The Festo CPE18-M1H-3GL-1/4 is a compact 3/2-way in-line solenoid valve designed for pneumatic control automation systems. It operates on 24 V DC power with an operating pressure range of 2.5 to 10 bar and features G 1/4 inch connection ports.
Specifications – CPE18-M1H-3GL-1/4
| Parameter | Specification |
|---|---|
| Part Number | 163141 |
| Operating Pressure | 2.5 - 10 bar |
| Solenoid Voltage | 24 V DC (20.4 - 26.4 V DC) |
| Coil Model | MSEB-3-24V DC |
| Coil Part Number | 389 614 D |
| Power Consumption | 1.5 W |
| IP Rating | IP00/65 |
| Port Size | G 1/4" |
×
![]()
