Módulos AS-Interface
Pepperl+Fuchs VAA-4EA-KF2-ZE/E2
SKU: 42001
En Stock
Información de Garantía
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

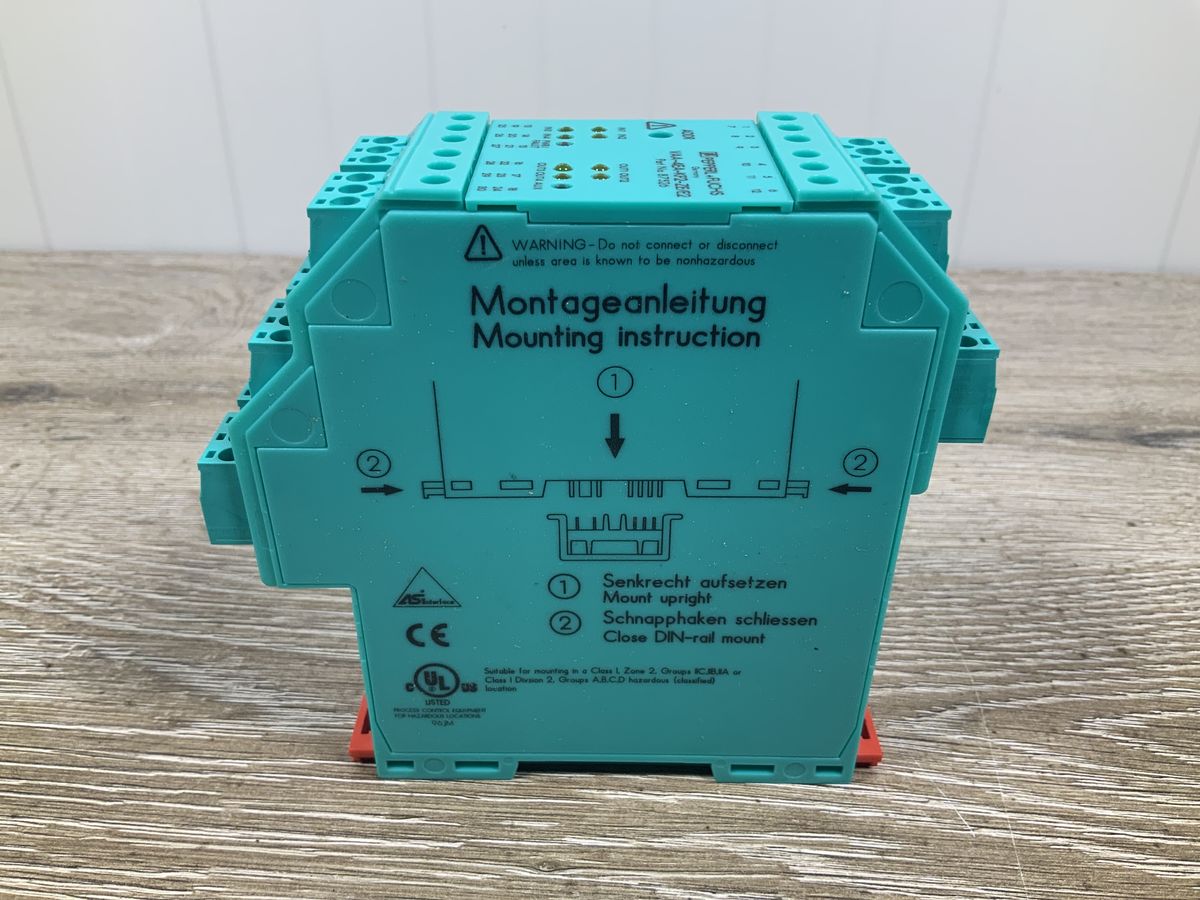

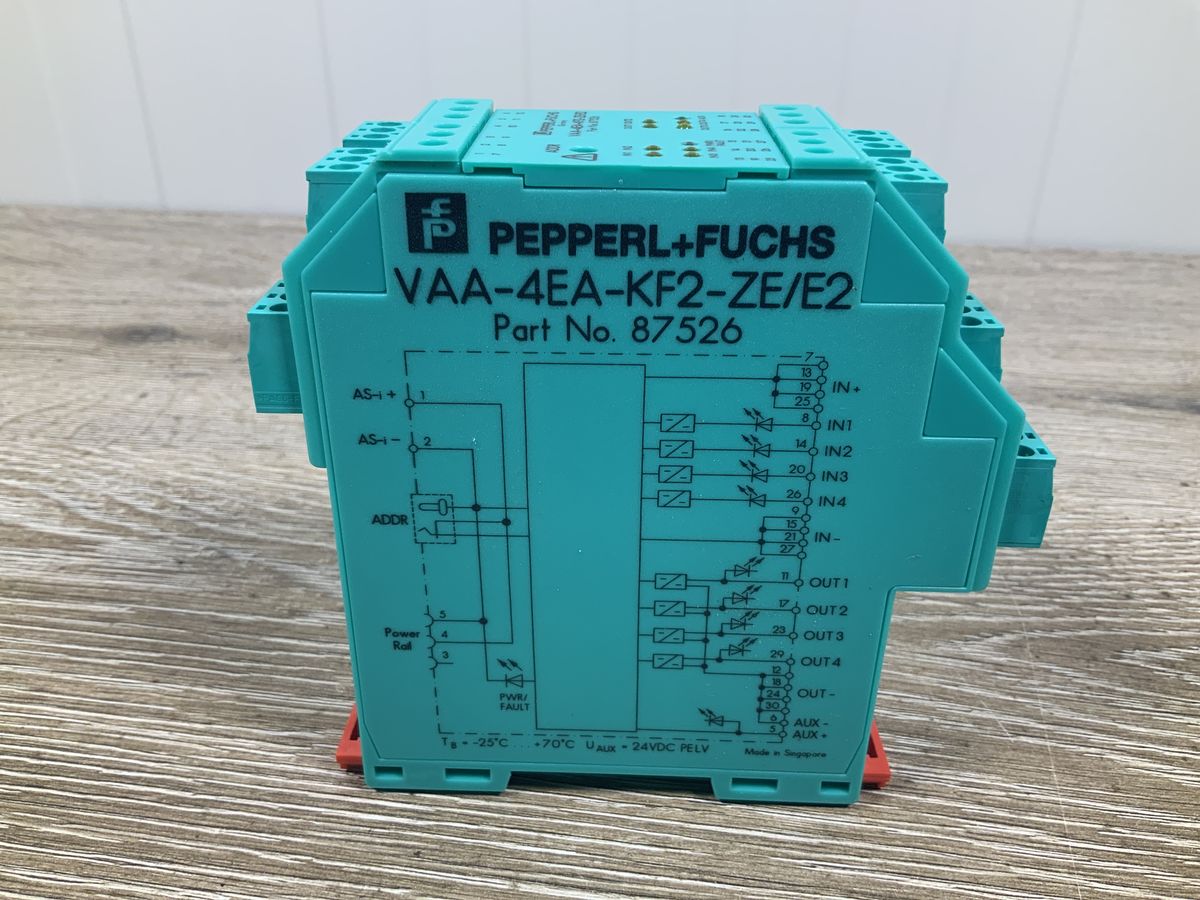

The Pepperl+Fuchs VAA-4EA-KF2-ZE/E2 (Part No. 87526) is an AS-Interface coupling module designed for cabinet and DIN-rail mounting in industrial automation systems. It provides 4 PNP inputs and 4 electronic outputs to connect field sensors and actuators into an AS-i network. The module operates with a 24 V DC auxiliary voltage supply and features coded removable terminal blocks and LED status indicators.
Specifications – VAA-4EA-KF2-ZE/E2
| Parameter | Specification |
|---|---|
| Part Number | 87526 |
| Inputs | 4 (PNP) |
| Outputs | 4 |
| Auxiliary Voltage (U_AUX) | 24 V DC PELV |
| Ambient Temperature Range | -25°C to +70°C |
| Mounting Type | DIN rail |
×
![]()
