Micromaster 440 6SE440-2AB13-7AA1
Reguladores

Siemens - Micromaster 440 6SE440-2AB13-7AA1

SKU: 7007
En Stock

Seleccionar Condición

Condición
Precio
Cantidad
Acción
Used
Excl. IVA: €160,00
IVA incluido: €193,60
1 disponible
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Períodos de Garantía por Condición
Nueva 12 meses
Reacondicionado DOA
Usado DOA
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

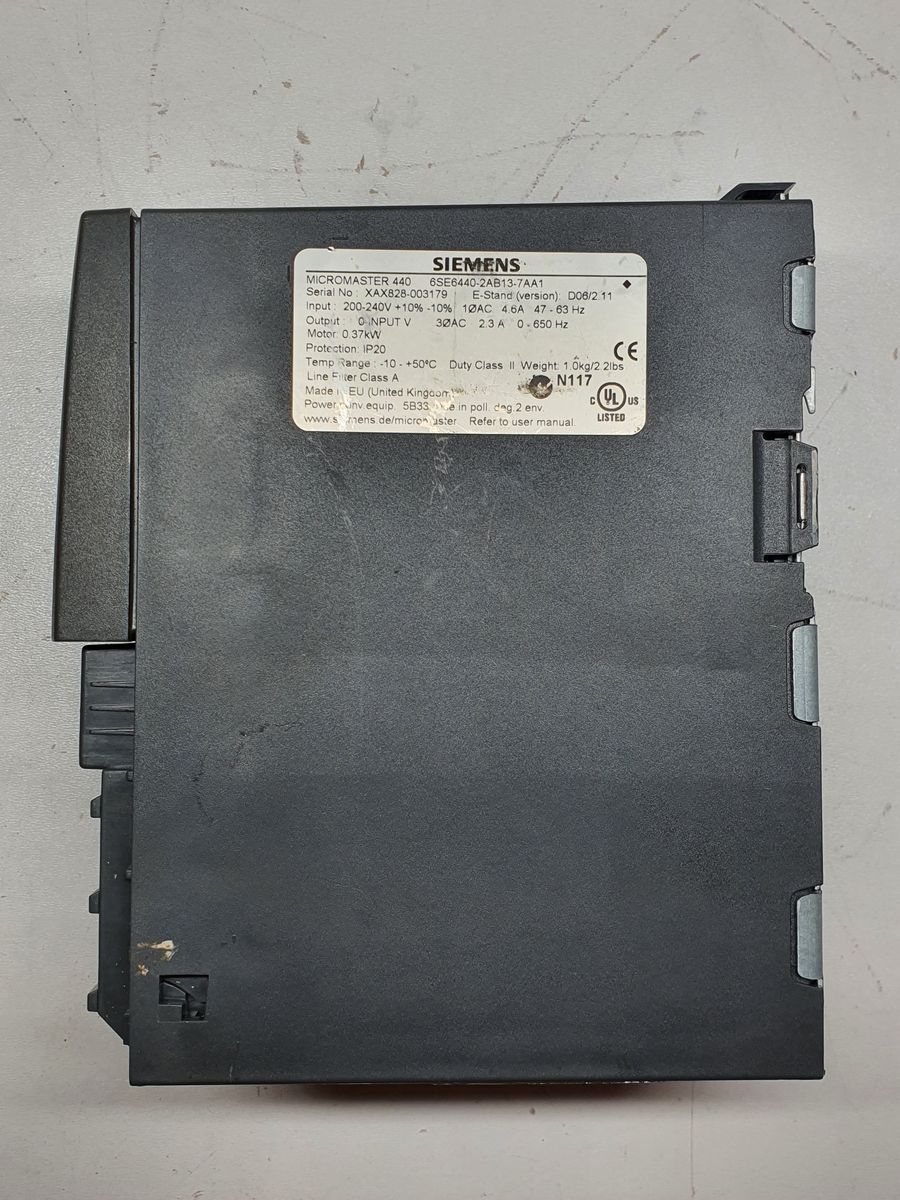

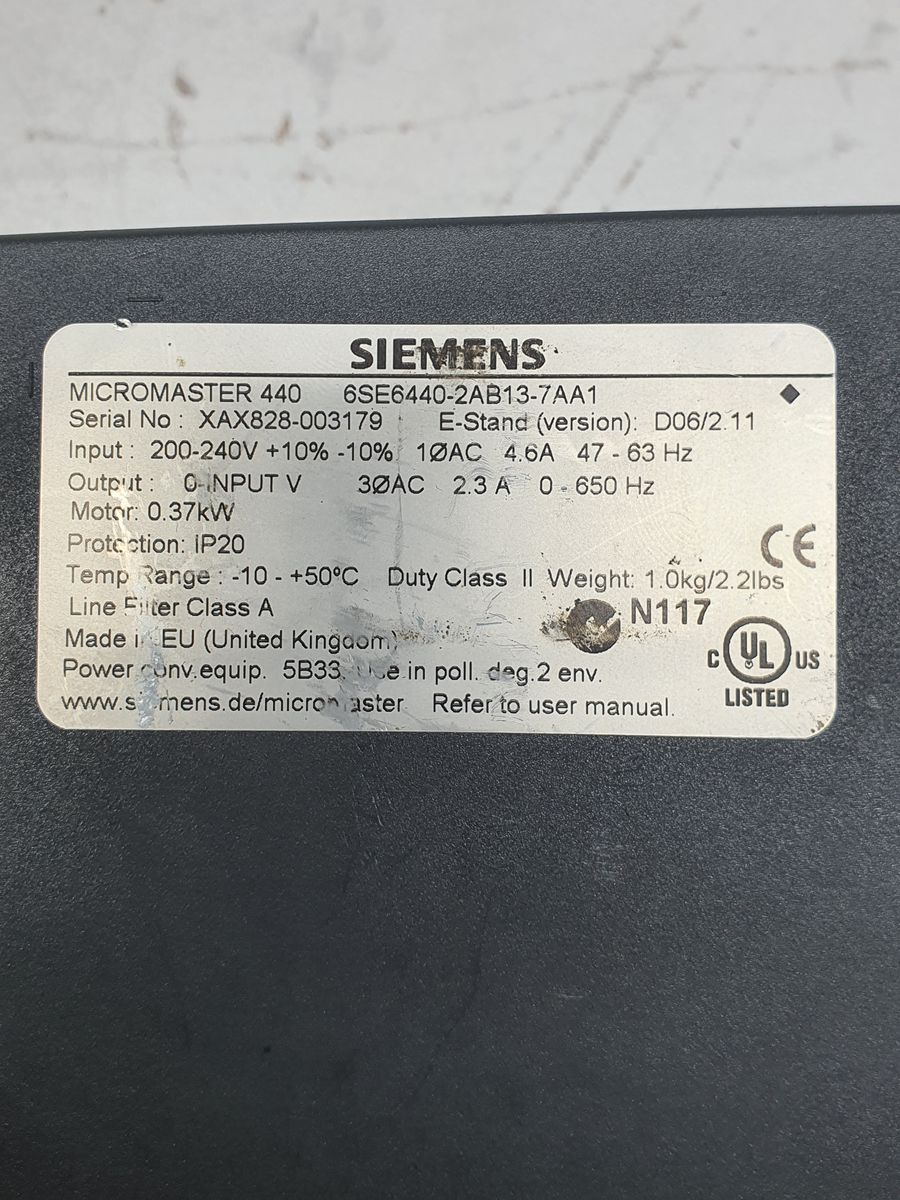

Siemens MICROMASTER 440 Specification Parameter Details Manufacturer Siemens Product Series MICROMASTER 440 Model Number 6SE6440-2AB13-7AA1 Serial Number XAX828-003179 Software / E-Stand Version D06 / 2.11 Input Voltage 200–240 VAC Input Voltage Tolerance +10% / −10% Input Phase 1 Phase AC Input Current 4.6 A Input Frequency 47–63 Hz Output Voltage 0–Input Voltage Output Phase 3 Phase AC Output Current 2.3 A Output Frequency 0–650 Hz Motor Power Rating 0.37 kW Protection Class IP20 Duty Class Class II Ambient Temperature Range −10 °C to +50 °C Line Filter Class Class A Weight 1.0 kg (2.2 lbs) Power Conversion Equipment 5B33 Pollution Degree Degree 2 Enclosure / Environment Industrial Country of Manufacture United Kingdom (EU) Compliance Marks CE, cULus Listed (N117) Documentation Refer to User Manual

Specifications – Micromaster 440 6SE440-2AB13-7AA1

ParameterSpecification
Input Voltage200–240 V AC ±10%
Input Phase1 AC
Input Frequency47–63 Hz
Rated Input Current (HO)4.60 A
Output Voltage240 V (3 AC)
Rated Output Current (HO)2.30 A
Rated Motor Power (HO)0.37 kW / 0.50 hp
Output Frequency0–650 Hz
Degree of ProtectionIP20 / UL open type
Dimensions (H x W x D)173.0 mm x 73.0 mm x 149.0 mm
Net Weight1.30 kg
Ambient Temperature (Operation)-10 to +50 °C
×
